Repair and Diagnosis (Single Page)
›
Engine Performance
›
System
›
Engine Control System (SFI) - Diagnosis
›
Freeze Frame Data
›
List Of Freeze Frame Data
List Of Freeze Frame Data

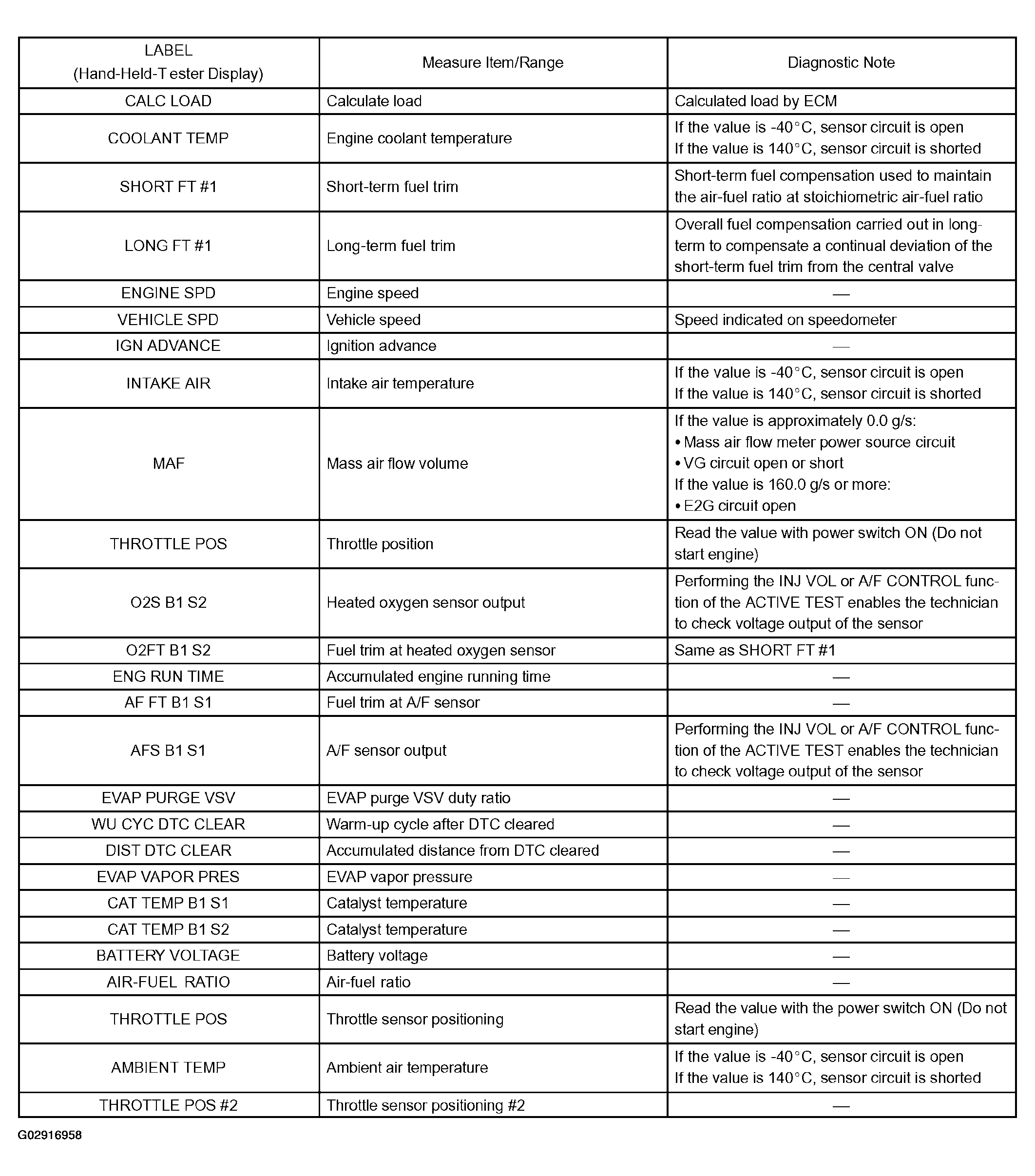

Fig 1: Freeze Frame Data Table (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

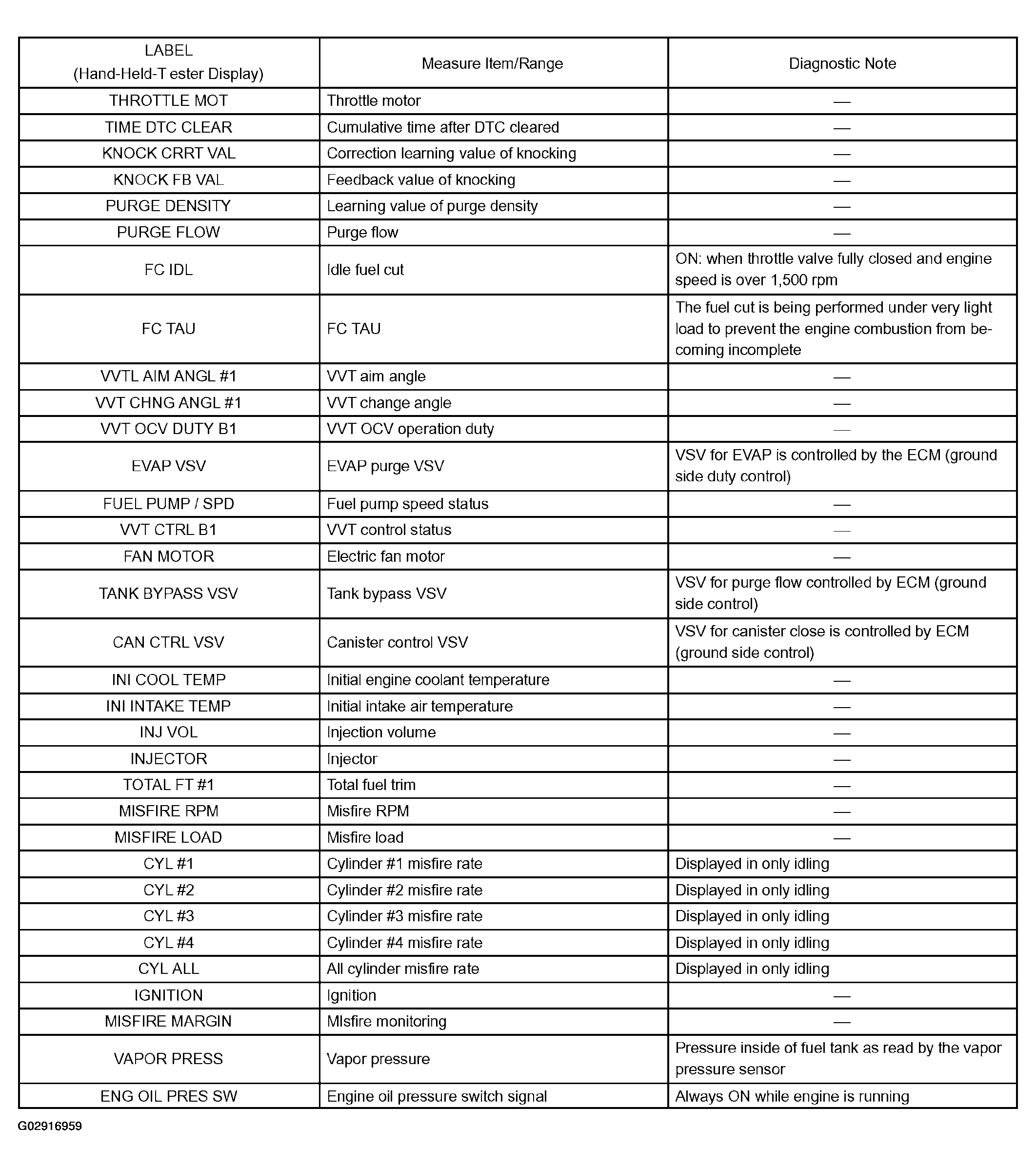

Fig 2: Freeze Frame Data Table (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
