Engine Control System (SFI) - Diagnosis: Location

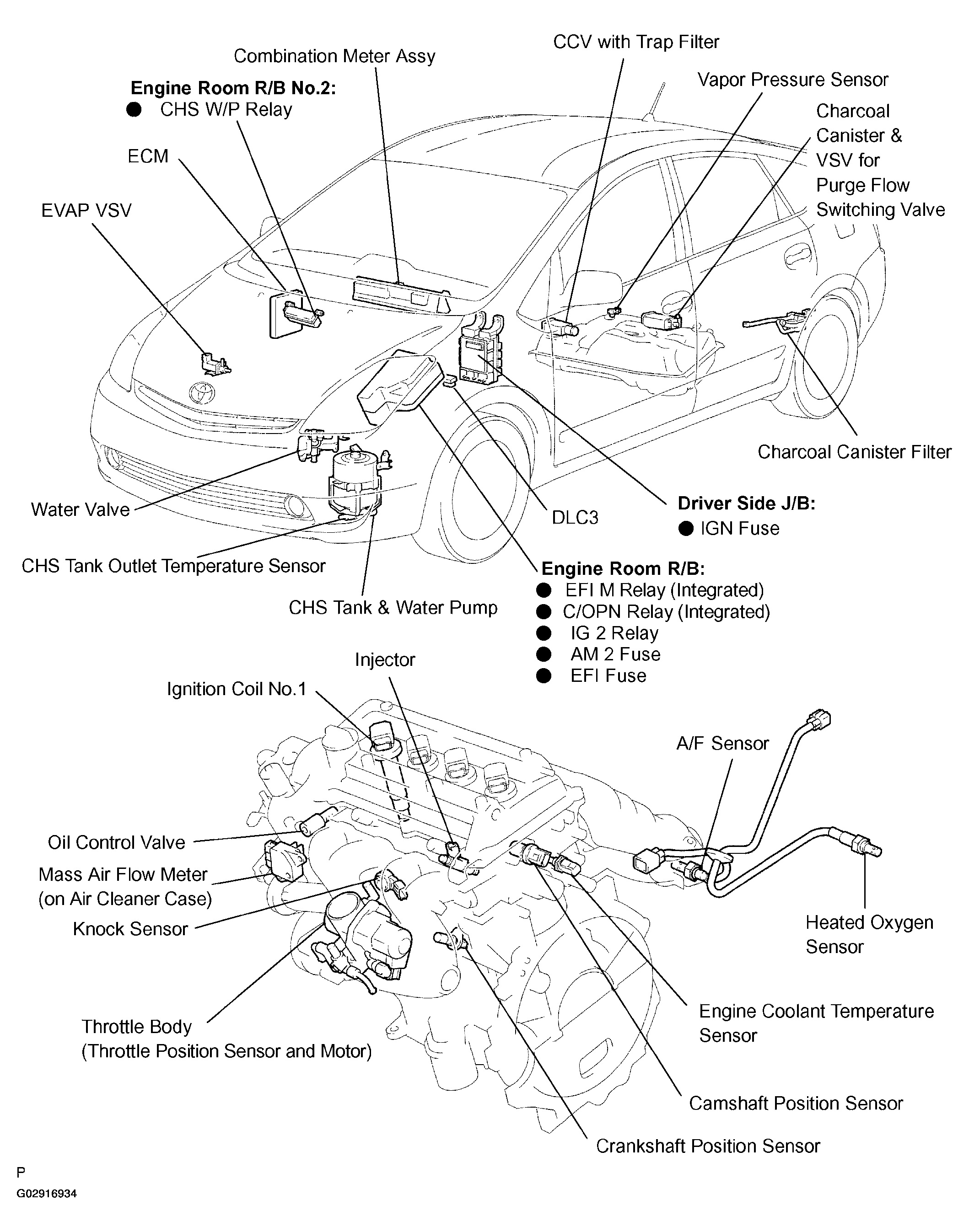

Fig 1: SFI System Components
G02916934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
