Window Defogger System: Location

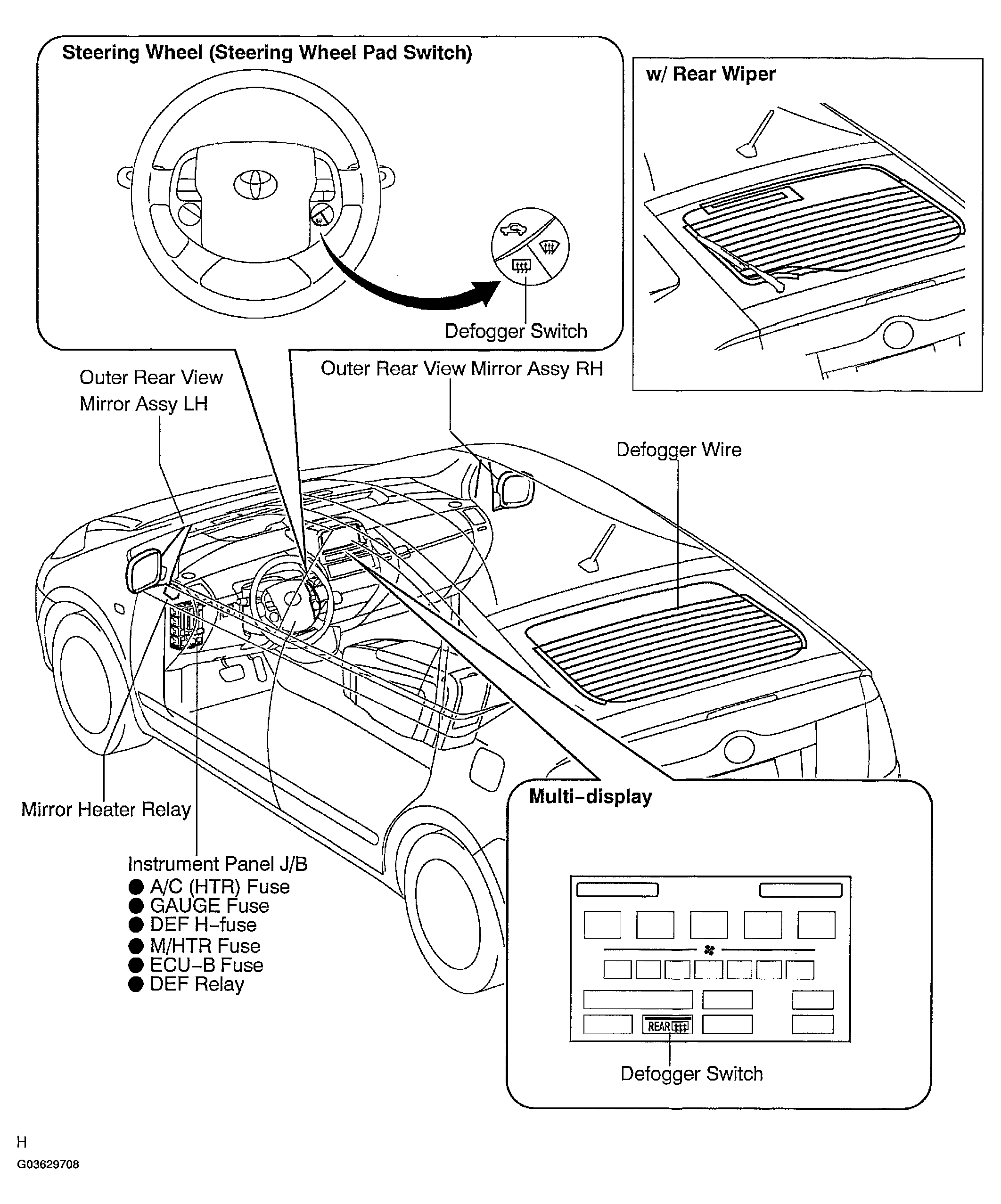

Fig 1: Identifying Window Defogger System Location (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

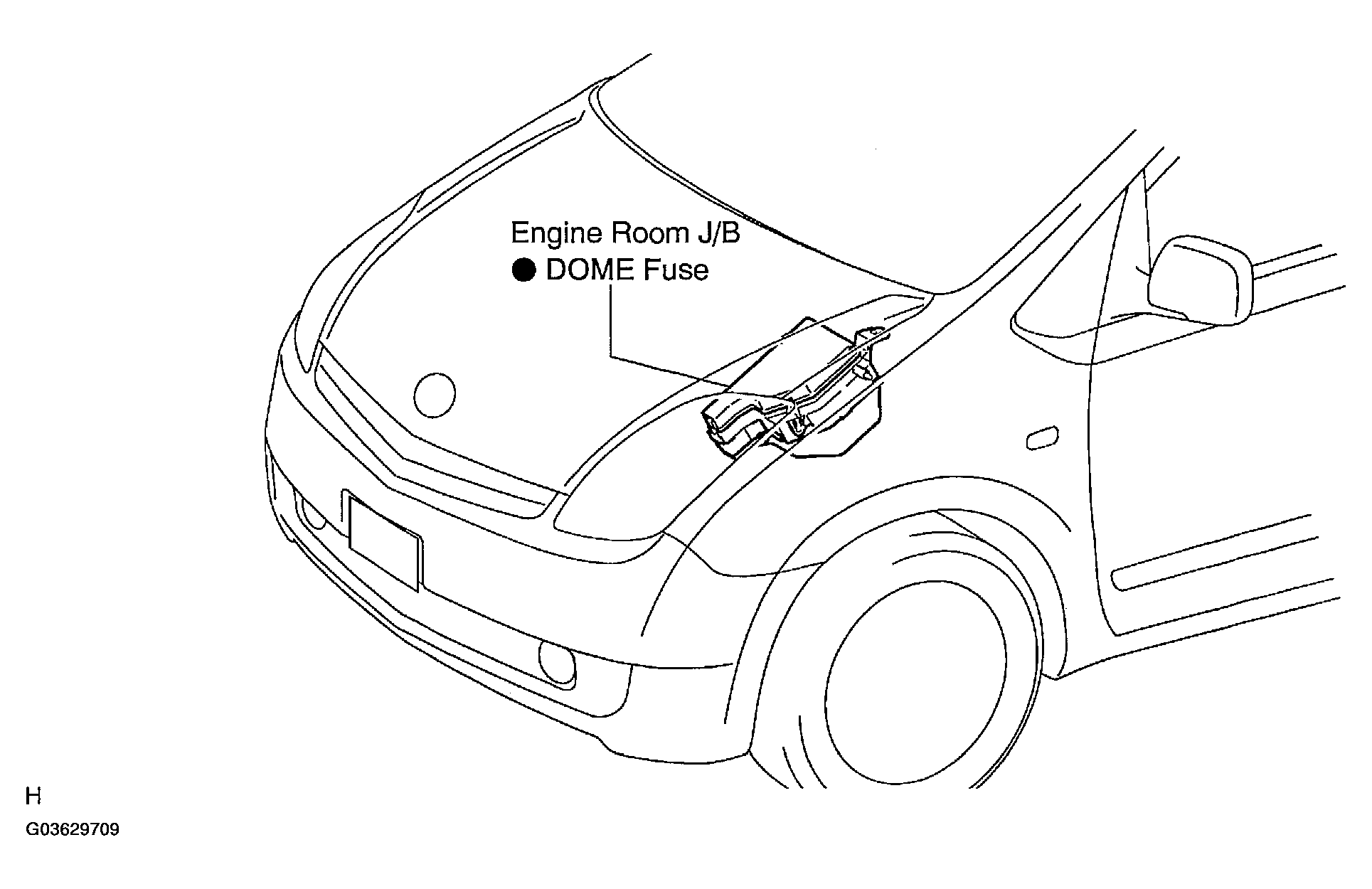

Fig 2: Identifying Window Defogger System Location (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
