Power Window Control System - Diagnosis
›
Auto Up Operation Does Not Fully Close Power Window (Jam Protection Function Is Activated)
›
Wiring Diagram
Auto Up Operation Does Not Fully Close Power Window (Jam Protection Function Is Activated): Wiring Diagram

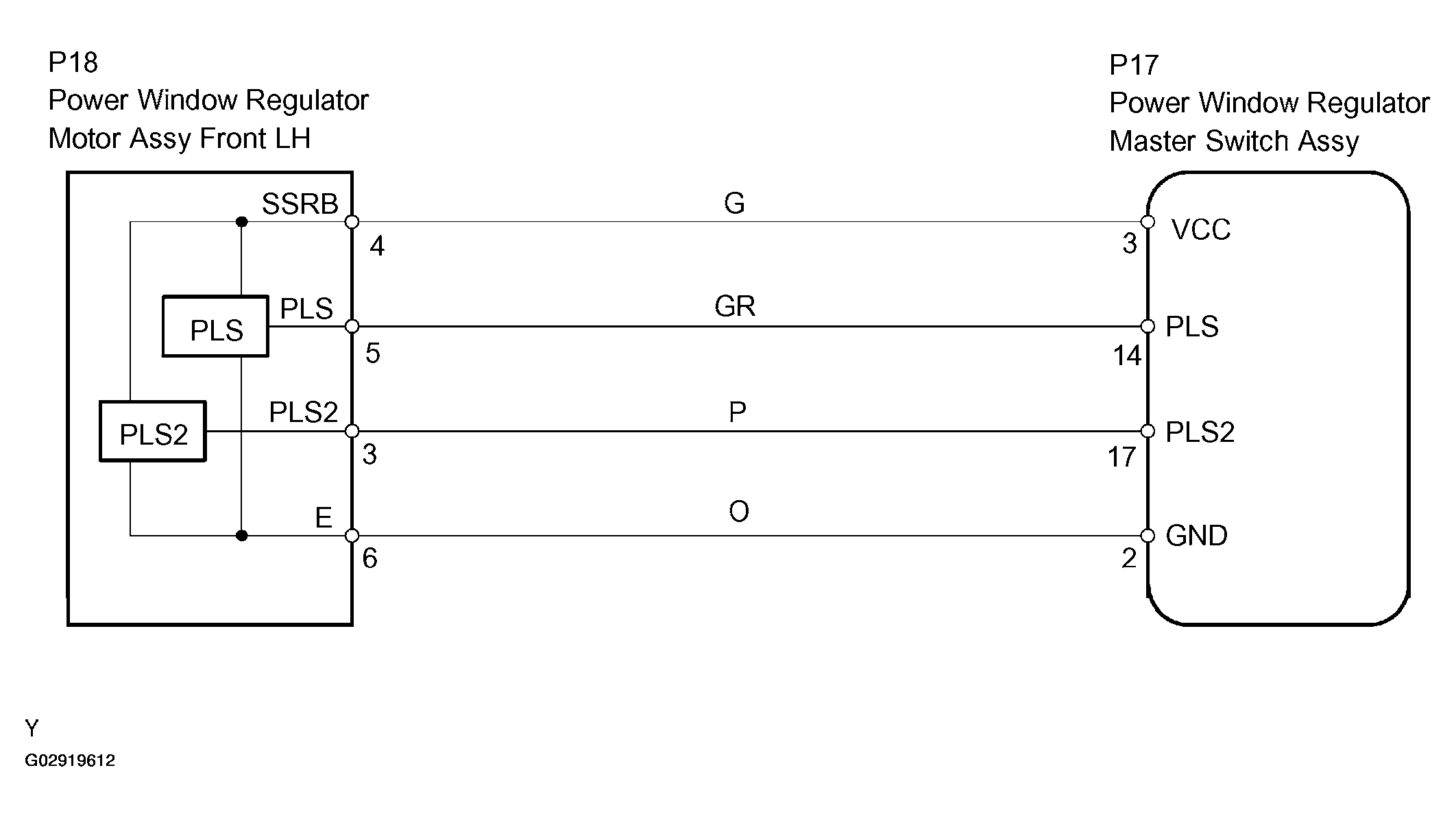

Fig 1: Wiring Diagram-Auto UP Operation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
