Power Windows Do Not Operate At All: Wiring Diagram

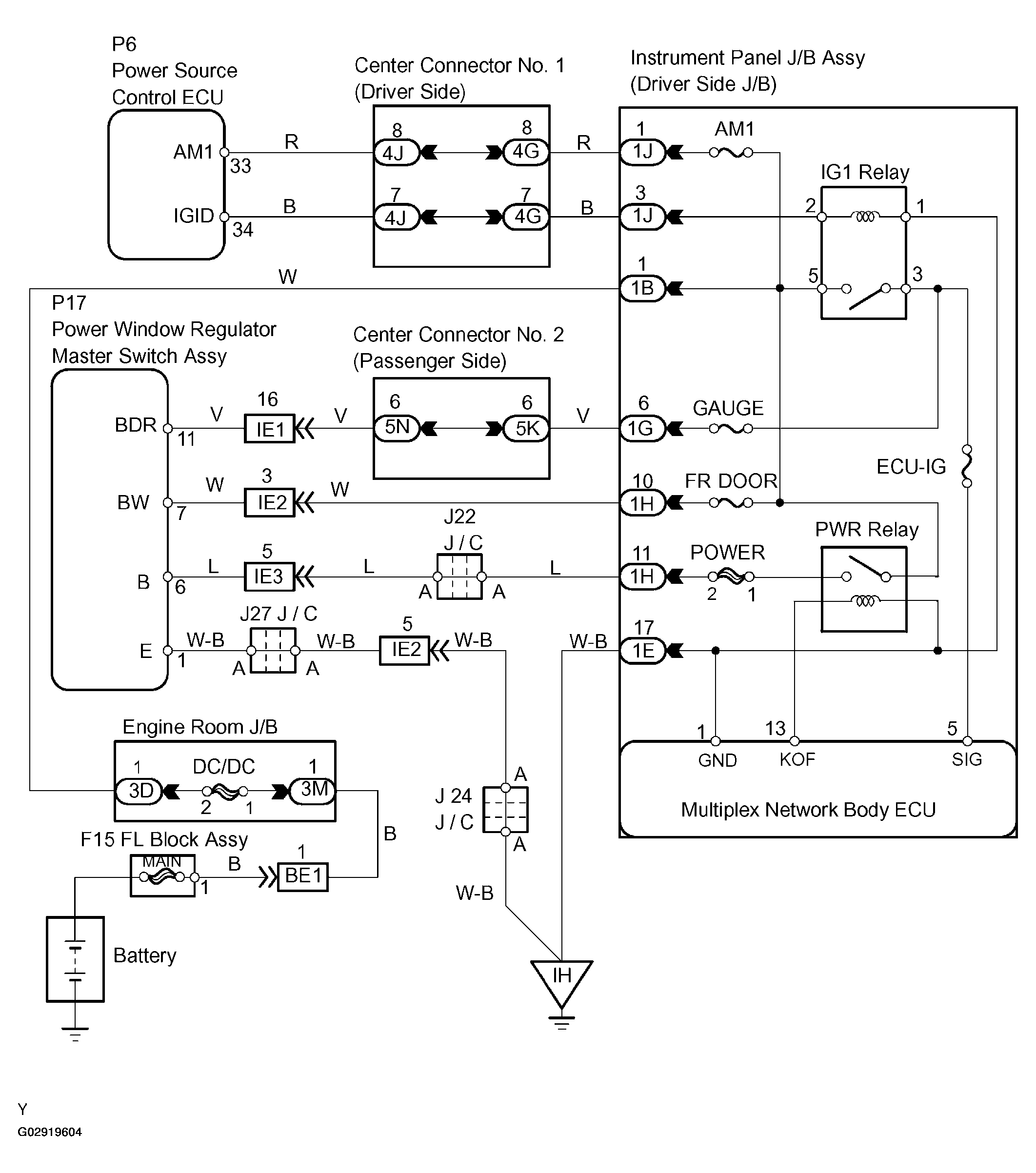

Fig 1: Wiring Diagram-Power Window
G02919604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
