Engine Mechanical Cylinder Block: Components

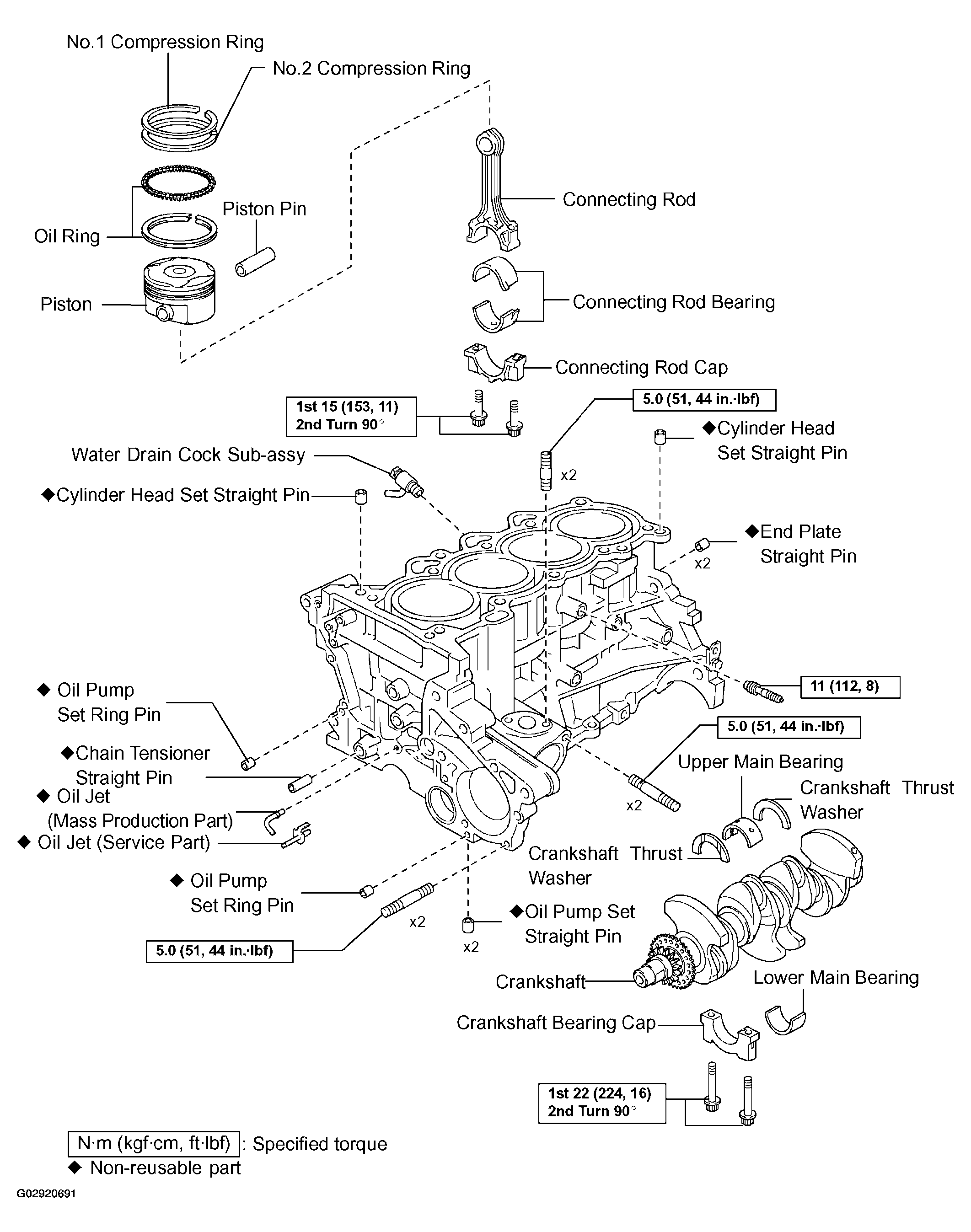

Fig 1: Cylinder Block Assembly (1NZ-FXE) Components

G02920691

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
