Fuel Injector ASSY: Components

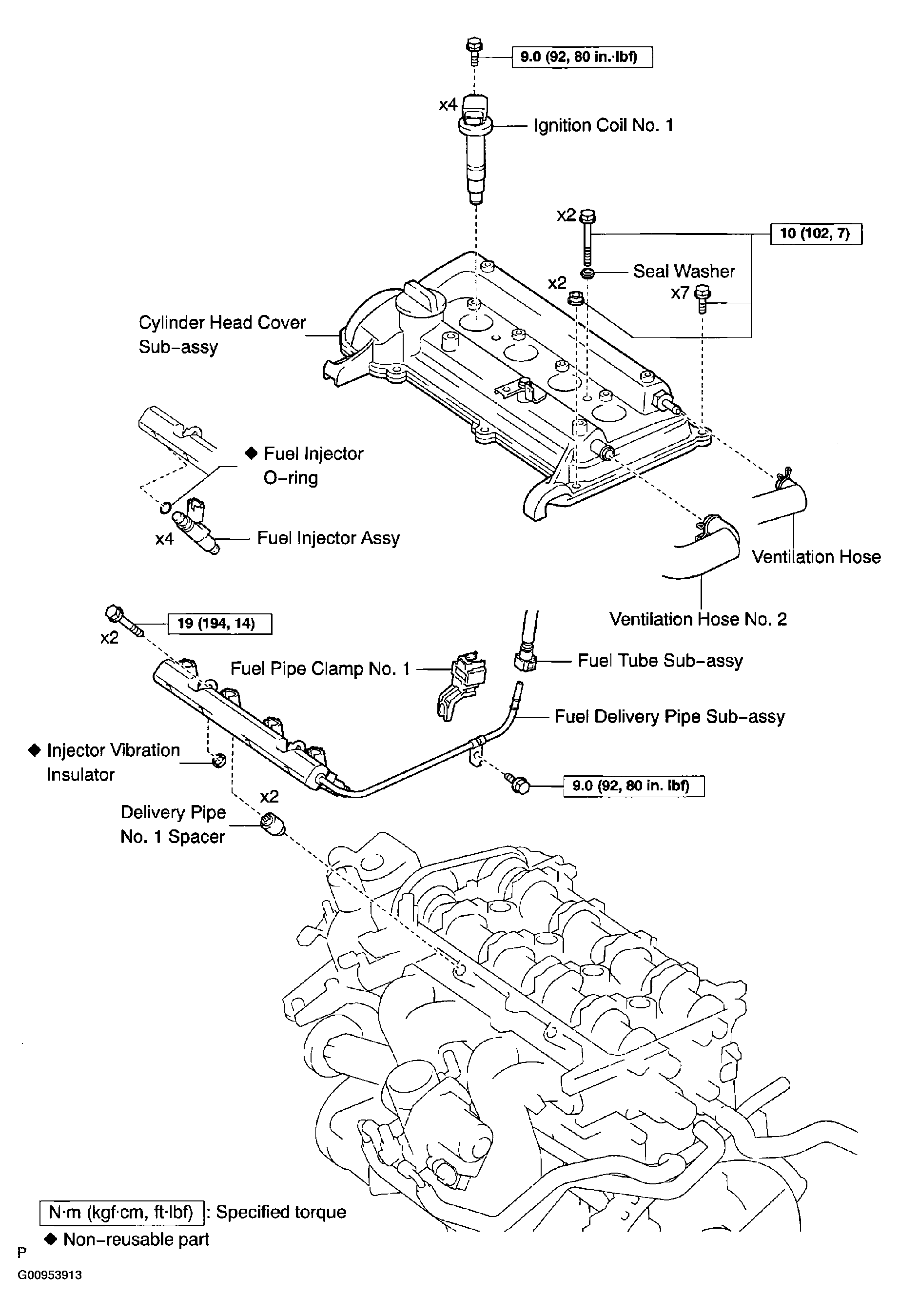

Fig 1: Identifying Fuel System Components

G00953913

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
