System Diagram
System Diagram
The fuel system is determined by the ECM based on signals from various sensors.

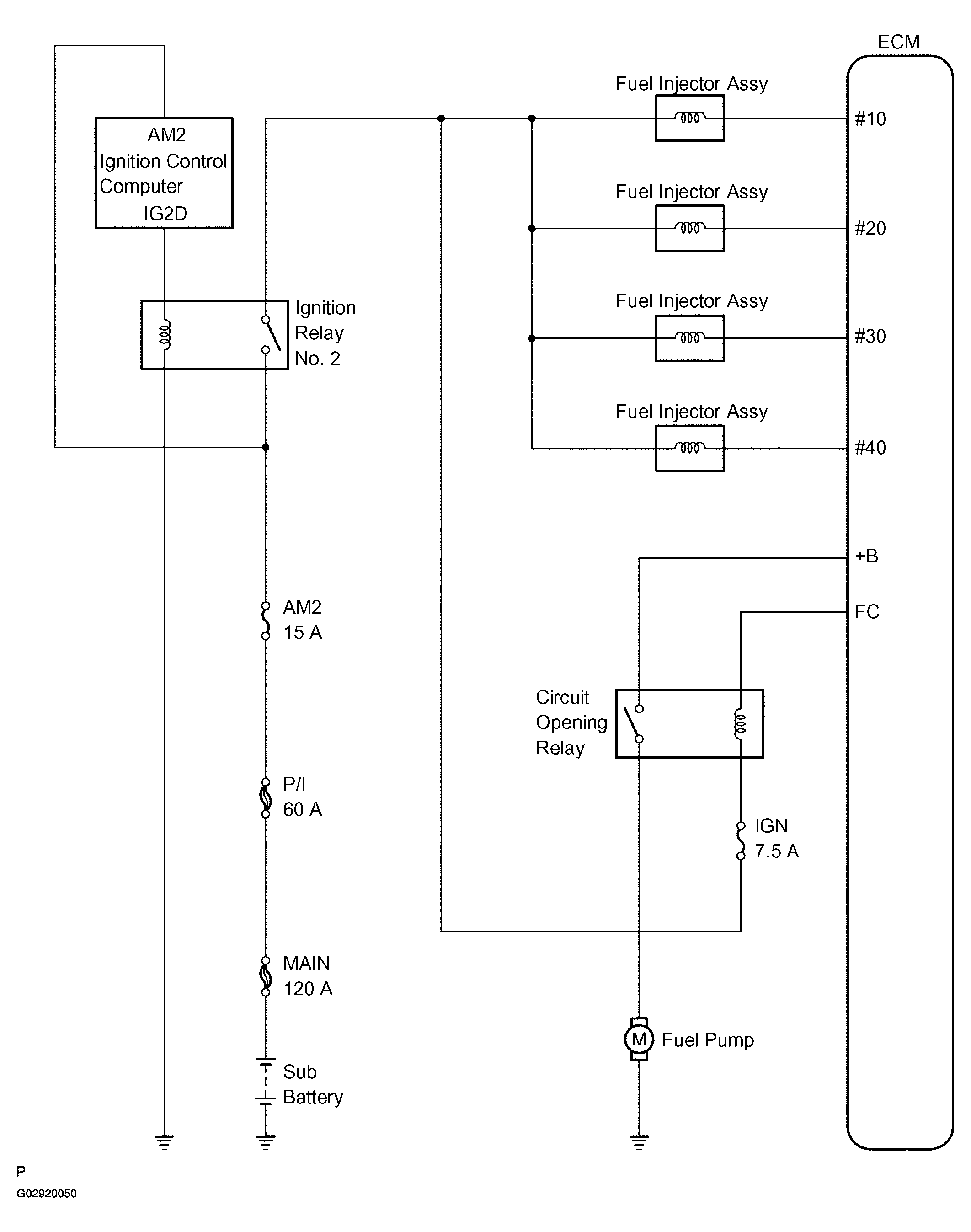

Fig 1: Fuel System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
