Fuel Tank ASSY (1NZ-FXE): Components

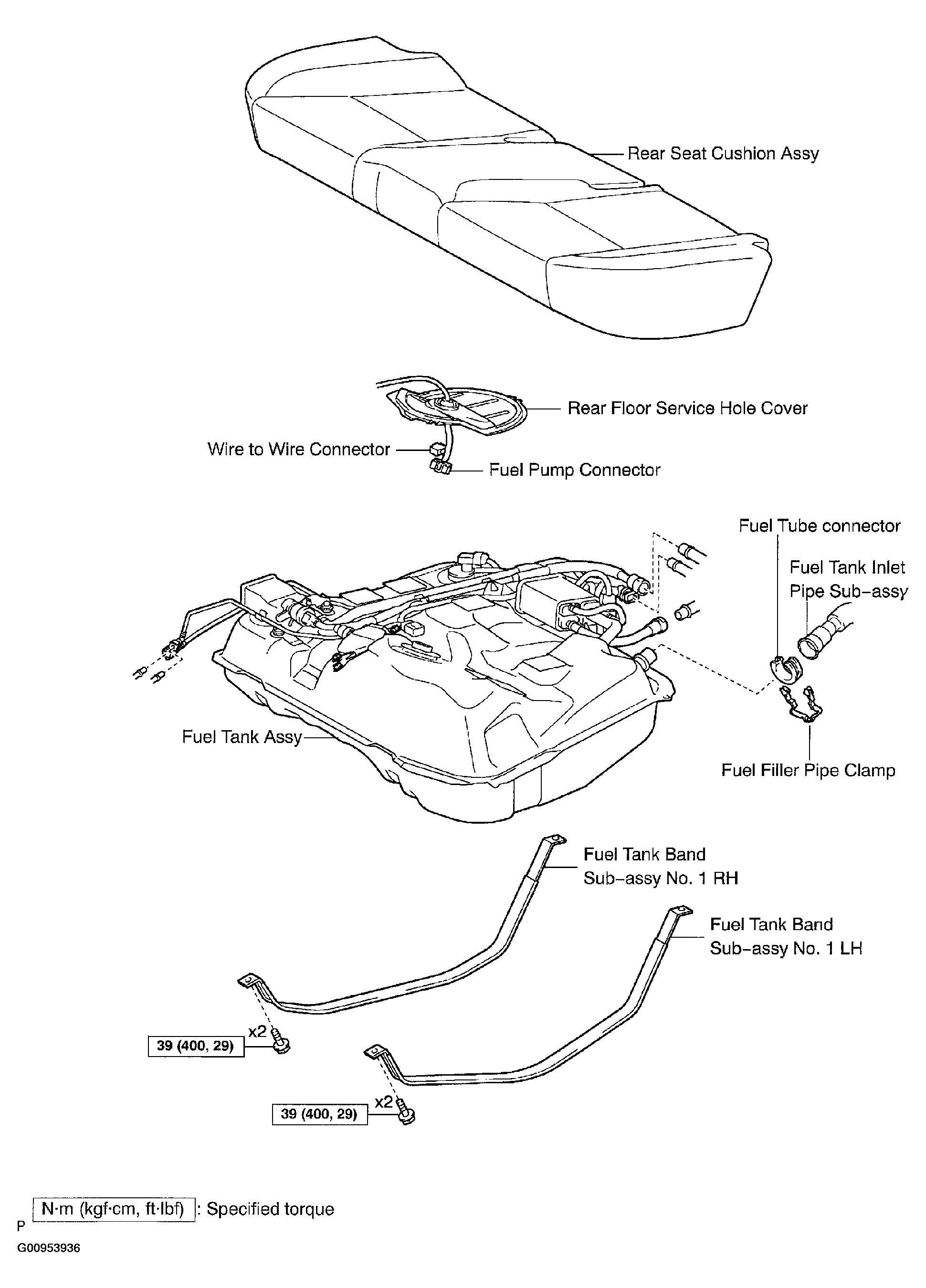

Fig 1: Identifying Components For Fuel Tank Removal & Installation (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

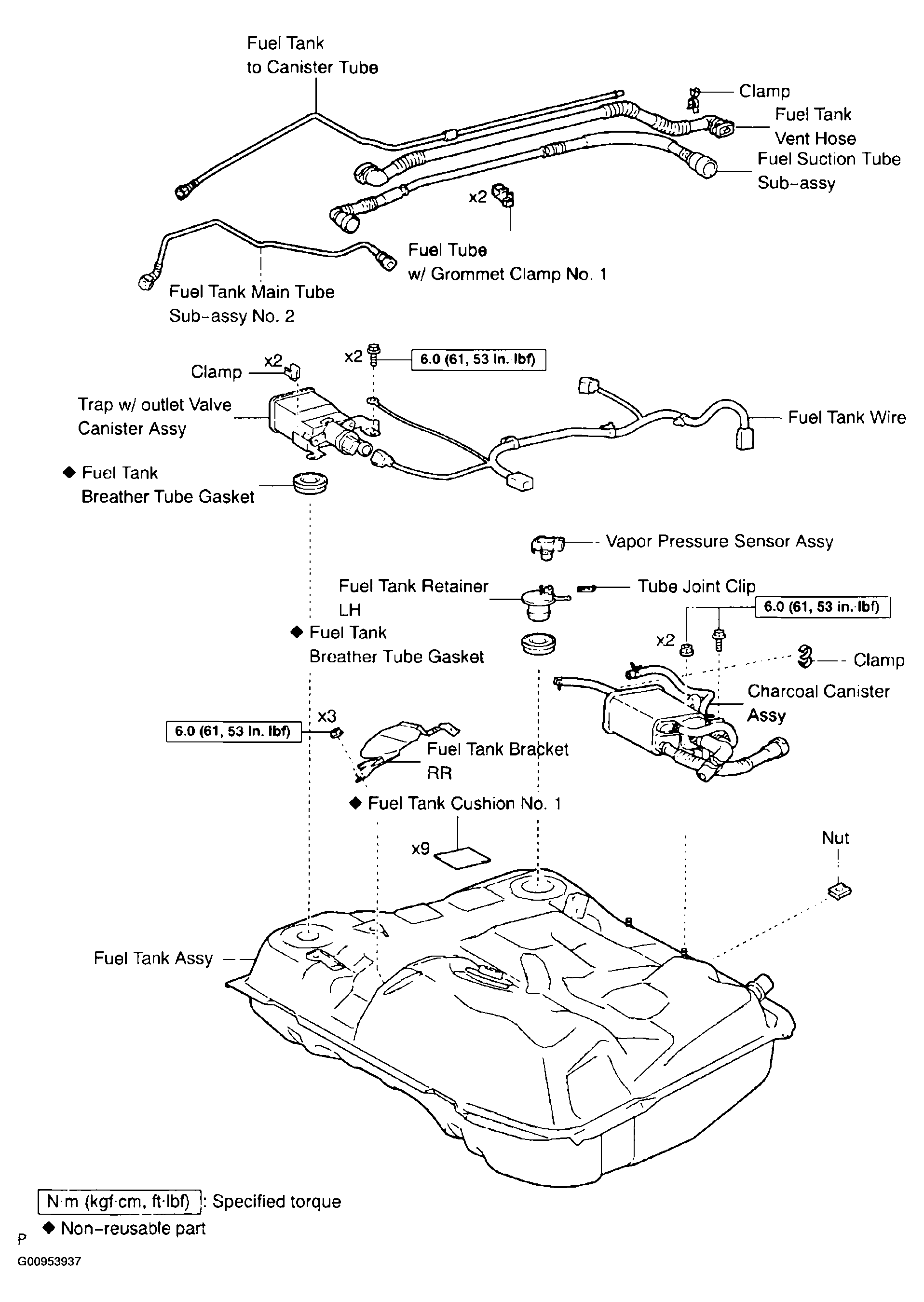

Fig 2: Identifying Components For Fuel Tank Removal & Installation (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Components For Fuel Tank Removal & Installation (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
