Knock Sensor (1NZ-FXE): Components

Fig 1: Locating Knock Sensor (1NZ-FXE) Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

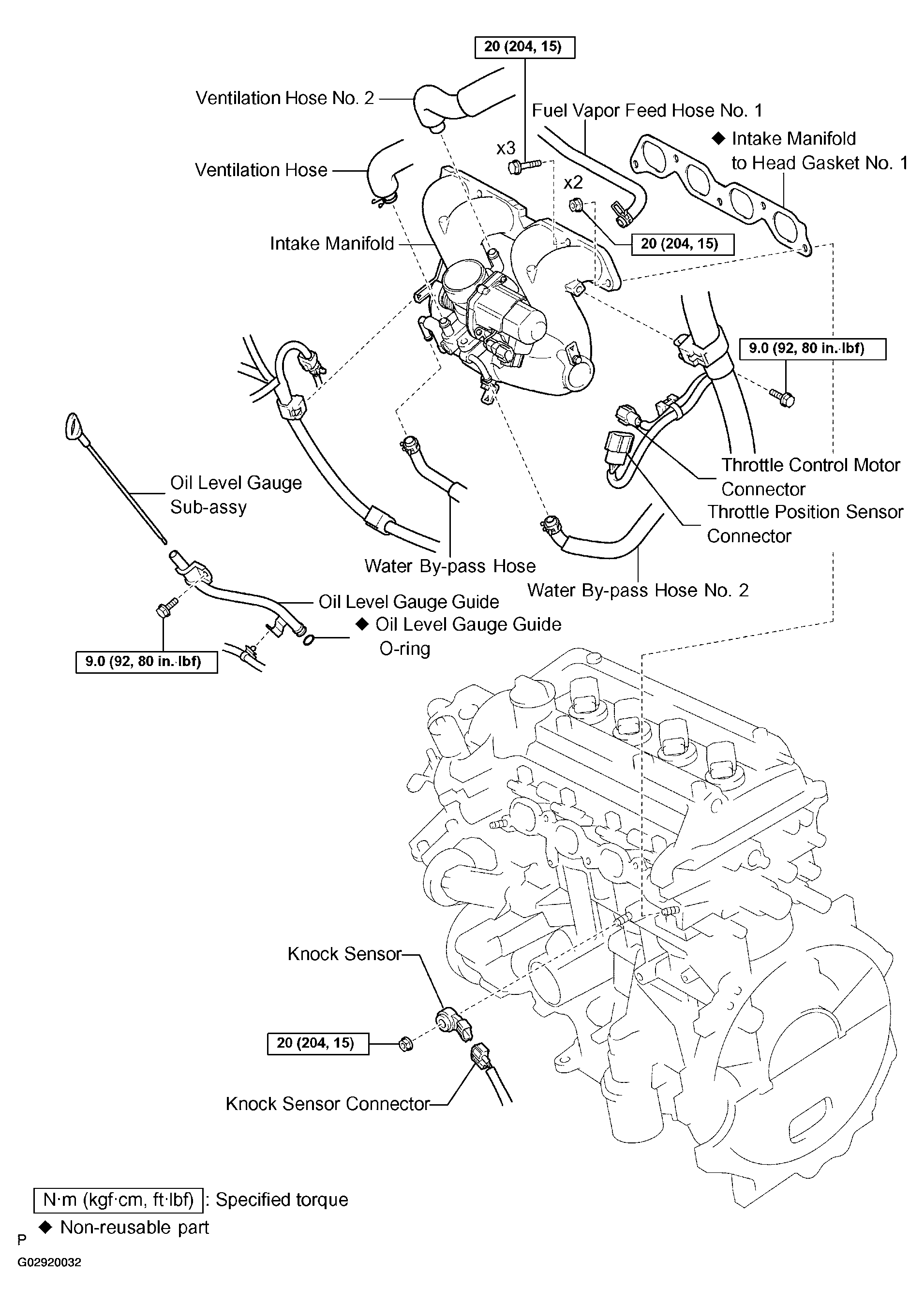

Fig 2: Locating Knock Sensor (1NZ-FXE) Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
