Throttle W/Motor Body ASSY (1NZ-FXE): Components

Fig 1: Locating Throttle W/Motor Body Assy (1NZ-FXE) Components (1 Of 2)
G02920021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

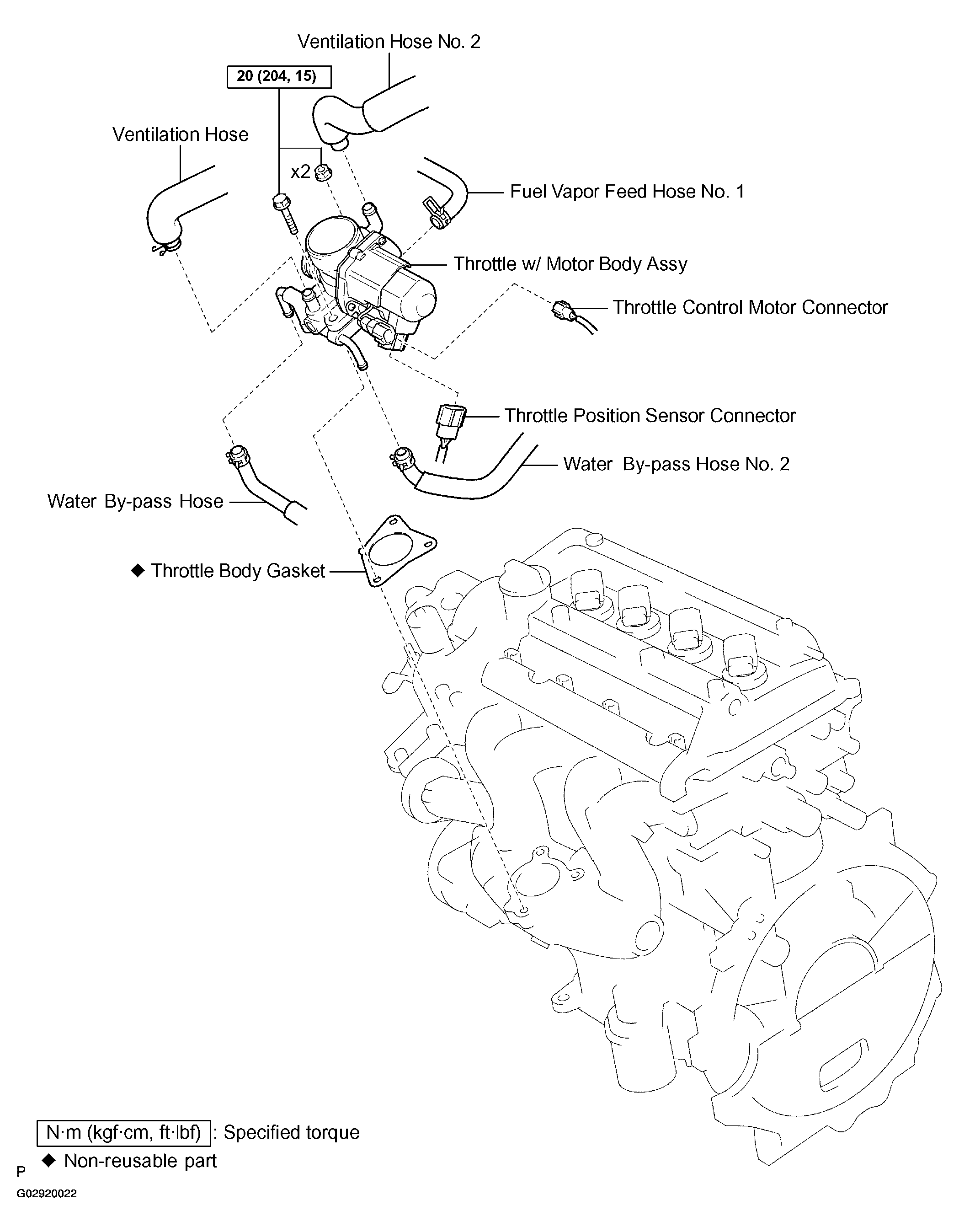

Fig 2: Locating Throttle W/Motor Body Assy (1NZ-FXE) Components (2 Of 2)
G02920022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
