Section 487 (Cruise Control Systems): Switch: Installation
WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the electrical connector to switch.
- Install switch.

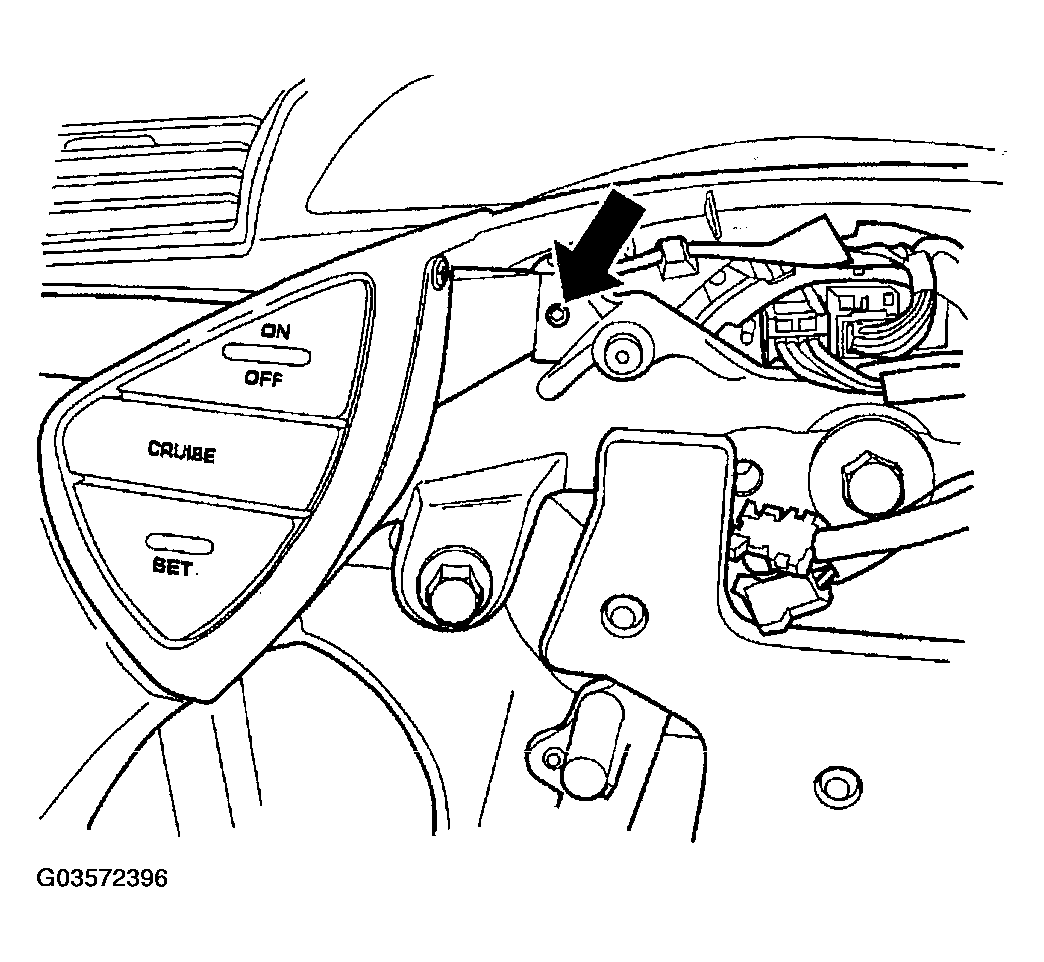

- Install the speed control switch mounting screw (Figure ).
- Tighten Screw.

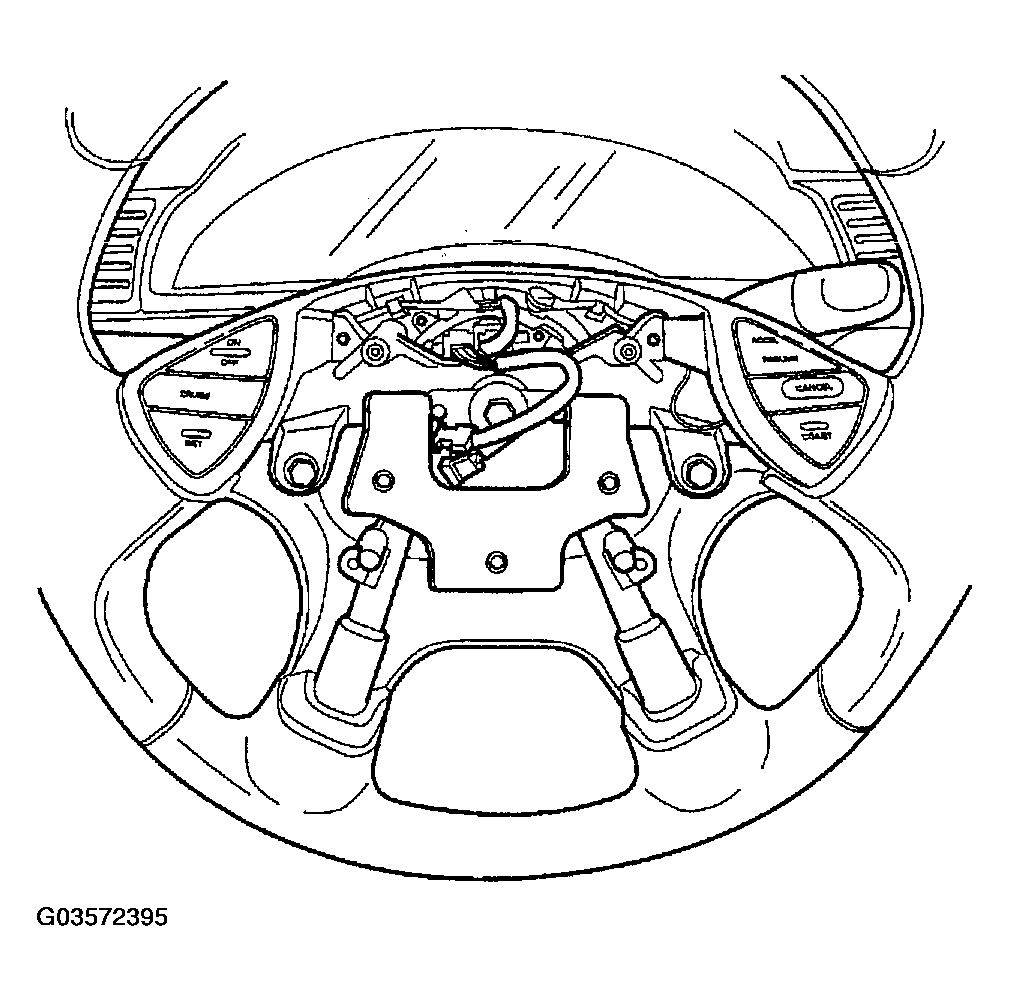

- Install the Driver side Airbag (Figure ), (Refer to AIR BAG RESTRAINT SYSTEMS ).
- Connect the negative battery cable.
