MOBIL SPEEDPASS Interference With Smart Key System (EL001-04)

Publication date: 2004-01-07
Reference number: EL001-04

MOBIL SPEEDPASS INTERFERENCE WITH SMART KEY SYSTEM

MOBIL SPEEDPASS INTERFERENCE WITH SMART KEY SYSTEM

TECHNICAL SERVICE BULLETIN

Reference Number(s): EL001-04, Date of Issue:  January 7, 2004
TOYOTA: 2004 Prius
SECTION: ELECTRICAL
COPYRIGHT: © 2018 Toyota, USA License Agreement TMS1002

Introduction

In some cases, when customers fuel their vehicles at Mobil filling stations that use the Antenna-style  Speedpass system, the customer may experience poor performance of the Smart Key system. Improvements in the system have been made to correct the following symptoms:

NOTE:
  • During the above conditions, the customer can always use the "Hard" key shank to unlock the doors and can start the ignition by inserting the key head into the ignition key slot.
  • This TSB addresses the above complaints only.
  • Some interference from strong electrical signals (including Speedpass) may still occur. Please refer to page 23 of the owner's manual for additional information.

Applicable Vehicles

2004  model yearPrius  vehicles with the Smart Key System produced BEFORE  the Production Change Effective VIN shown below.

Production Change Information

PRODUCTION CHANGE INFORMATION

MODEL PRODUCTION CHANGE EFFECTIVE VIN
Prius JTDKB2#U#40011406

Parts Information

PARTS INFORMATION

PREVIOUS PART NUMBER CURRENT PART NUMBER PART NAME QTY
89992-47010 89992-47030 Oscillator, Cabin 1
89992-47020 89992-47040 Oscillator, Trunk 1
89904-47060 89904-47061 Smart Key Transmitter 2

Warranty Information

WARRANTY INFORMATION

OP CODE DESCRIPTION TIME OFP T1 T2
EL3008 R & R Smart Key Interior Oscillators and Transmitters 1.0 89992-47010 73 99
EL3008 R & R Smart Key Interior Oscillators and Transmitters 1.0 89992-47020 73 99
EL3008 R & R Smart Key Interior Oscillators and Transmitters 1.0 89904-47060 73 99
NOTE: This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

Warranty application is limited to correction of a problem based upon a customer's specific complaint.

Replacement Procedure: Indoor Electrical Key Oscillator (Front)

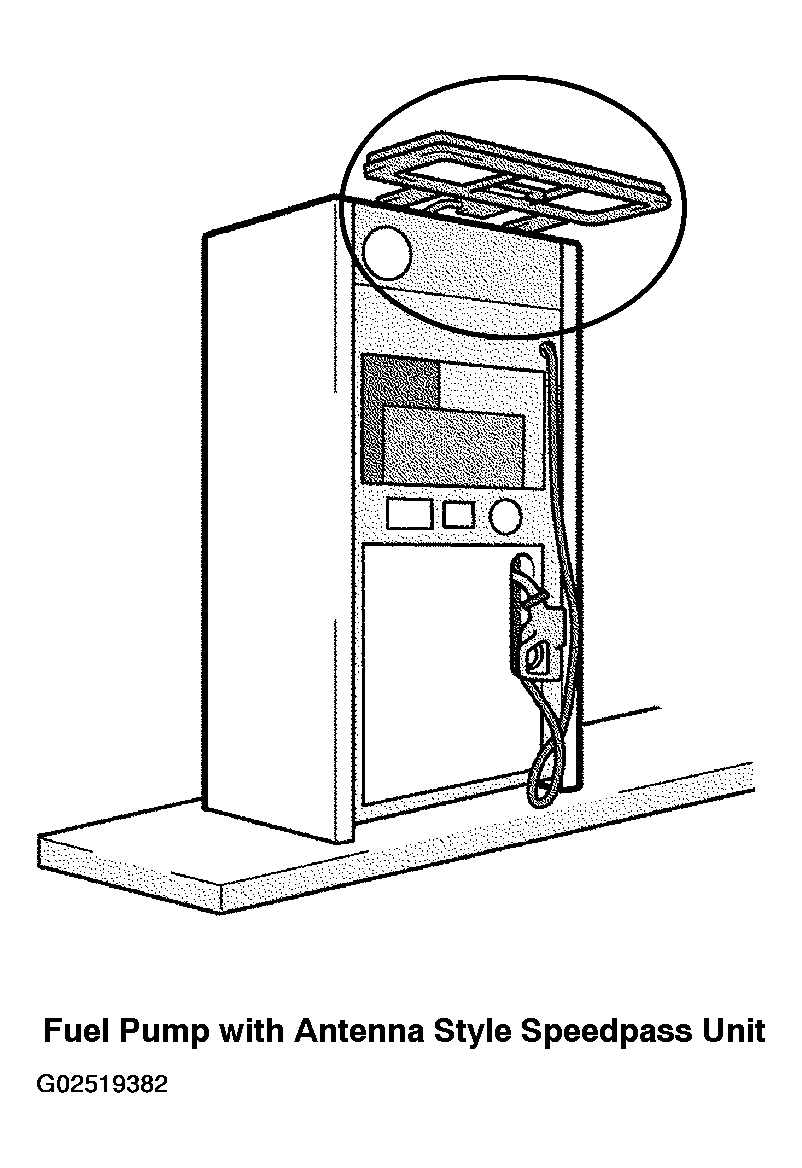

Fig 1: Mobil Fuel Pump With Antenna
G02519382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: Customer must bring all vehicle keys in with the vehicle, as any non-replaced keys will be inoperative after this procedure is performed.

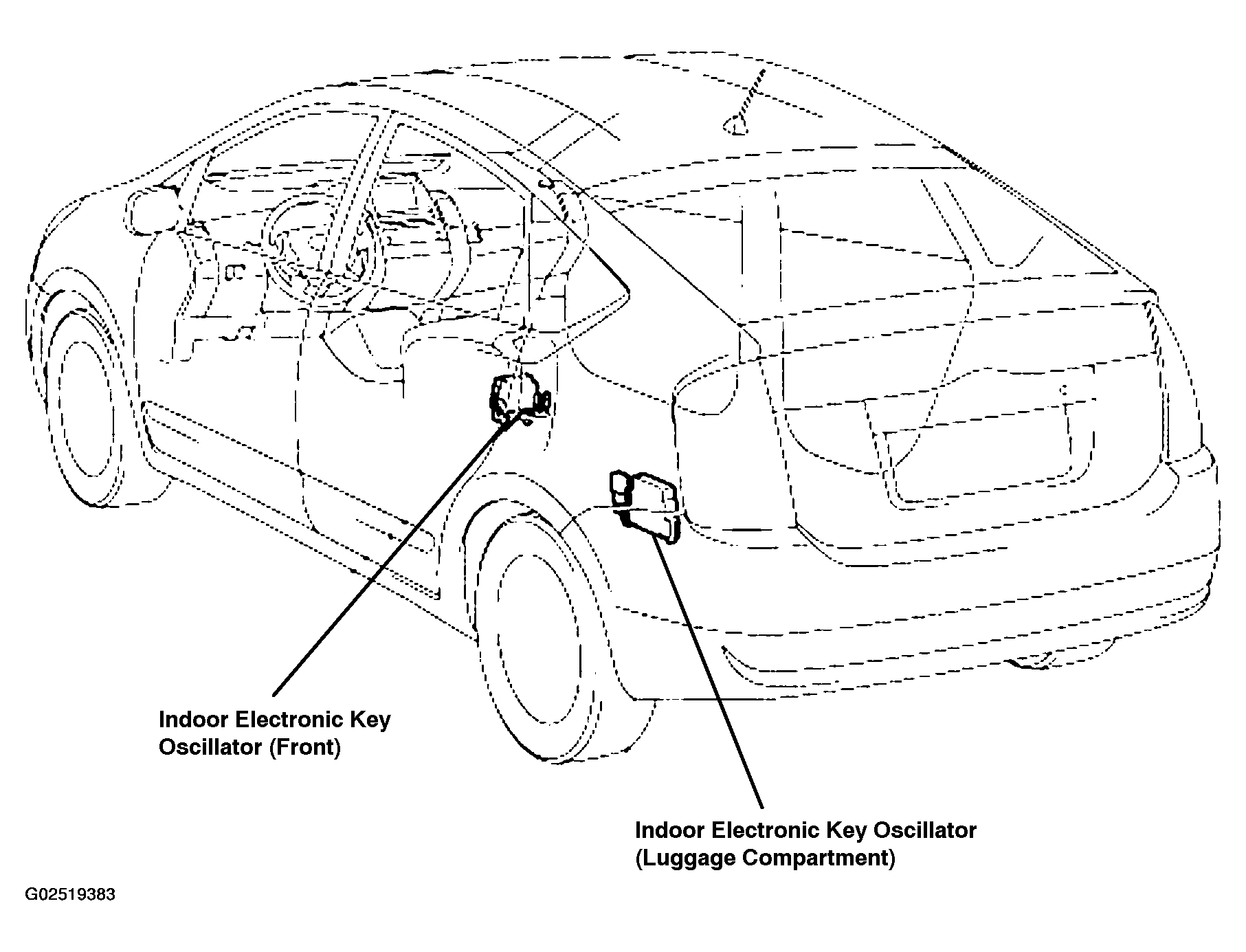

Fig 2: Indoor Electrical Key Oscillator Location
G02519383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: The installation procedures are the removal procedures in reverse order.
  1. Remove Console Rear End Panel Sub-Assembly.
    1. Pull up the console rear end panel sub-assembly in the direction indicated by the arrow in the illustration, (Fig 3), to disengage the 6 clips. Then, remove the console rear end panel sub-assembly.
      Fig 3: Console Rear End Panel Clips
      G02519384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove Indoor Electrical Key Oscillator (Front).
    1. Remove the 2 screws.

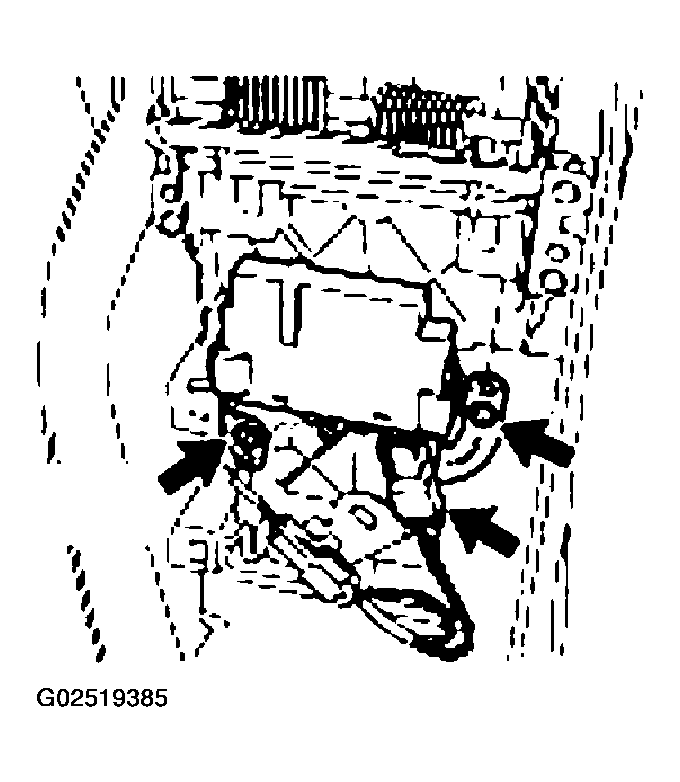

      Fig 4: Indoor Electrical Key Oscillator
      G02519385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and remove the indoor electrical key oscillator (front).

Replacement Procedure: Indoor Electrical Key Oscillator (Luggage Compartment)

NOTE: The installation procedures are the removal procedures in reverse order.
  1. Remove Floor Mat.
  2. Remove Deck Trim Board LH and RH.
  3. Remove Deck Floor Box Rear.
  4. Remove Indoor Electrical Key Oscillator (Luggage Compartment).
    Fig 5: Luggage Compartment Indoor Electrical Key Oscillator
    G02519386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 nuts.
    2. Disconnect the connector and remove the indoor electrical key oscillator (luggage compartment).

Replacement Procedure: Electrical Key Transmitter

  1. Remove Battery From Original Electrical Key Transmitter.
    NOTE: Take extra care when handling these precision electronic components.
    1. Push and hold the release knob in the direction indicated by the arrow in the illustration in Fig 6. Take the emergency key out of the key assembly.
      Fig 6: Emergency Key
      G02519387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Push and hold the release knob in the direction indicated by the arrow labeled "A" in the illustration (Fig 7). Push out the slide cover in the direction indicated by the arrow labeled "B" in the illustration and remove the slide cover.
      Fig 7: Slide Cover Of Key Assembly
      G02519388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 4 screws and cover using a screwdriver, as shown in the illustration in Fig 8.
      Fig 8: Removing Cover And Screws
      G02519389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the transmitter's battery from the key, as shown in the illustration.
      Fig 9: Removing Transmitters Battery
      G02519390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • Do not push the terminals with your finger.
    • Do not forcibly pry up the battery (lithium battery). The terminals may become damaged.
    • Do not touch the battery with wet hands. Water may cause rust.
    • Do not touch or move any components inside the transmitter, as it may cease to work.
  2. Install Transmitter Battery Into New Electrical Key Transmitter.
    1. Install battery with the positive (+) side up, as shown in the illustration.
      Fig 10: Installing Transmitters Battery
      G02519391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be sure that the positive side and the negative side of the transmitter battery are matched up correctly.
      • Be careful not to bend the transmitter battery electrode during insertion.
      • Keep the transmitter case interior free of dust and oil.
    2. Check that the O-ring is not distorted or slipped off, and install the cover.
    3. Using a screwdriver, tighten the 4 screws.
      NOTE: Incomplete installation of the cover will cause defective contact between the battery (lithium battery) and terminal.
    4. Push and hold the release knob in the direction indicated by the arrow labeled "A" in the illustration, Fig 11. Push in the slide cover in the direction indicated by the arrow labeled "B" in the illustration and install the slide cover.
      Fig 11: Installing Slide Cover Key Assembly
      G02519392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Push and hold the release knob in the direction indicated by the arrow in the illustration in Fig 12. Insert the emergency key into the new key assembly.
      NOTE: After installation, press any of the transmitter's switches. Check that the LED illuminates.
      Fig 12: Inserting Emergency Key In Key Assembly
      G02519393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Repeat procedure for other electrical key transmitter.

Immobilizer Registration

  1. Erasure of Key Code.
    1. Erase key codes using the Diagnostic Tester.

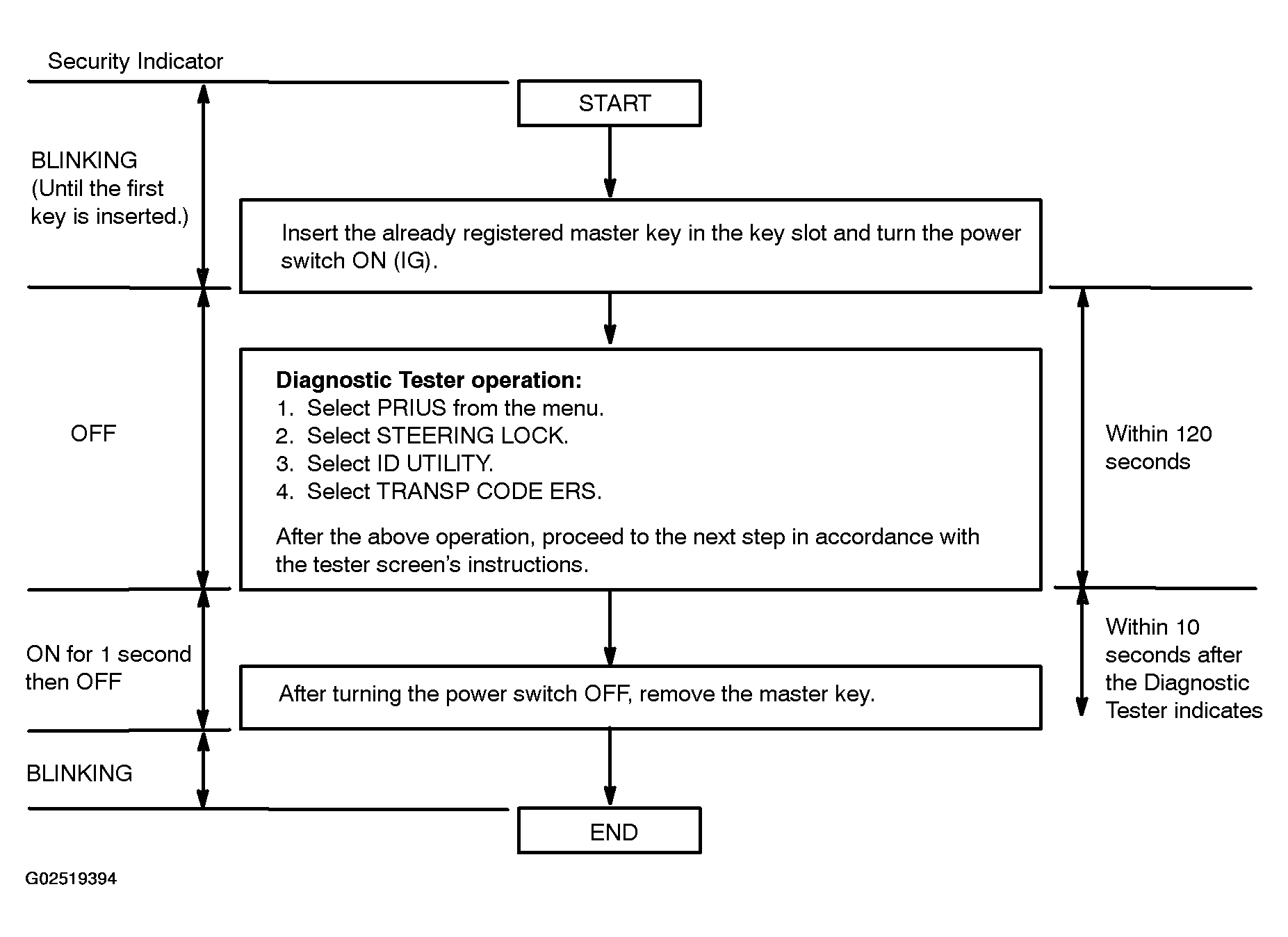

      Fig 13: Erase Key Code
      G02519394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • All key codes are erased except for the master key, which is used for erasing the key codes. In order to use a key whose code has been erased, the key code must be re-registered.
    • Registration will be cancelled if each step is not completed within the specified time.
    NOTE:
    • A brief outline of procedures for key code erasure is shown on this page. For more detailed information, please refer to the Diagnostic Tester screen's instructions.
    • When the immobilizer system is operating normally and the key is pulled out, the security indicator starts blinking.
  2. Registration of Additional Key (Additional Registration).
    1. Register an additional key by using the Diagnostic Tester.
    NOTE:
    • A maximum of 5 master key codes and 3 sub-key codes can be registered.
    • Registration mode will end if each step is not completed within the specified time.
    • When the key slot or the key cylinder set is replaced, remove the transmitter module from the original master key. Then install this transmitter module to a new key and use the new key as the master key. If necessary, use this master key to register other keys.
    NOTE: When the key slot has been replaced, locking and unlocking doors is possible with the new master key's transmitter module (taken from the original master key). However, the new master key will not be able to lock and unlock doors through the door key cylinder. Keep the original master key. If the new master key's transmitter module's battery fails, the original master key can be used to lock and unlock doors through the door key cylinder.

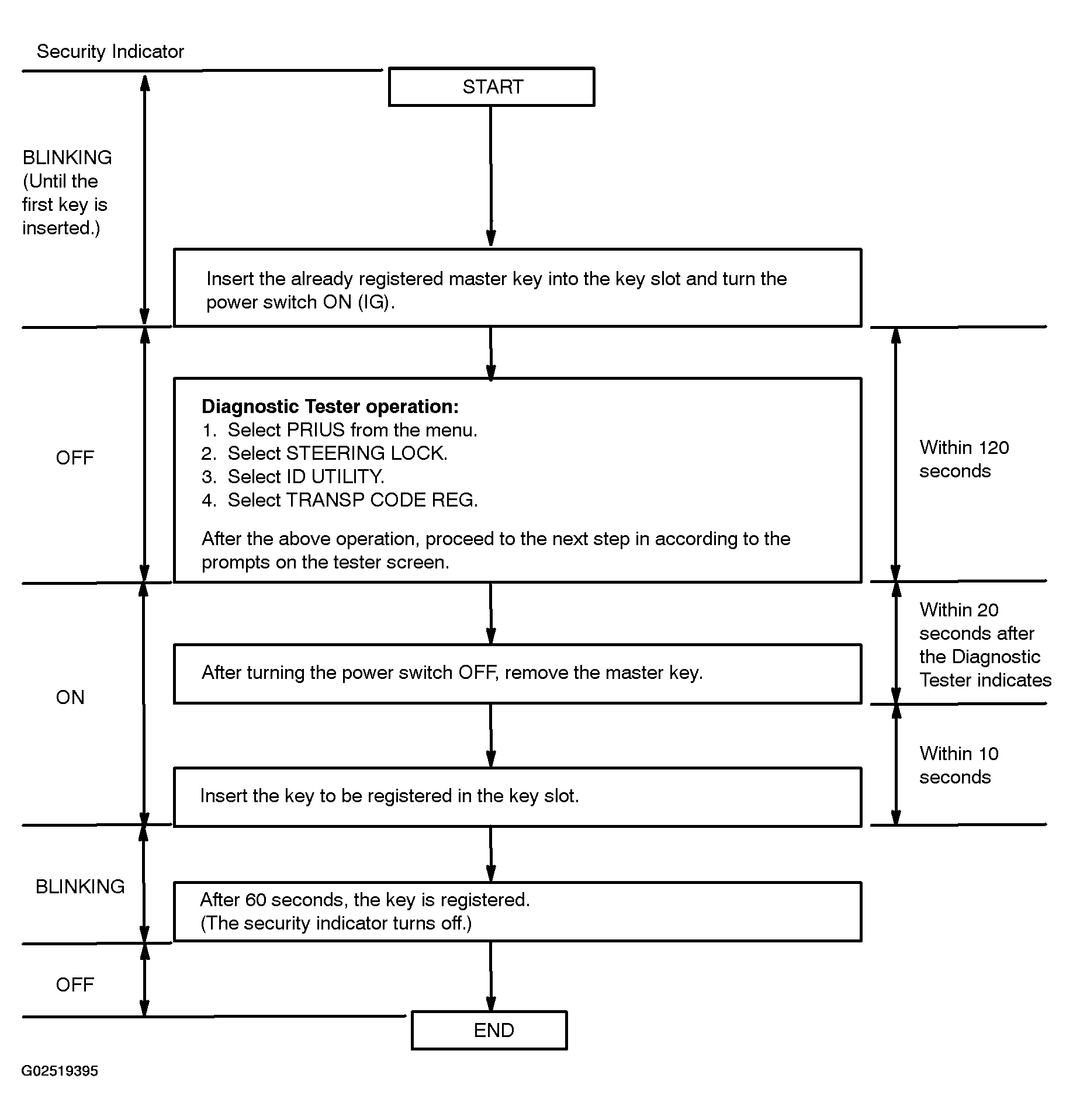

    Fig 14: Additional Registration
    G02519395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • A brief outline of procedures for key code registration is shown on this page. For more detailed information, please refer to the Diagnostic Tester screen's instructions.
    • When the immobilizer system is operating normally and the key is pulled out, the security indicator starts blinking.
    • If the key code registration has failed in automatic key code registration mode, code 2-1 will be output from the security indicator. Trying to re-register an already registered key will cause code 2-2 to be output when the key is inserted. If the number of registered key codes exceeds the limit, code 2-3 will be output from the security indicator.

Smart Key/ Wireless Registration

  1. Smart Key Code Reset.
    1. Reset the smart key codes using the Diagnostic Tester.

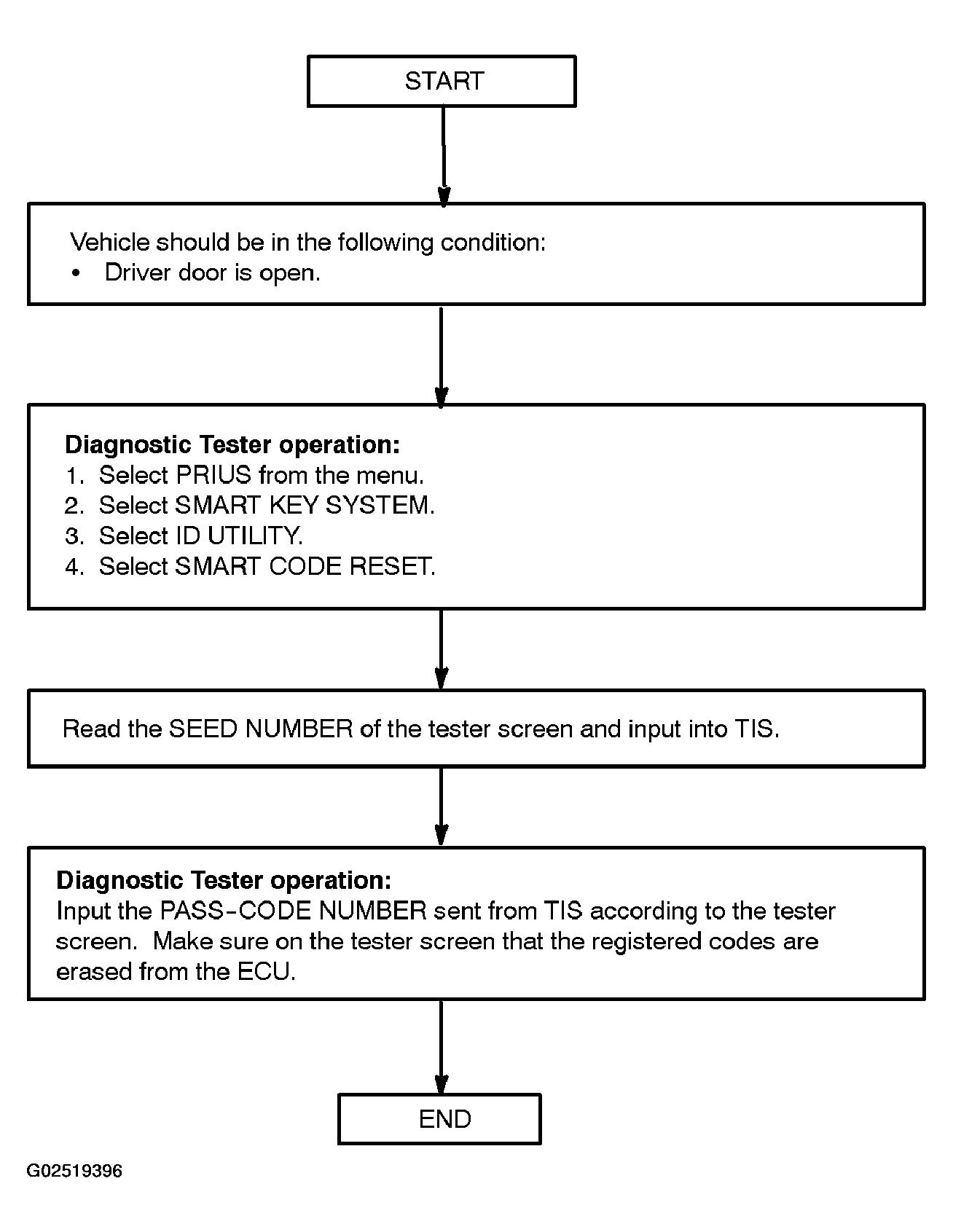

    Fig 15: Reset Flowchart
    G02519396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • A brief outline of procedures for key code reset is shown on this page. For more detailed information, please refer to the Diagnostic Tester screen's instruction.
    • SEED NUMBER is a 6 digit code.
    • PASS-CODE NUMBER is a 6 digit code.
    • Reset mode will take approximately 16 minutes to complete.
  2. Registration of New and Additional Smart Key Codes.
    1. Register a smart key code using the Diagnostic Tester.

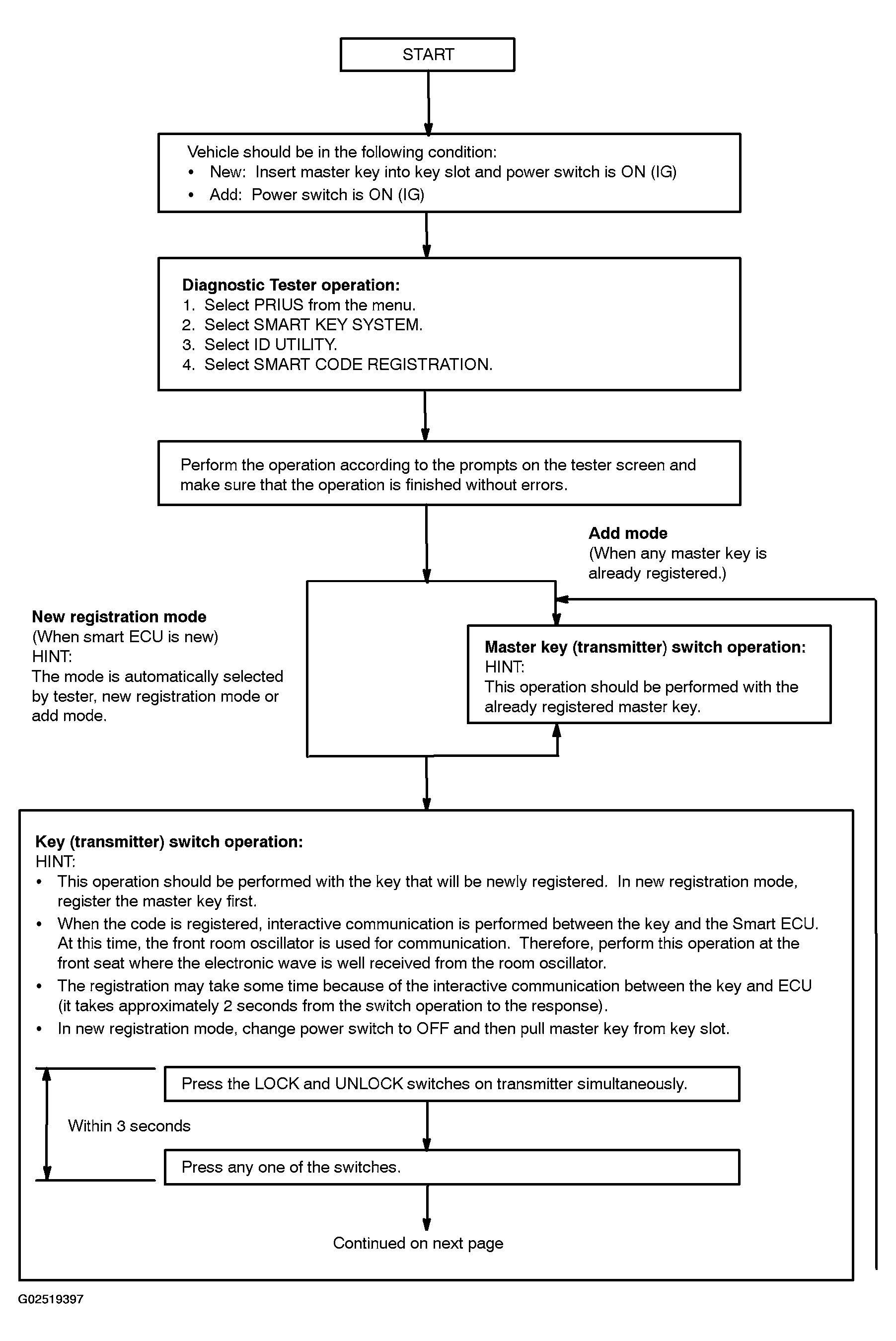

    Fig 16: Registration (1 Of 2)
    G02519397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

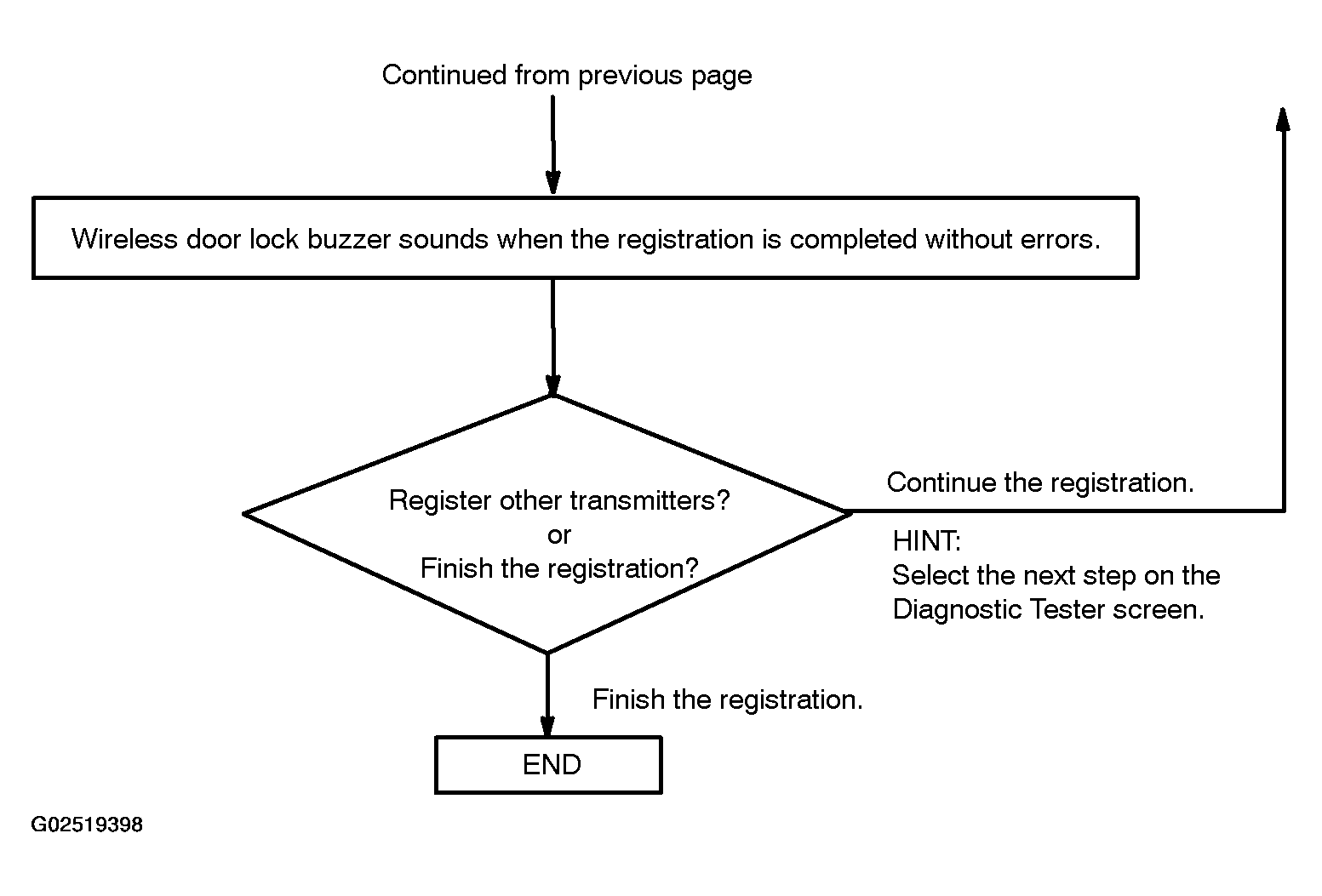

    Fig 17: Registration (2 Of 2)
    G02519398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • A brief outline of procedures for key code registration is shown on this page. For more detailed information, please refer to the Diagnostic Tester screen's instruction.
    • The number of currently registered codes can be checked out on the first screen of the SMART CODE REG option.
