Steering Gear ASSY: Components

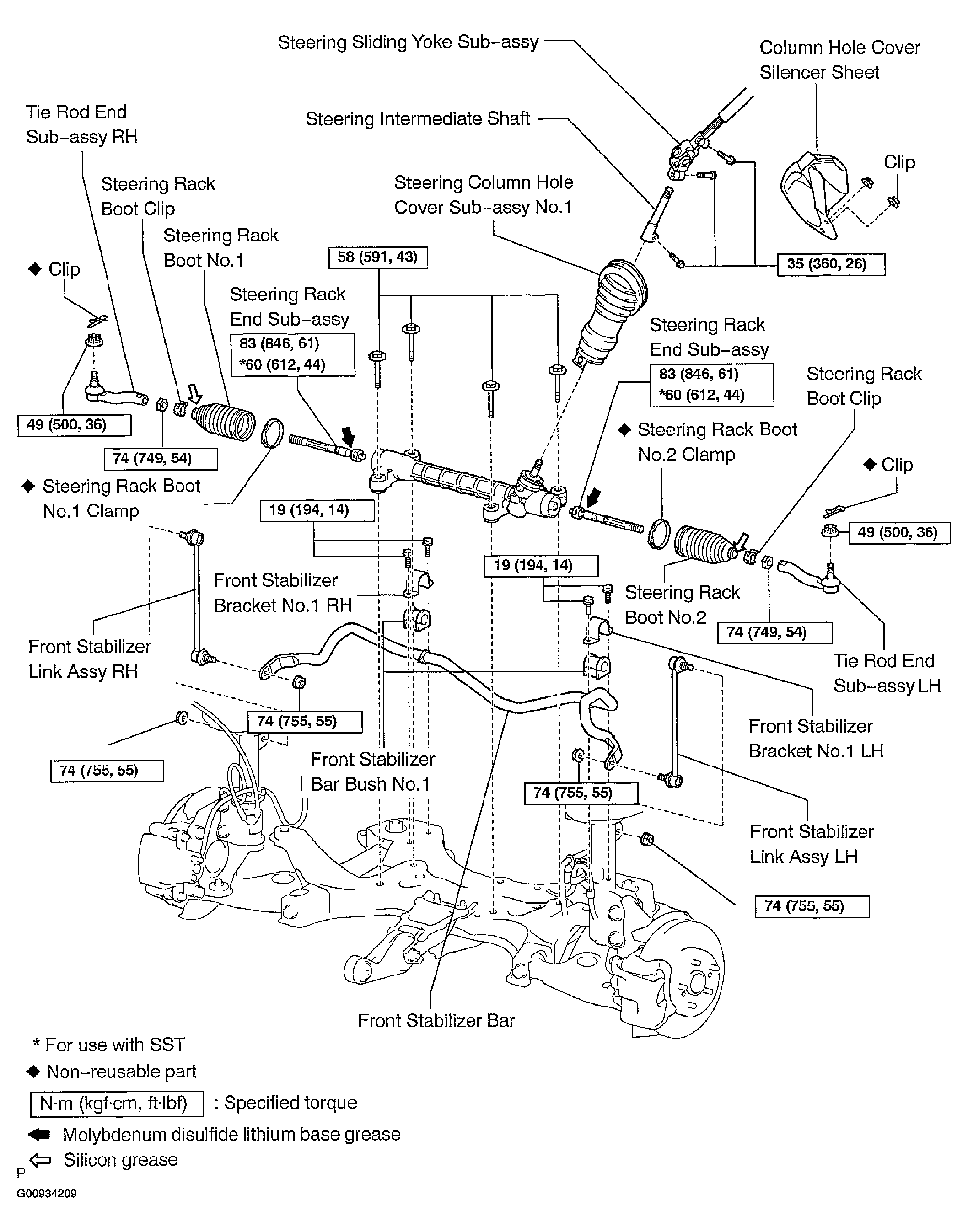

Fig 1: Identifying Steering Gear Assy Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
