Input Shaft ASSY: Components

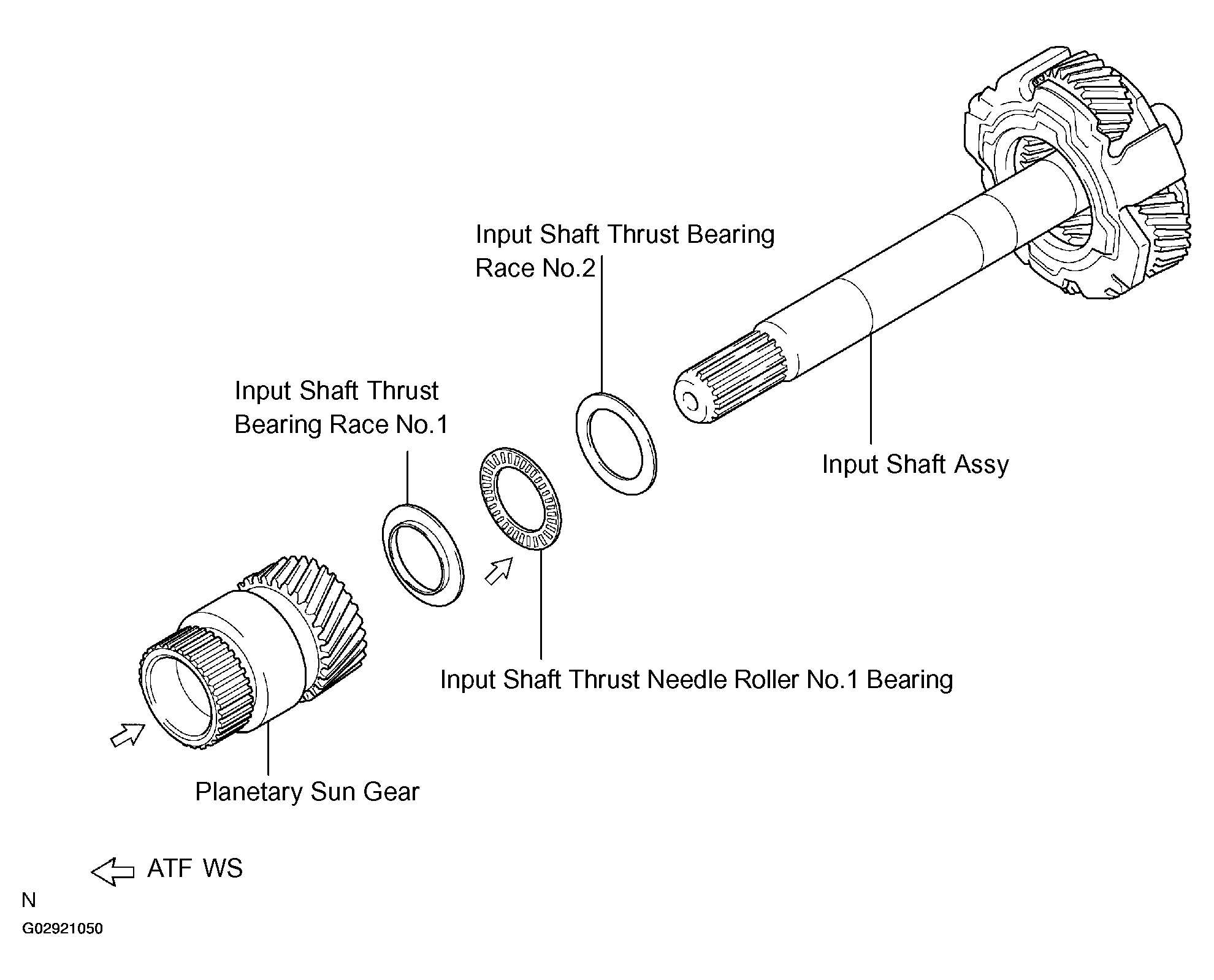

Fig 1: Exploded View Of Input Shaft Assy Component
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
