Body Control Systems - Diagnostics
›
Circuit Inspection
›
Door Unlock Detection Switch Circuit
›
Wiring Diagram
Door Unlock Detection Switch Circuit: Wiring Diagram

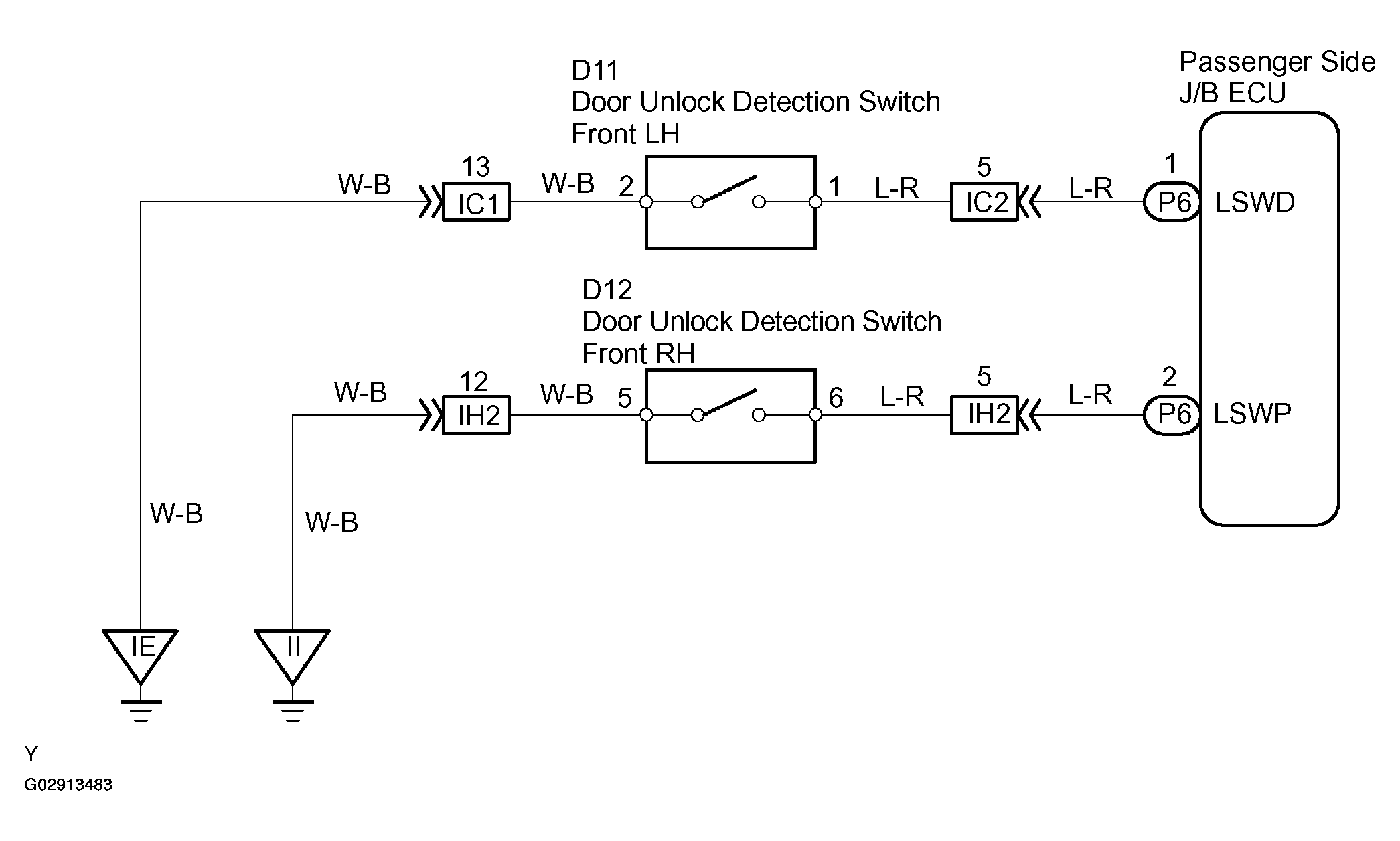

Fig 1: Wiring Diagram Of Door Unlock Detection Switch Circuit
