Power Main Relay Circuit: Wiring Diagram

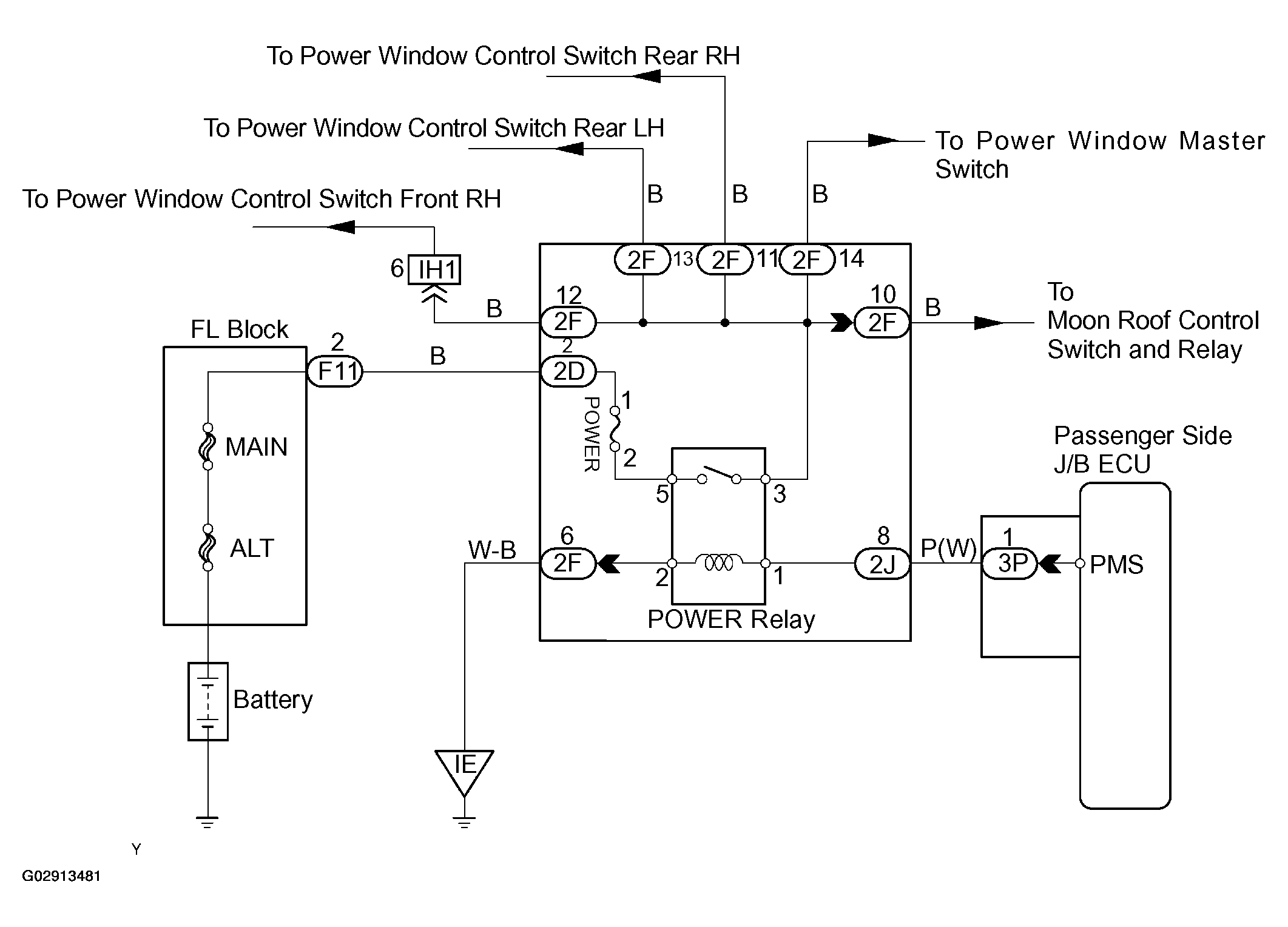

Fig 1: Wiring Diagram Of Power Main Relay Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
