Problem Symptoms Table
›
Power Door Lock Control System:
Power Door Lock Control System:

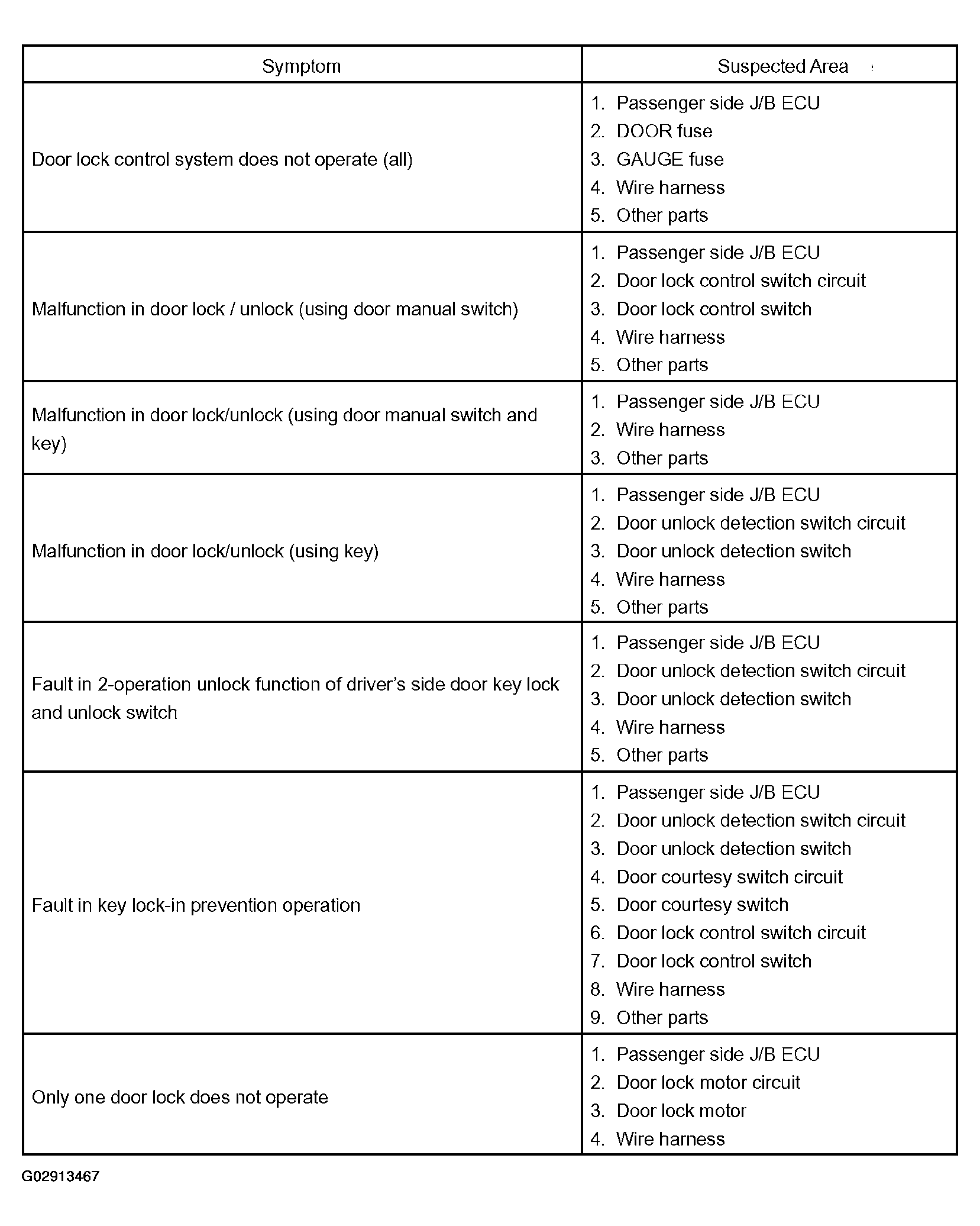

Fig 1: Problem Symptom Table - Power Door Lock Control System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
