Problem Symptoms Table
›
Power Door Lock Control System
Power Door Lock Control System

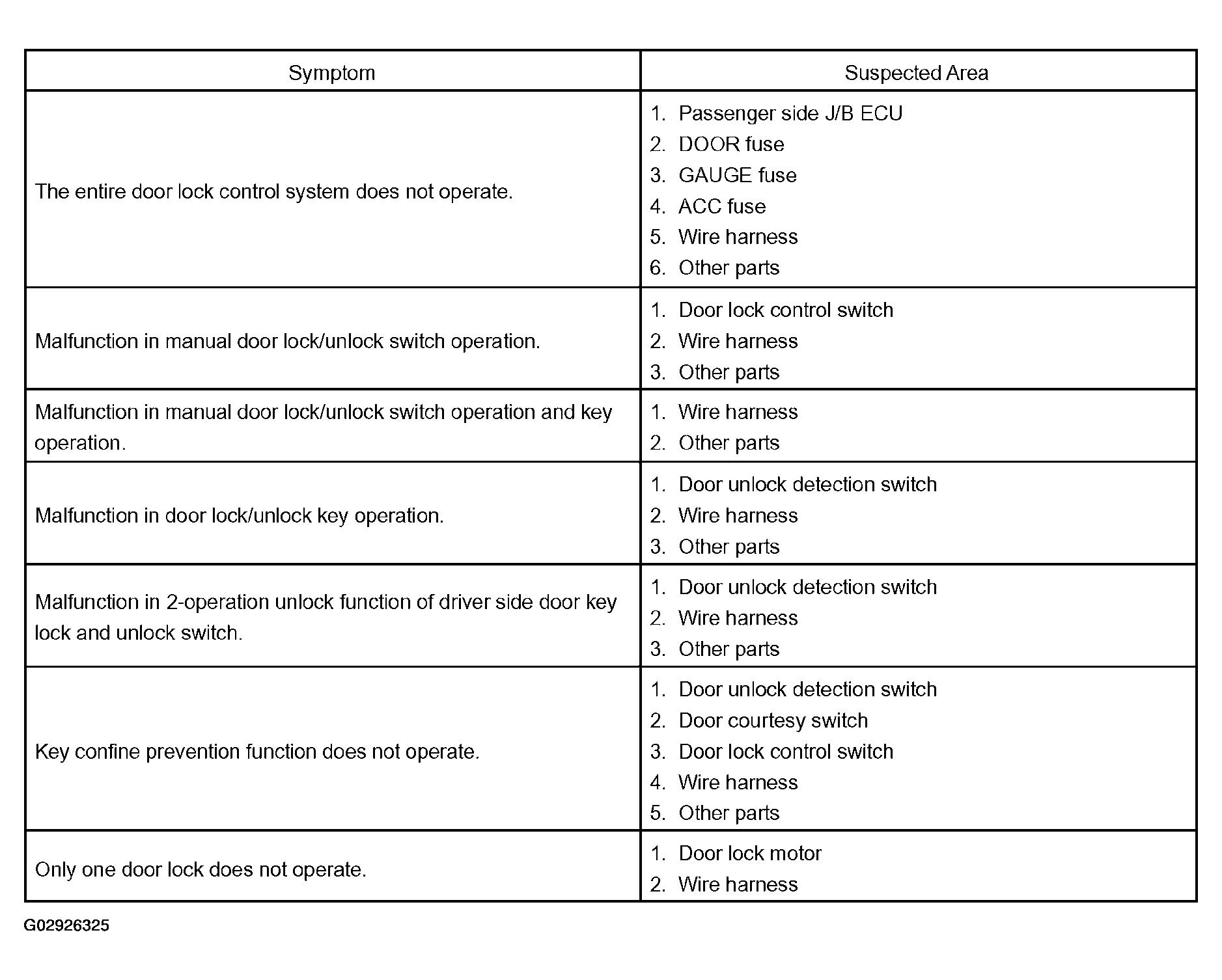

Fig 1: Power Door Lock Control System Troubleshooting Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
