Deceleration Sensor (W/Abs)
›
Removal
›
Remove Deceleration Sensor
Remove Deceleration Sensor
Remove the rear console box and upper console plate (See
REMOVAL
).
Disconnect the sensor connector.
Remove the 2 nuts and deceleration sensor.
Torque: 5.0 N.m (52 kgf.cm, 41 in.lbf)

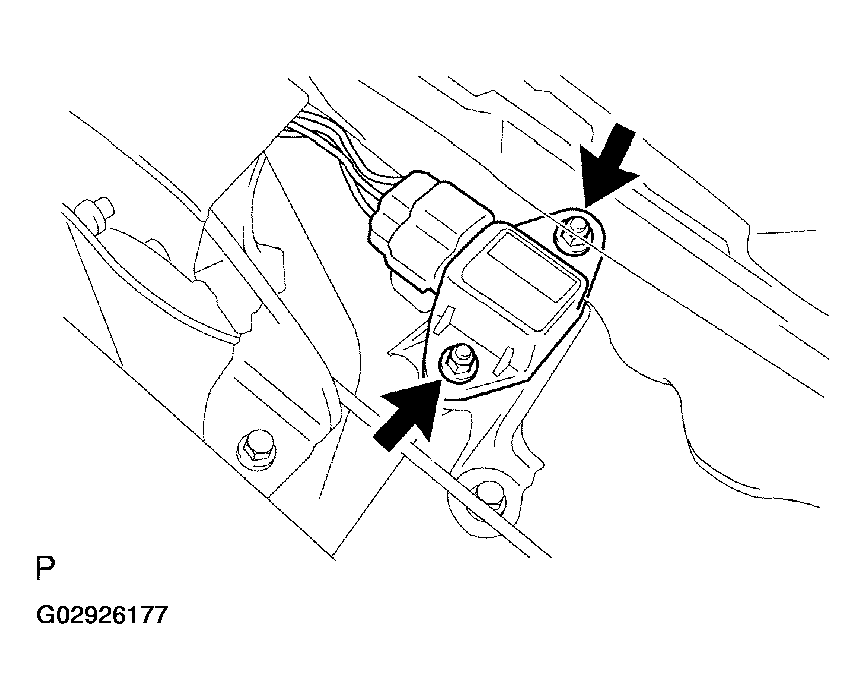

Fig 1: Removing Deceleration Sensor & Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
