Rear Brake Speed Sensor: Components

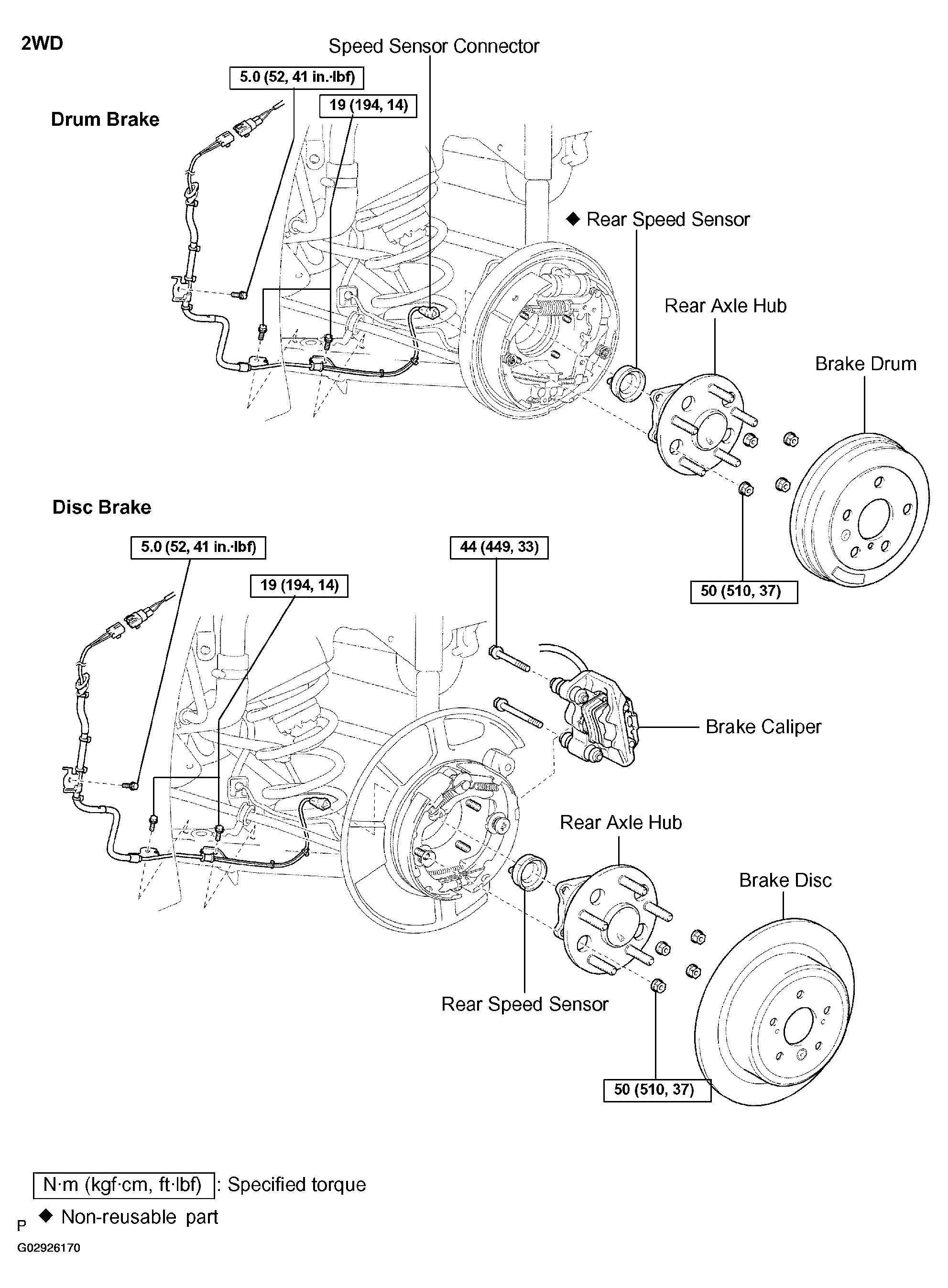

Fig 1: Locating Rear Brake Speed Sensor Components (2WD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

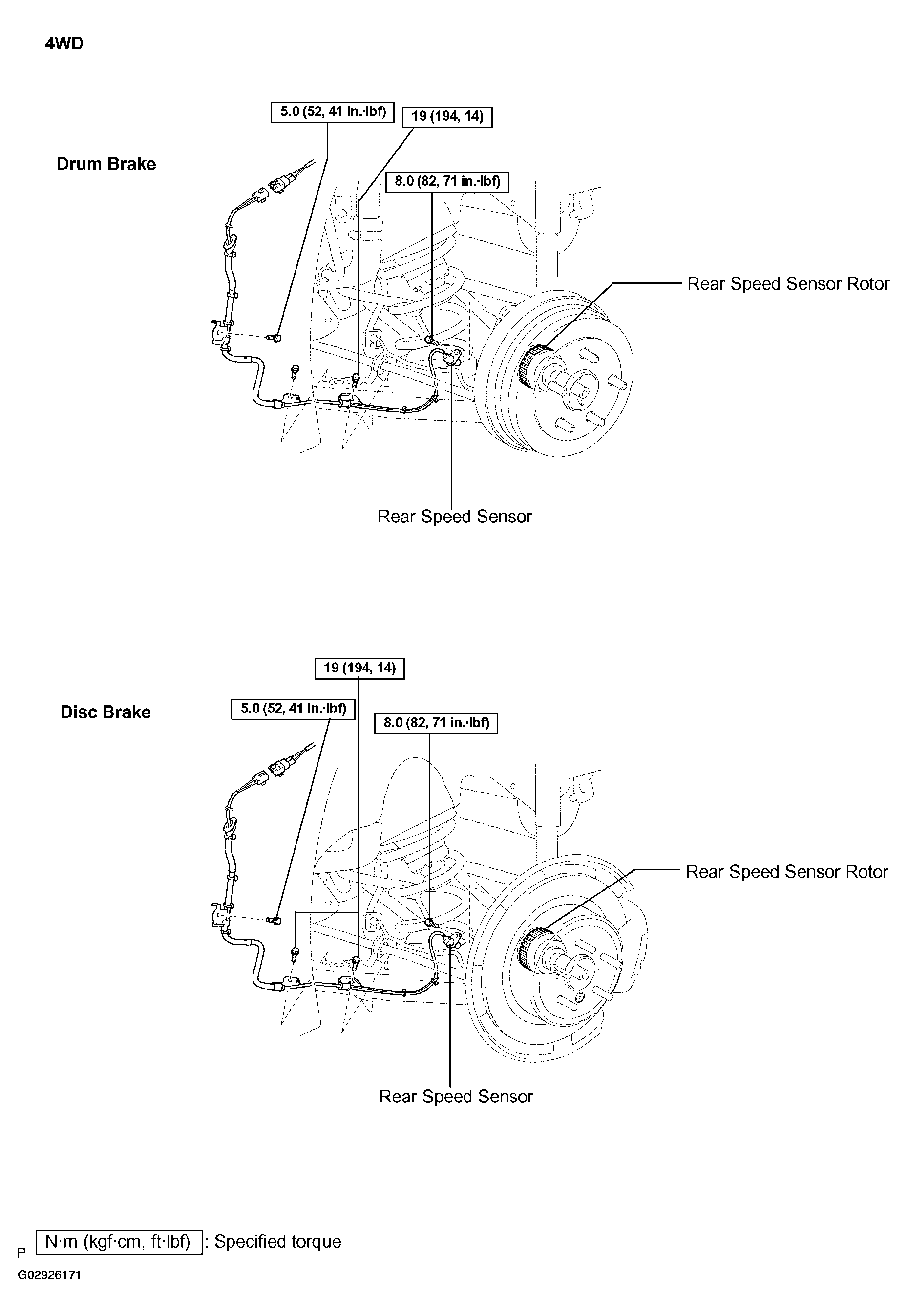

Fig 2: Locating Rear Brake Speed Sensor Components (4WD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
