VSV For Canister Closed Valve (CCV): Components

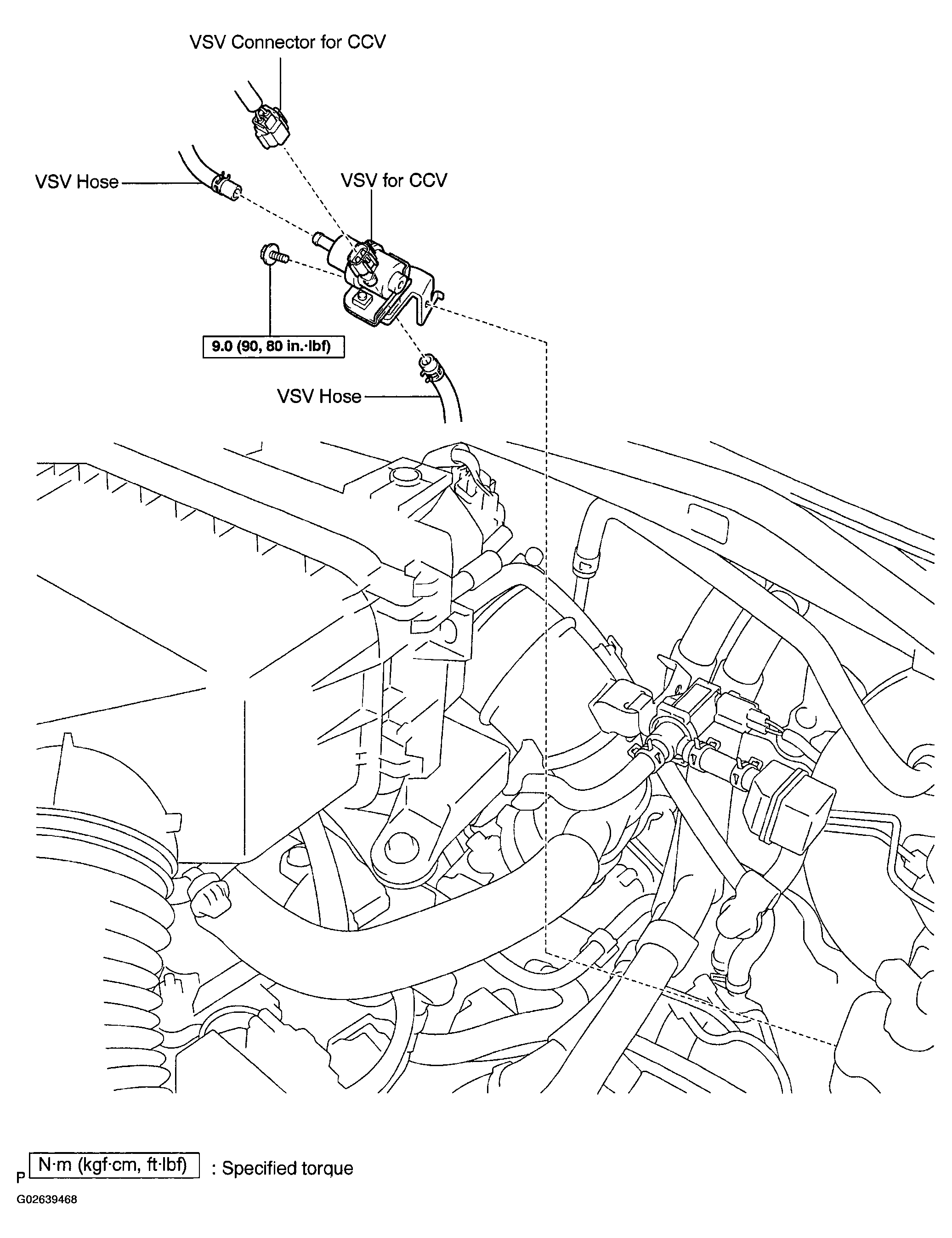

Fig 1: Identifying VSV For Canister Closed Valve (CCV) Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
