Engine Controls - Diagnostics
›
Circuit Inspection
›
ECM Power Source Circuit
›
Wiring Diagram
ECM Power Source Circuit: Wiring Diagram

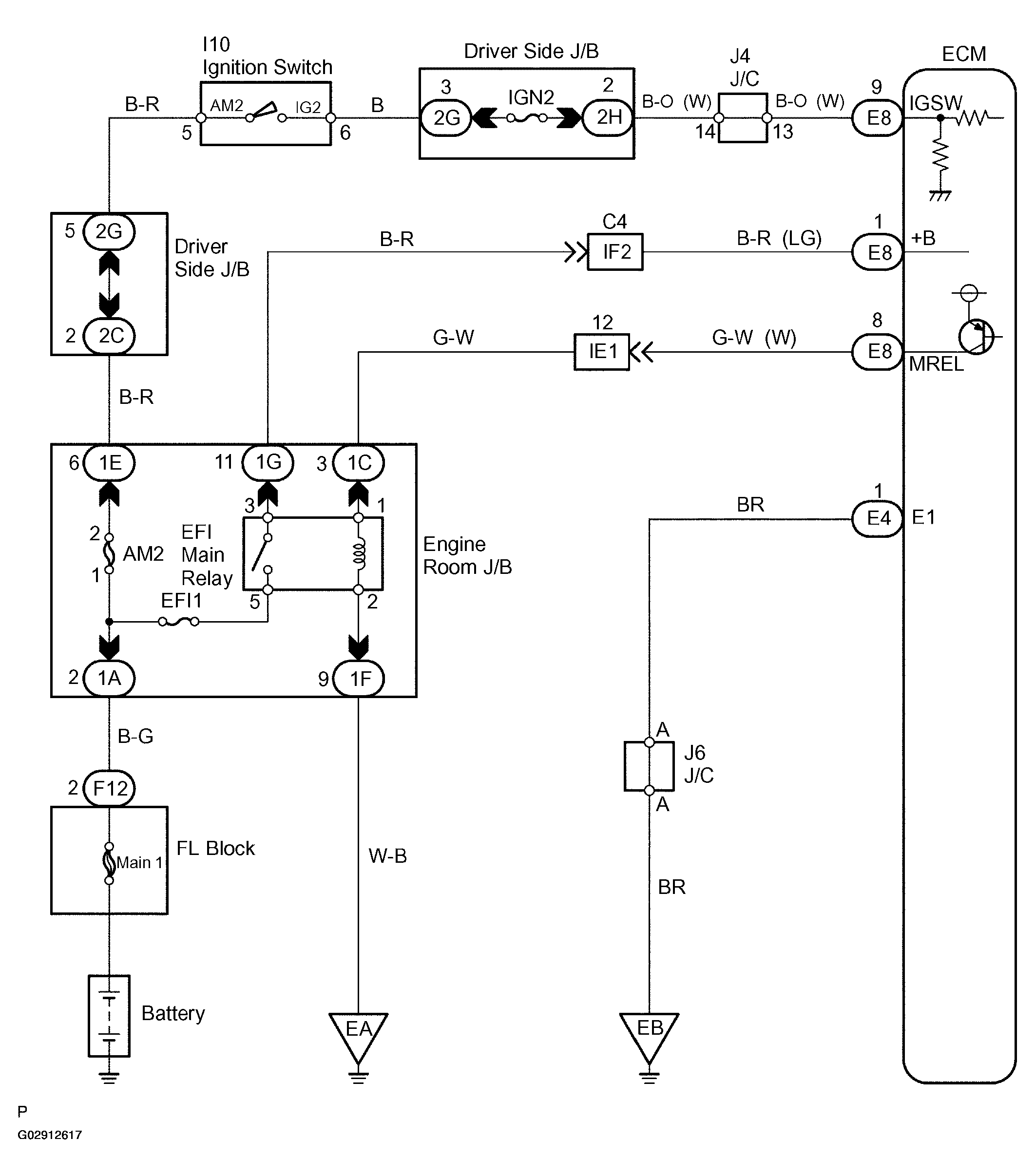

Fig 1: ECM Power Source Wiring Diagram
