2004
›
RAV4 Base, AWD, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Diagnostics
›
Circuit Inspection
›
MIL Circuit Malfunction
›
Wiring Diagram
MIL Circuit Malfunction: Wiring Diagram

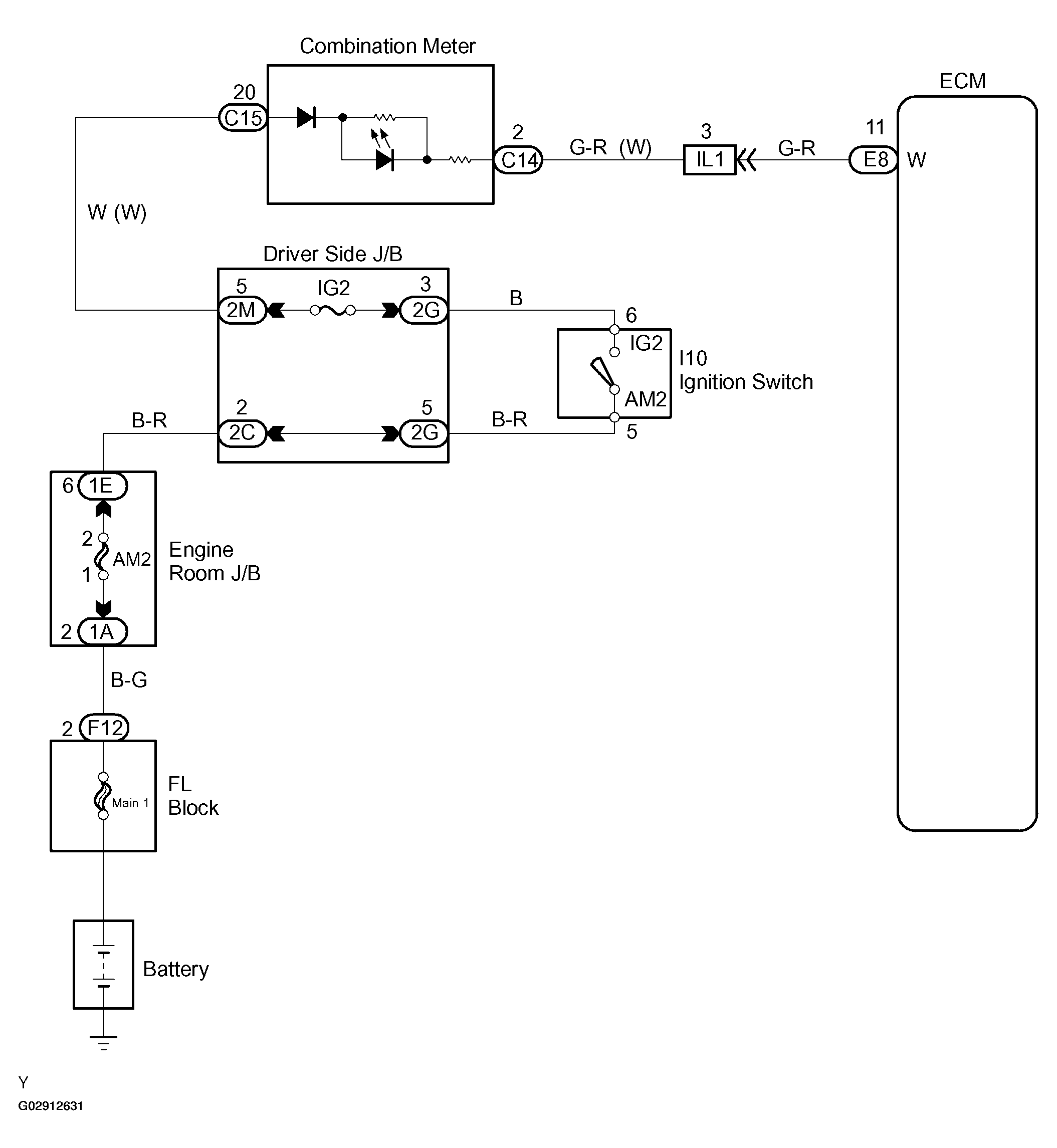

Fig 1: MIL Circuit Wiring Diagram
