Body Control Systems - Diagnostics
›
Circuit Inspection
›
Front Fog Light Relay Circuit
›
Wiring Diagram
Front Fog Light Relay Circuit: Wiring Diagram

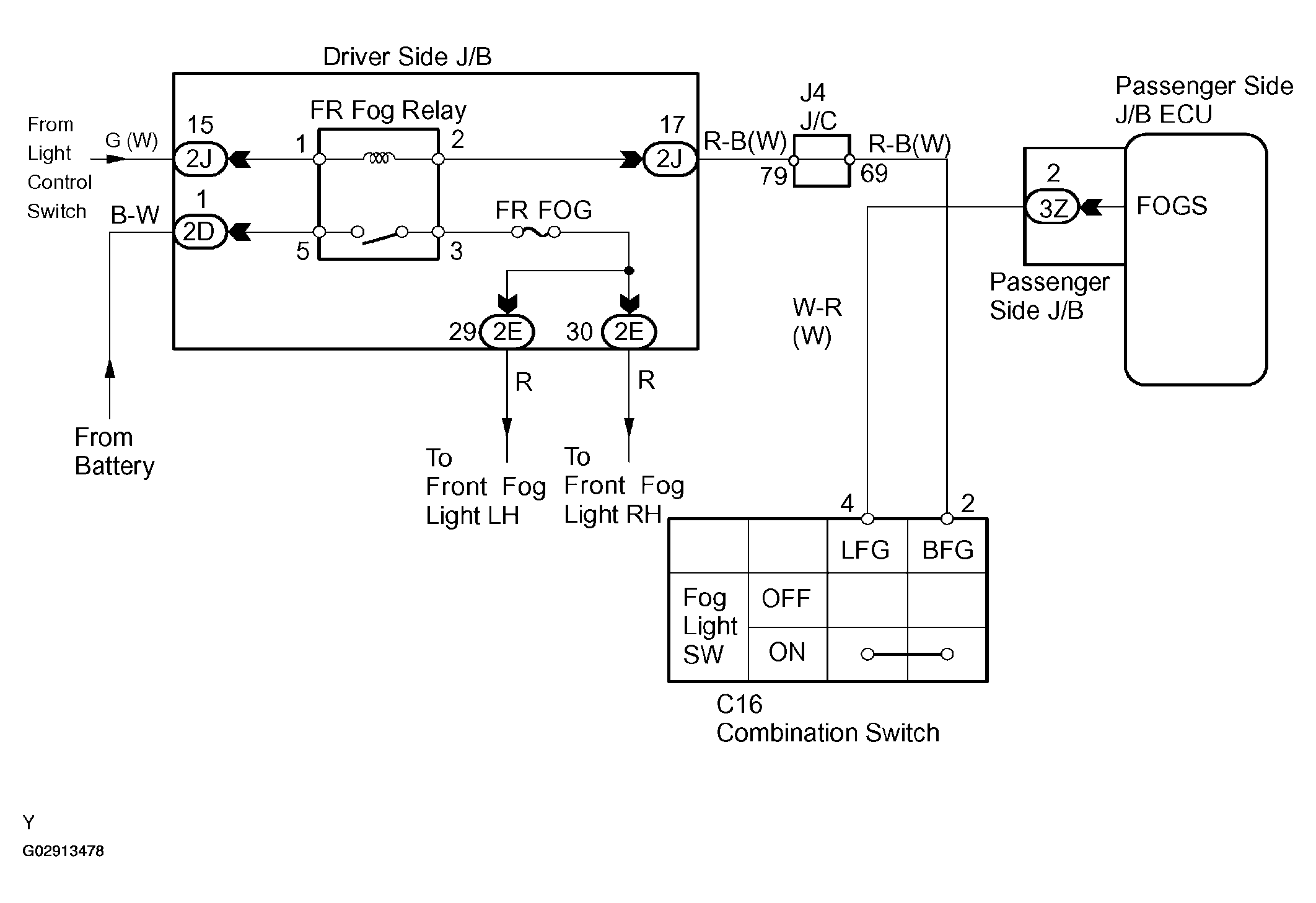

Fig 1: Wiring Diagram Of Front Fog Light Relay Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
