Body Control Systems - Diagnostics
›
Circuit Inspection
›
Headlight Dimmer Switch Circuit
›
Wiring Diagram
Headlight Dimmer Switch Circuit: Wiring Diagram

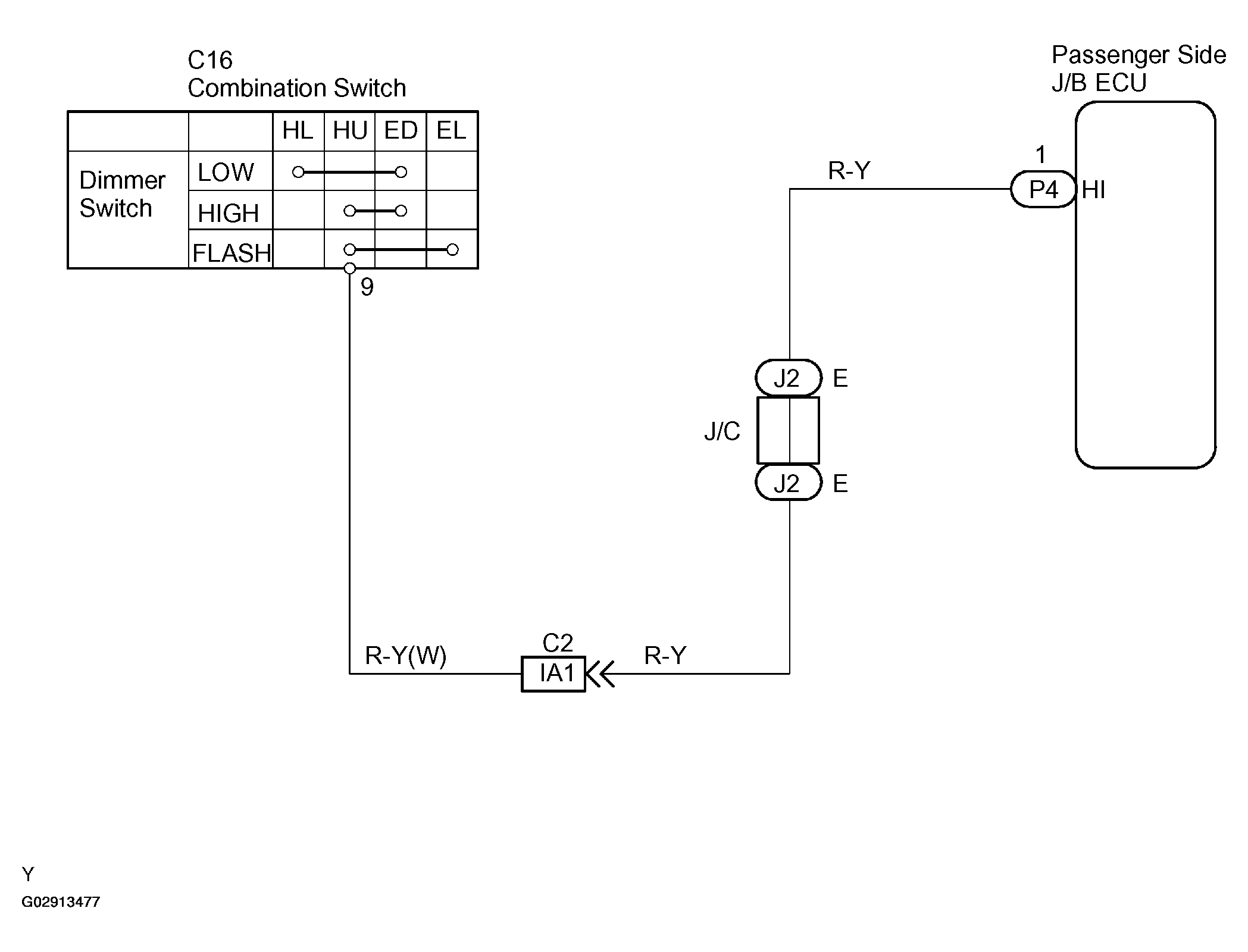

Fig 1: Wiring Diagram Of Headlight Dimmer Switch Circuit
