Light Control Switch Circuit (W/Daytime Running Light): Wiring Diagram

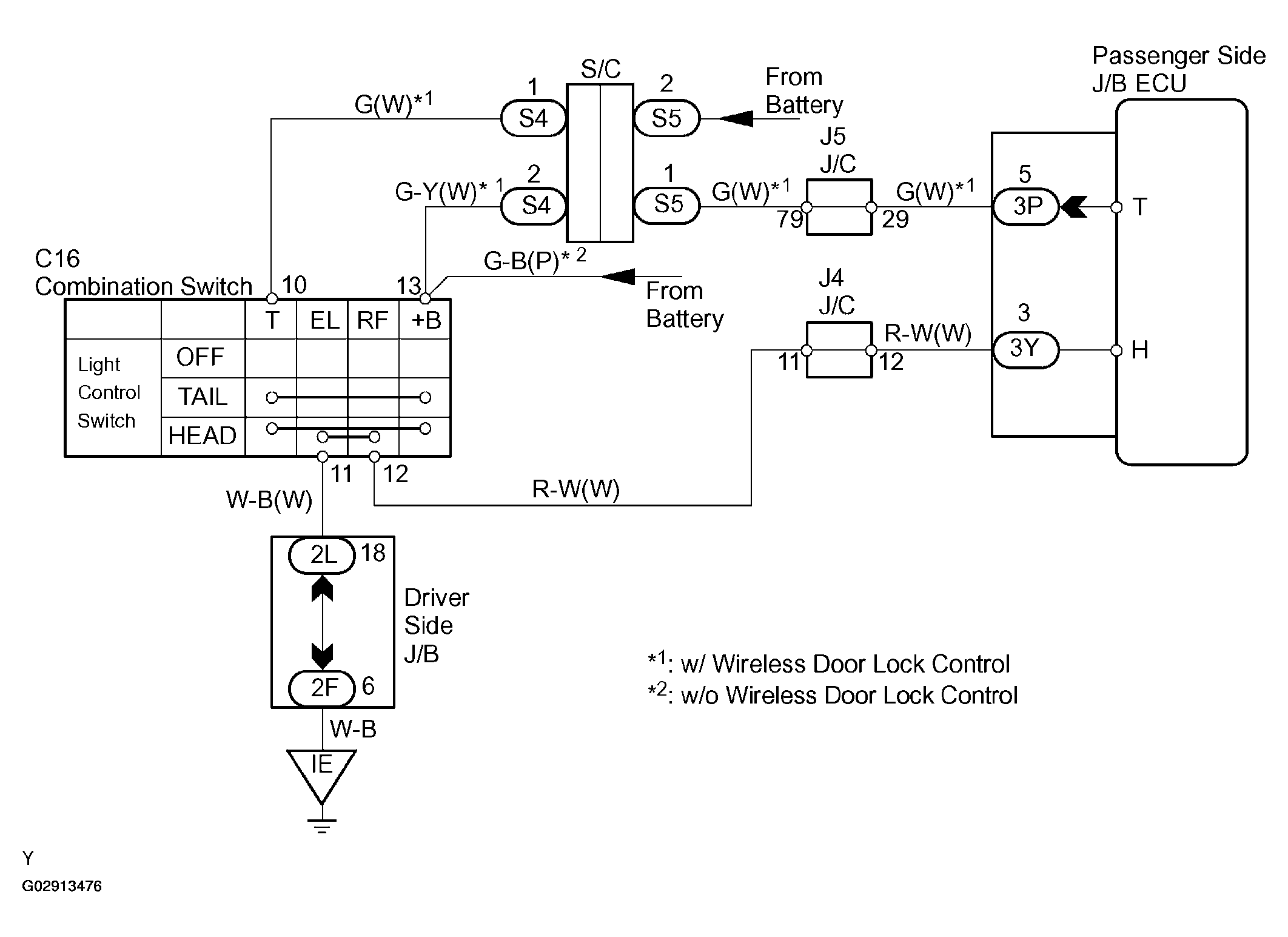

Fig 1: Wiring Diagram Of Light Control Switch Circuit (With Daytime Running Light)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
