Body Outside Moulding: Components

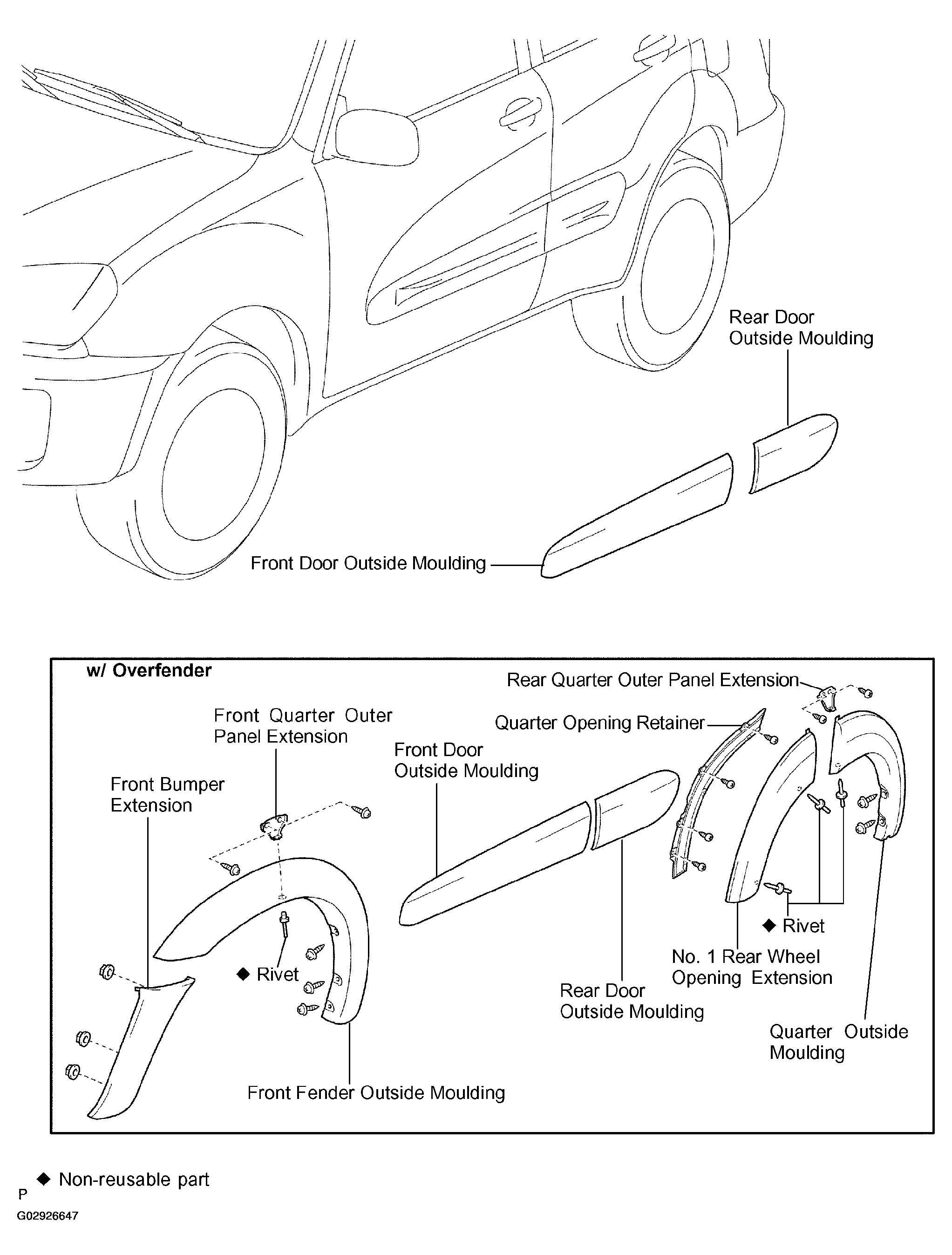

Fig 1: Identifying Body Outside Molding
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
