Toyota
›
2004
›
RAV4 Base, FWD, Automatic
›
Repair and Diagnosis
›
Body & Frame
›
Body, Cab Control Systems
›
Body Control Systems - Diagnostics
›
Circuit Inspection
›
H-LP Relay Circuit
›
Wiring Diagram
H-LP Relay Circuit: Wiring Diagram

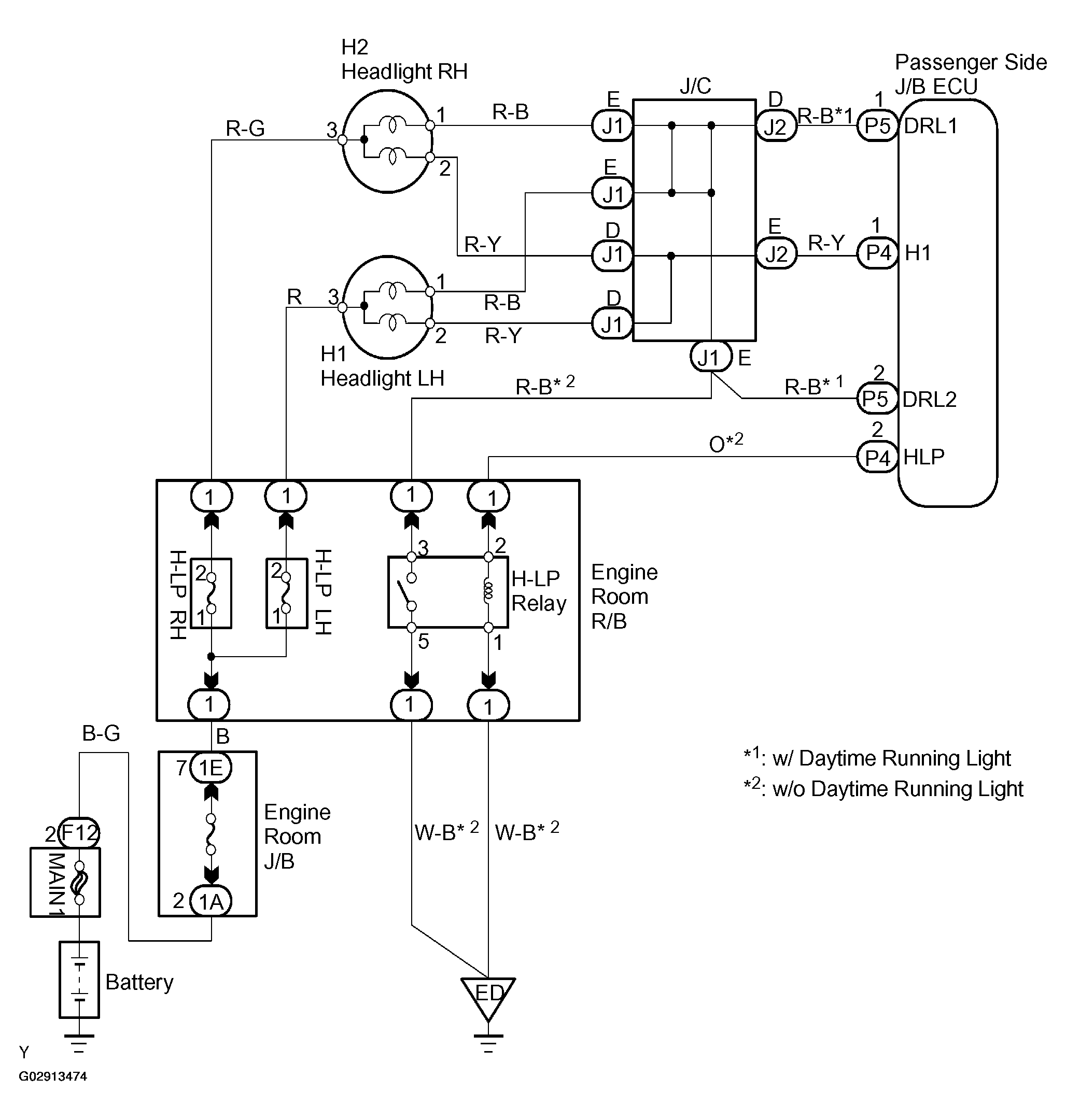

Fig 1: Wiring Diagram Of H-LP Relay Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
