Problem Symptoms Table
›
Indicator lights: COMBINATION METER
Indicator lights: COMBINATION METER

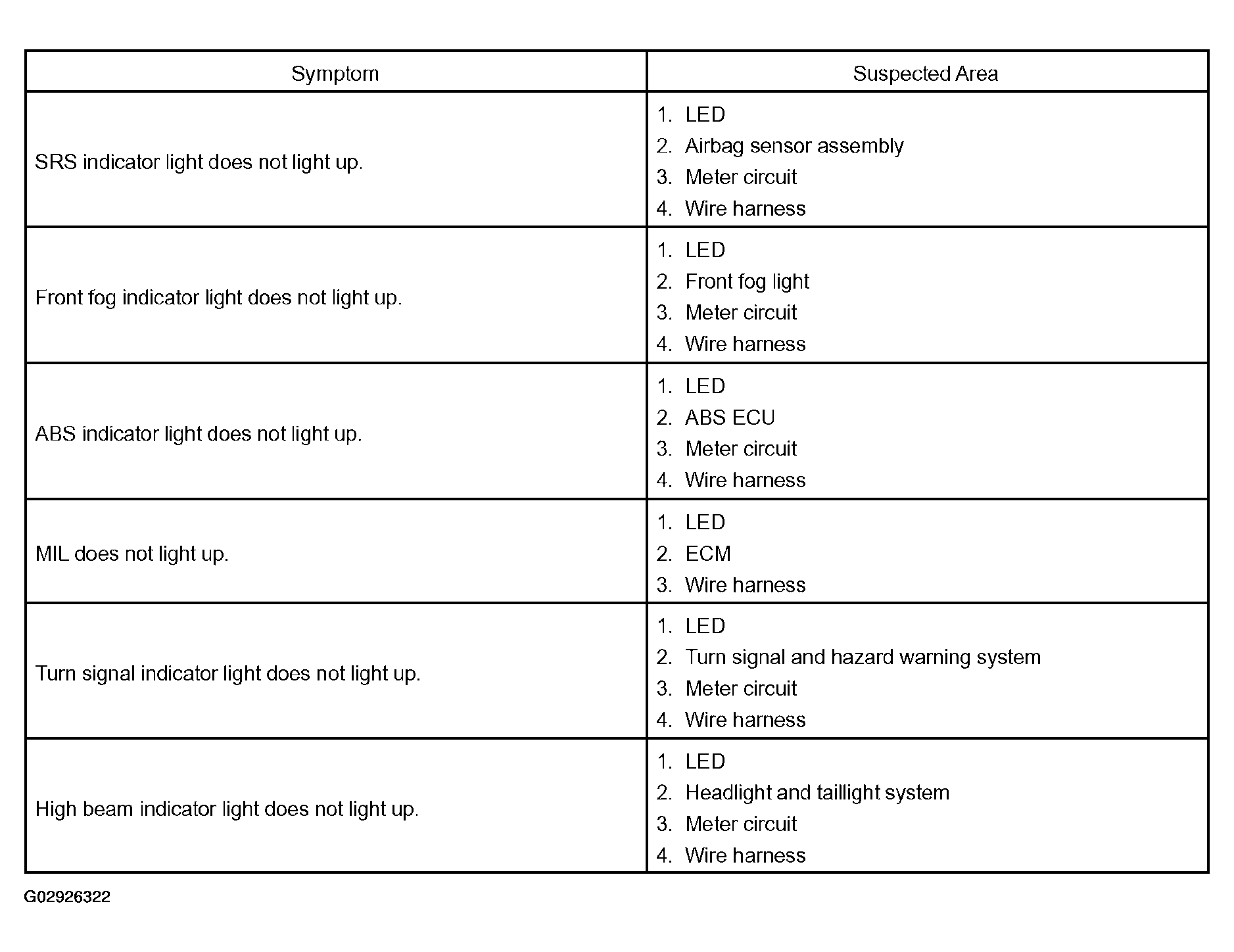

Fig 1: Combination Meter Indicator Lights Troubleshooting Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
