Accelerator Pedal Position Sensor: Components

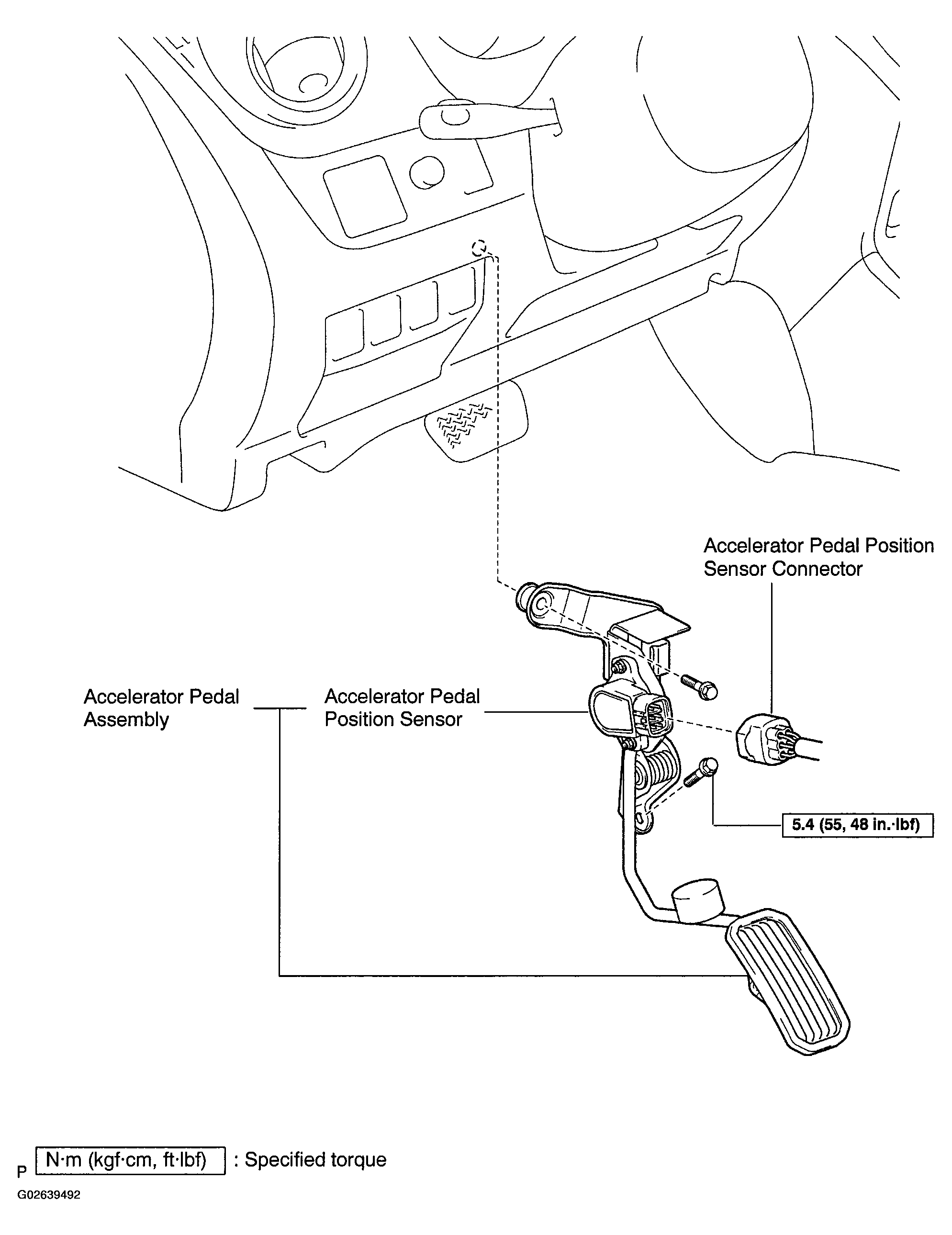

Fig 1: Identifying Accelerator Pedal Position Sensor Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
