Fuel Tank And Line: Components

CAUTION:

Always use new gaskets when replacing the fuel tank or component parts.
Apply the proper torque to all the parts to be tightened.

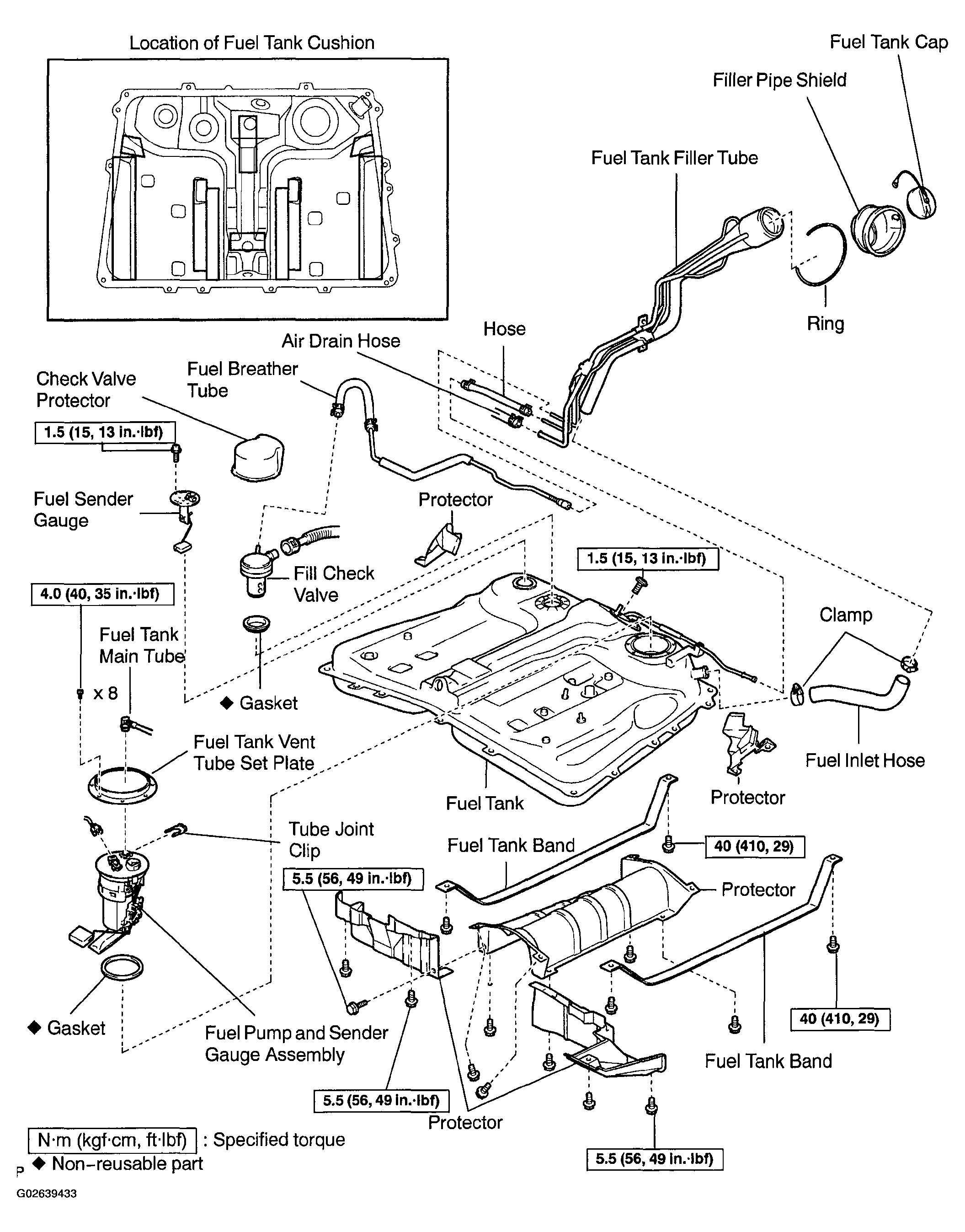

Fig 1: Identifying Fuel Tank And Line Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
