Customer Problem Analysis Check
Customer Problem Analysis Check

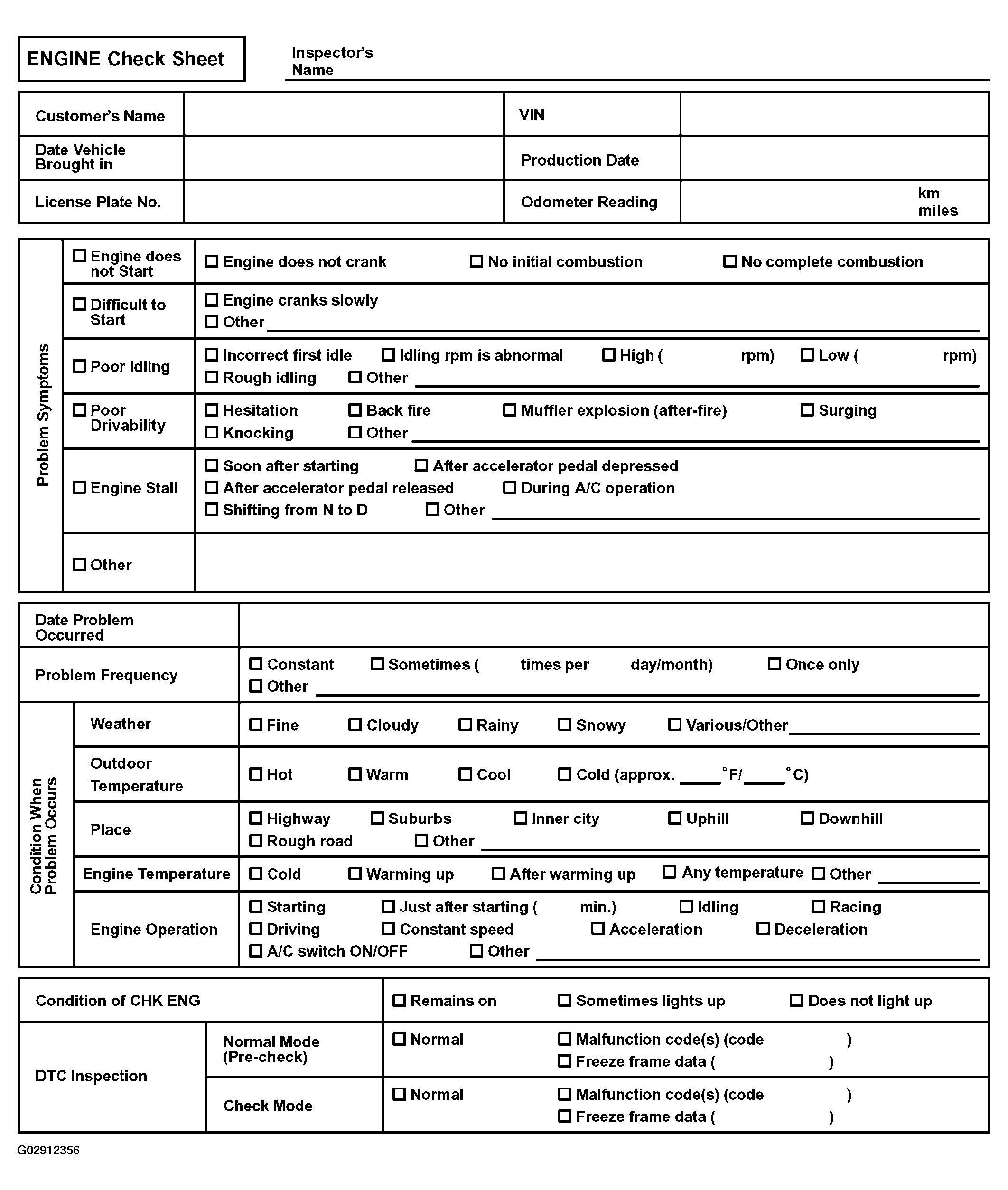

Fig 1: Analysis Check Sheet
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
