Location
Ignition Switch & Key Unlock Warning System: Location

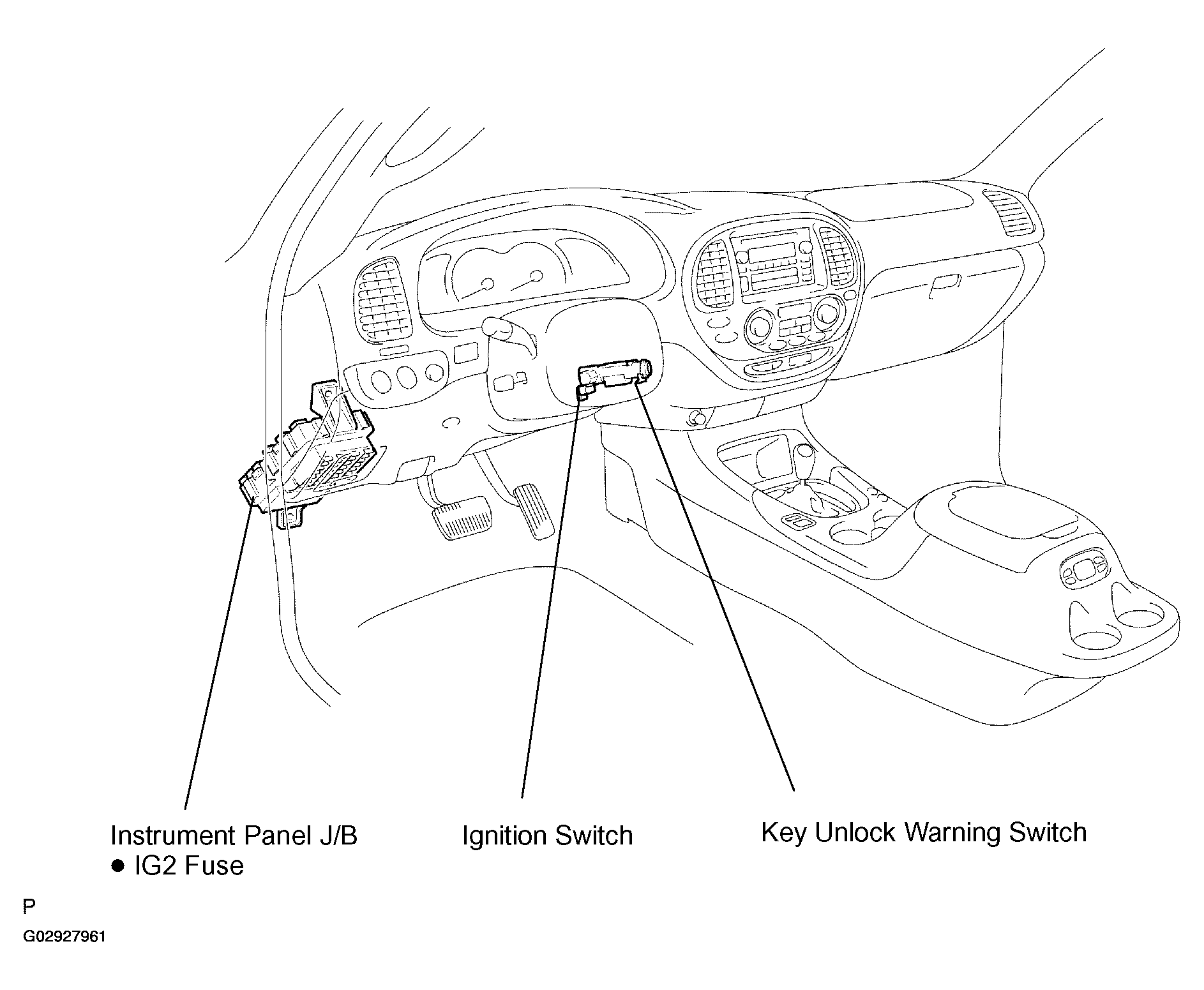

Fig 1: Identifying Ignition Switch And Key Unlock Warning Switch Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
