Driver Door Control System - Diagnostics
›
Problem Symptoms Table
›
Power Window Control System
Power Window Control System

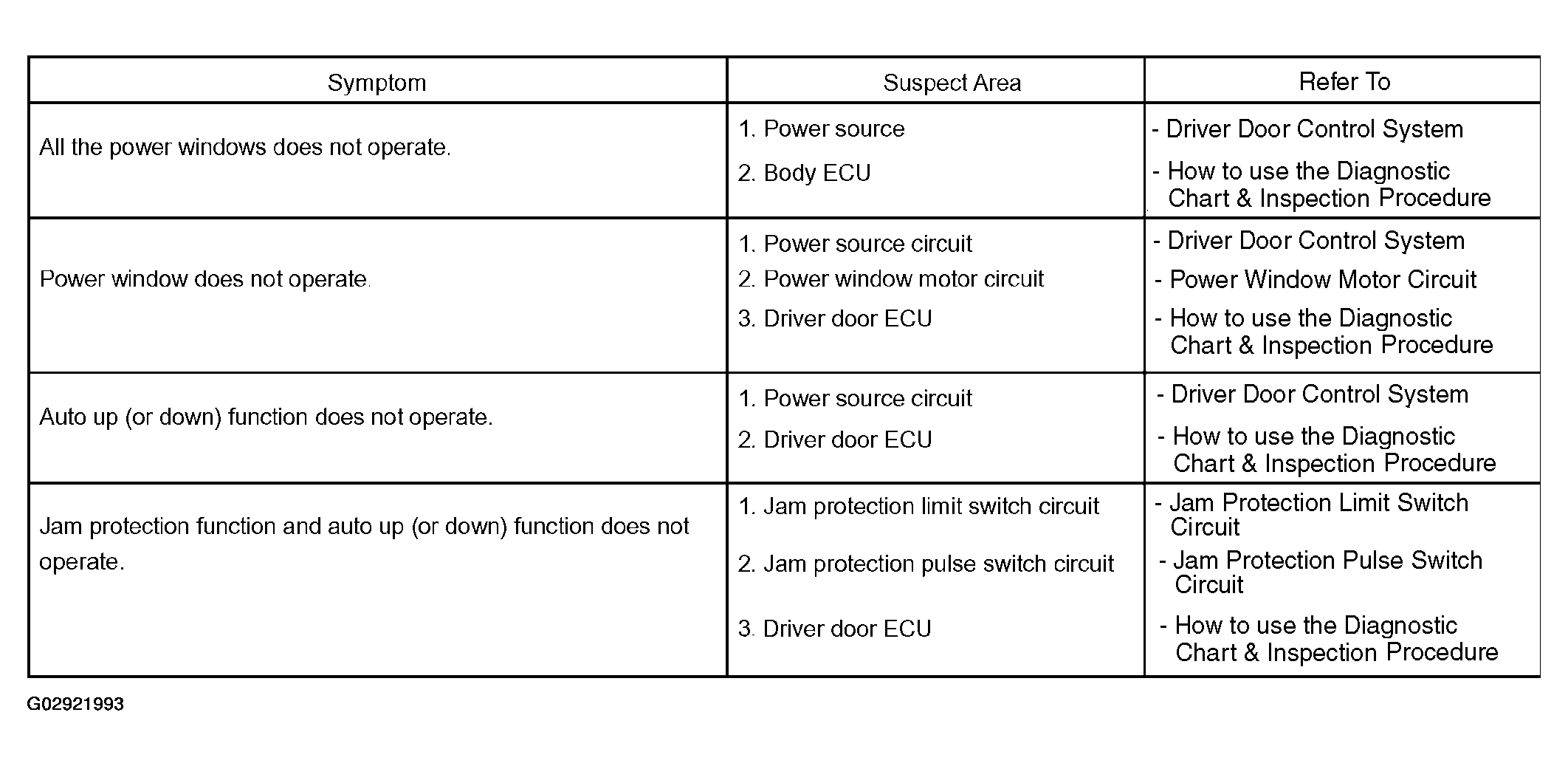

Fig 1: Problem Symptom Table (Power Window Control System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
