Parts Layout And Schematic Drawing: Location

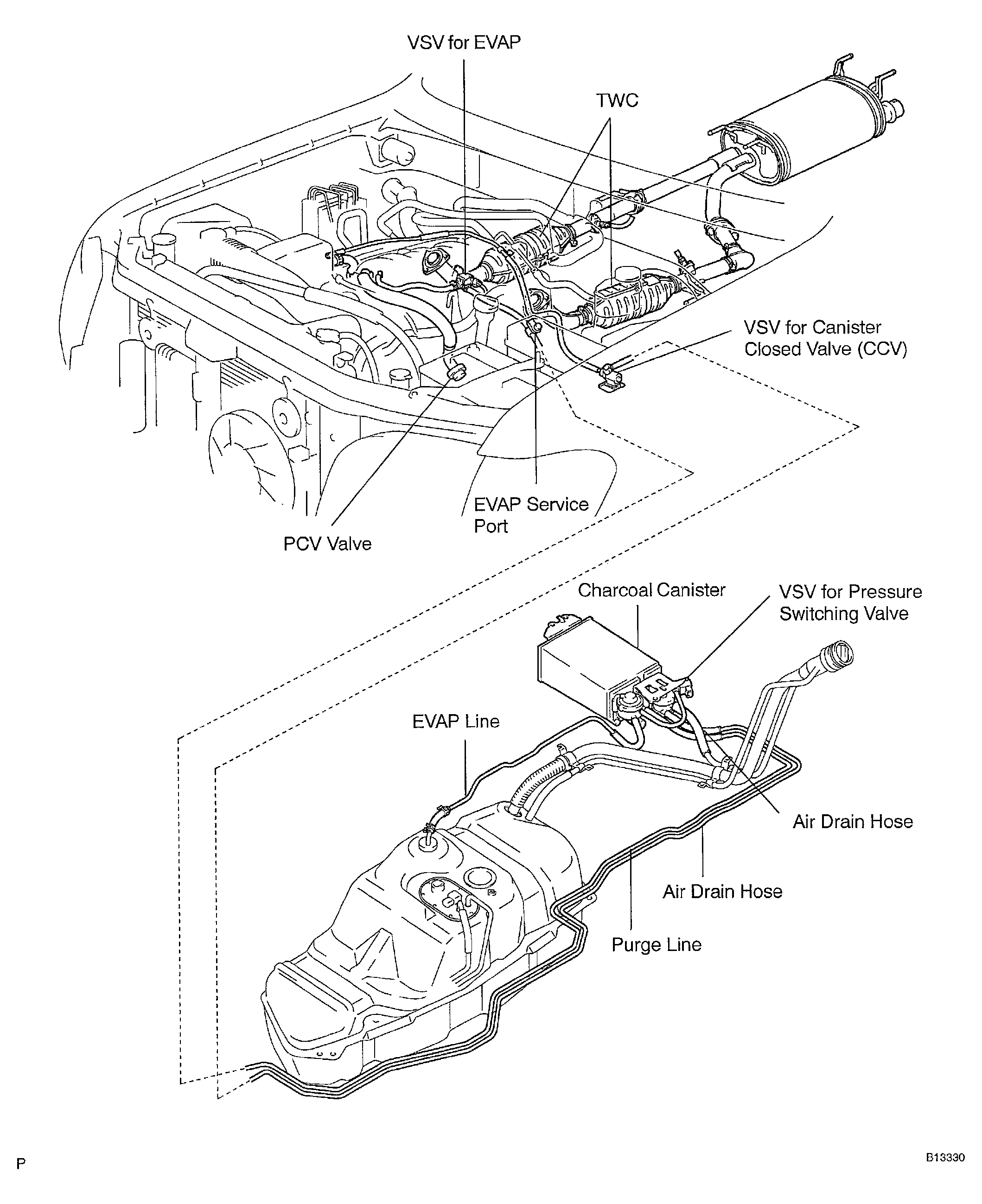

Fig 1: Identifying Emission Control Components Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
