Repair Instructions
›
Vehicle Lift And Support Locations
Vehicle Lift And Support Locations

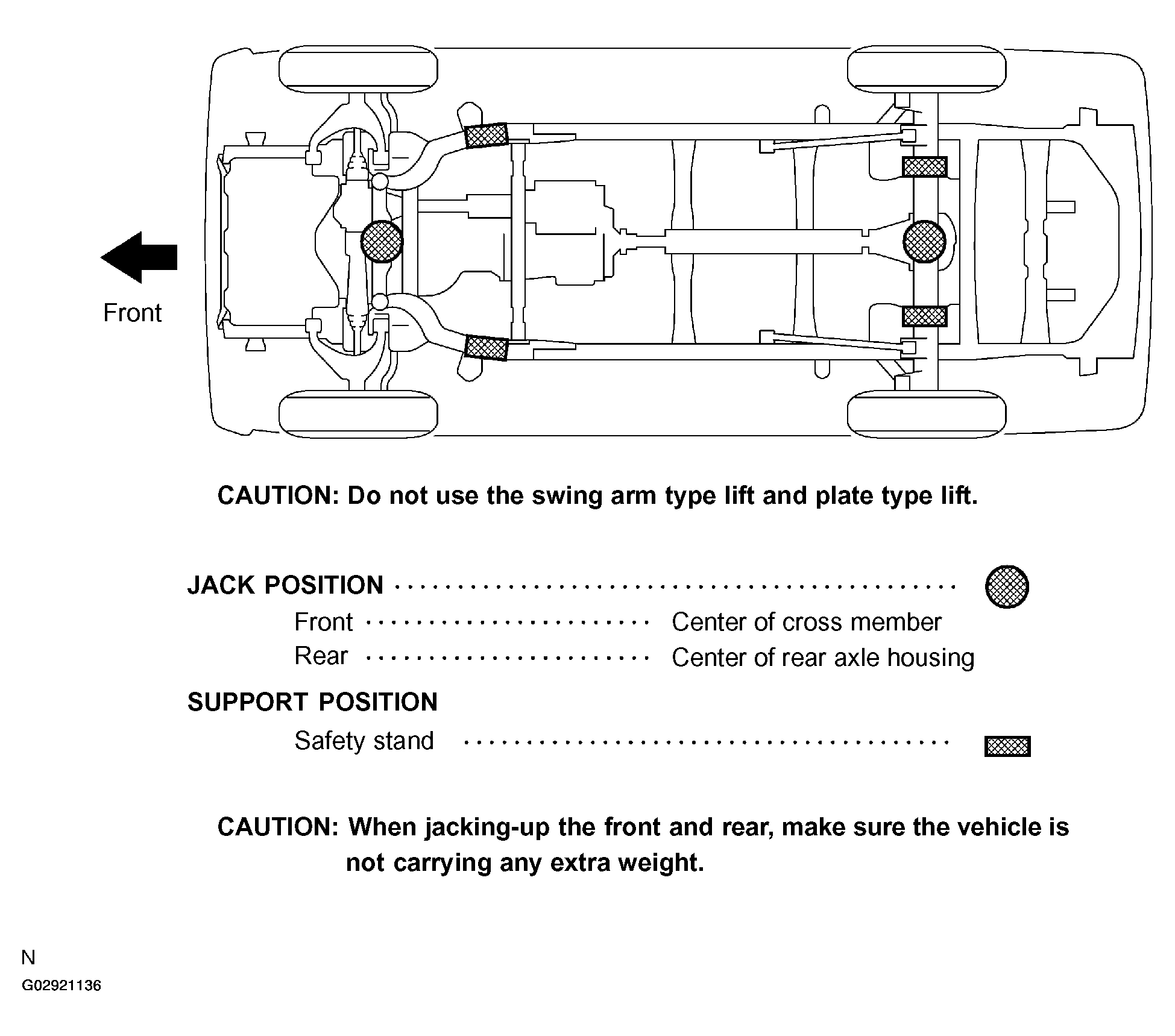

Fig 1: Identifying Jack & Support Positions For Vehicle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
