Automatic Transmission System (Operation)
›
Operation
Automatic Transmission System (Operation): Operation

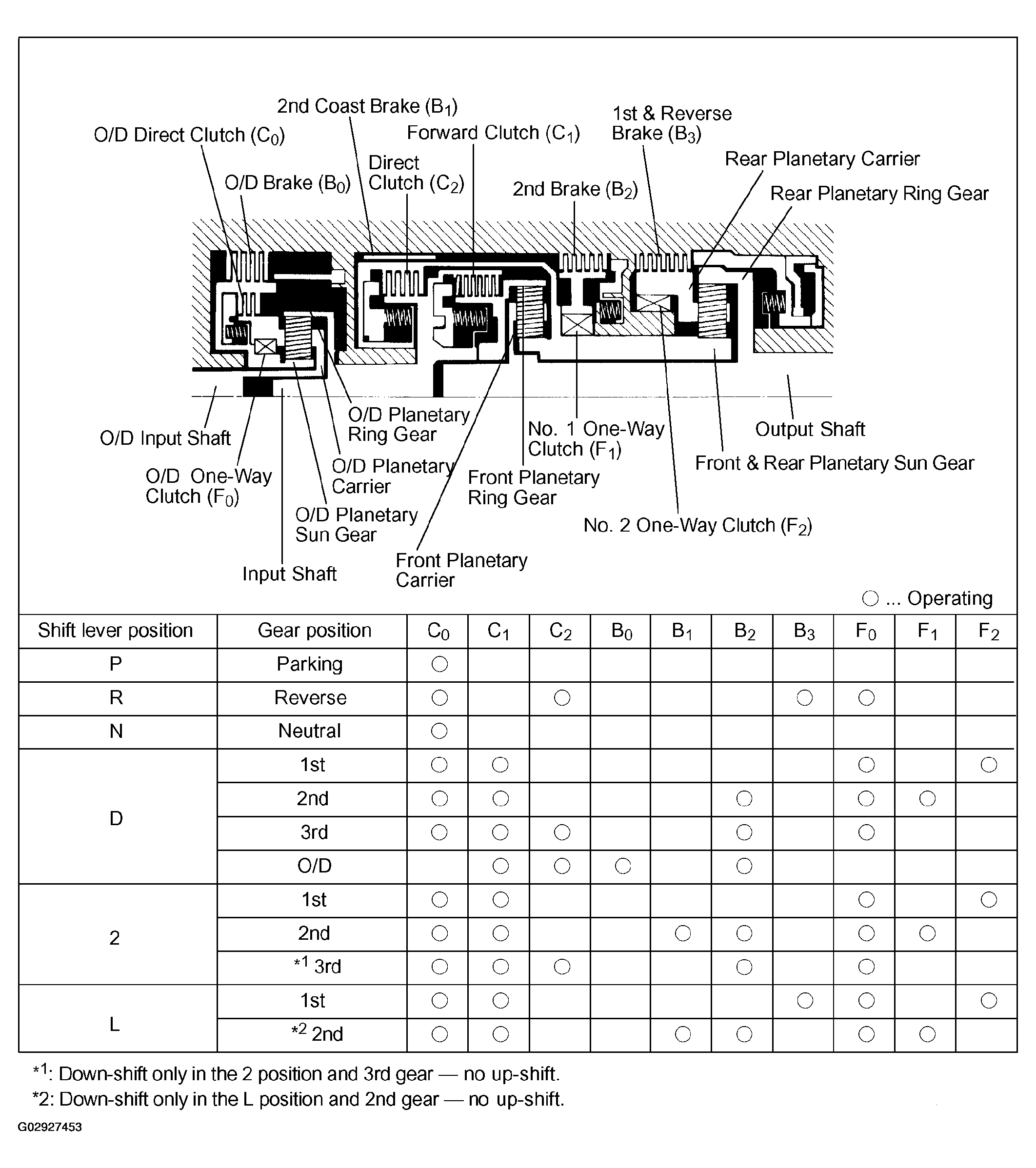

Fig 1: Identifying Band/Clutch/Brake Application Operation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
