Terminals Of Ecu
Terminals Of Ecu

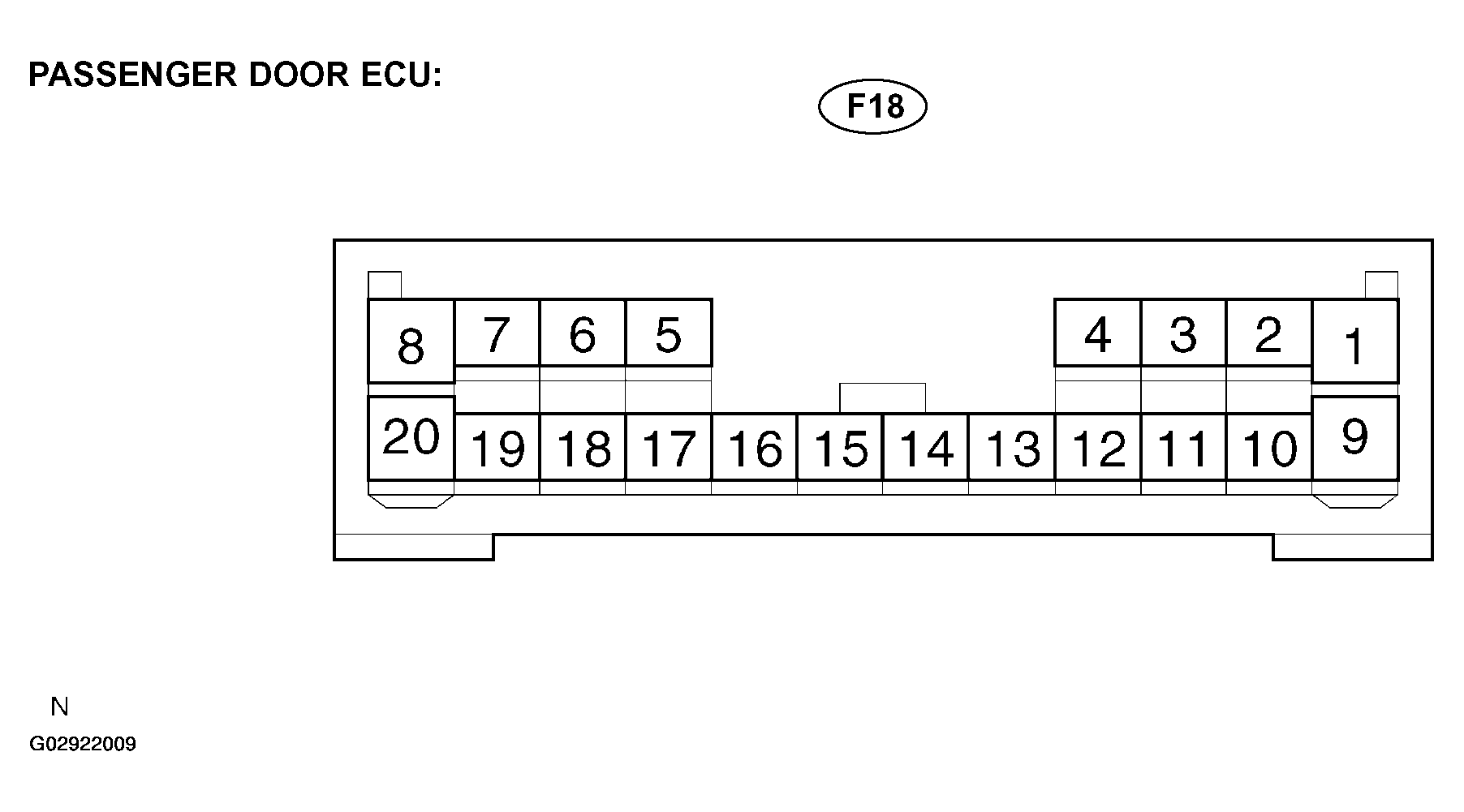

Fig 1: ECU Connector View & Terminal Identification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

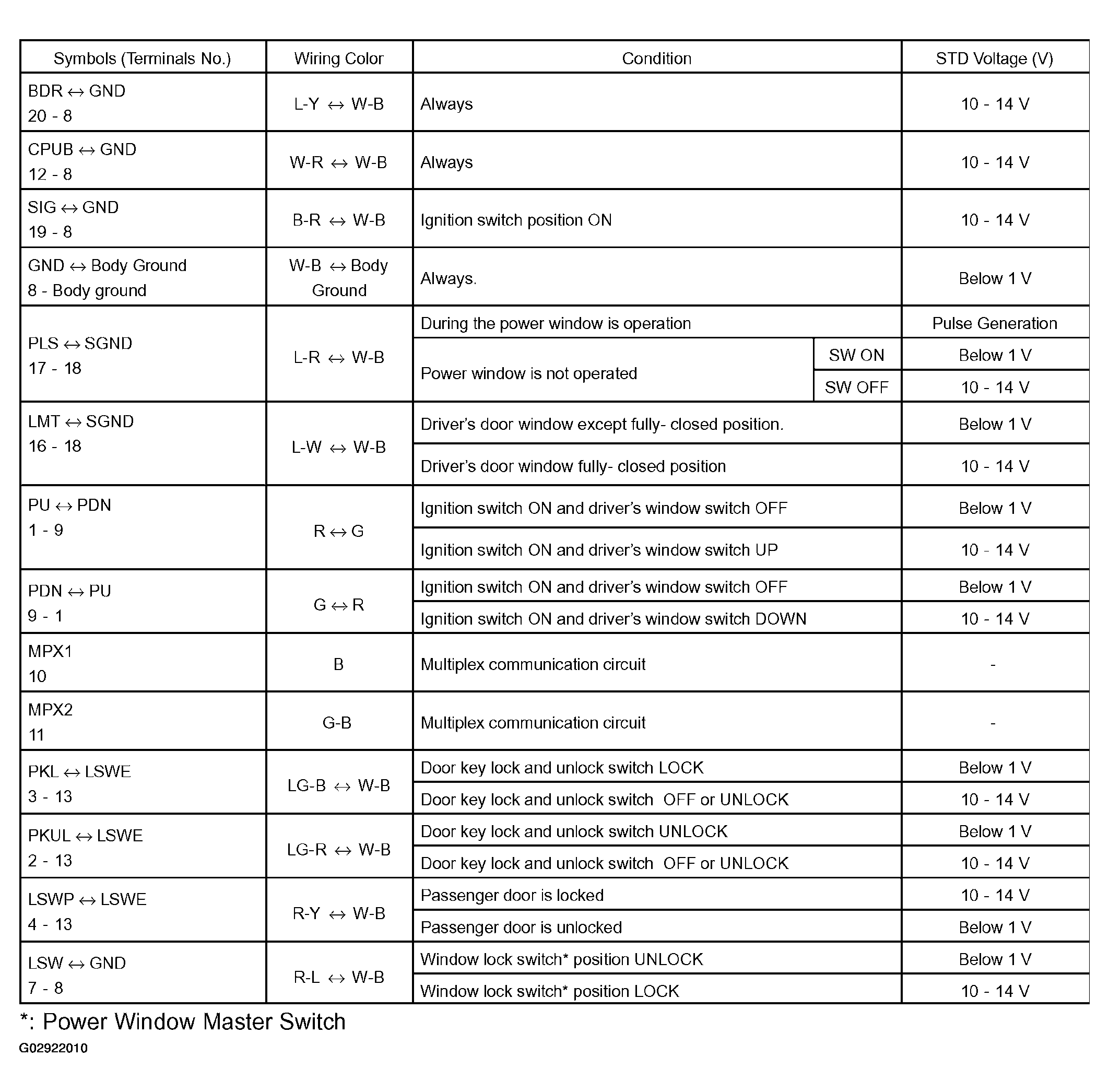

Fig 2: Identifying ECU Circuits & Volage Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

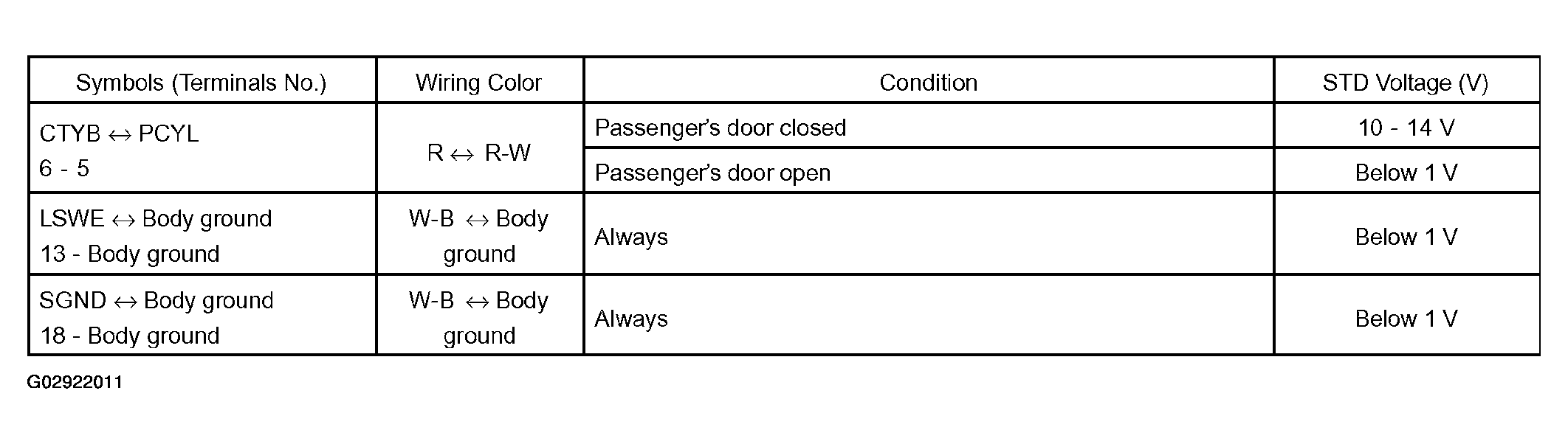

Fig 3: Identifying ECU Circuits & Volage Specifications Cont.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
