Automatic Transmission Unit: Components

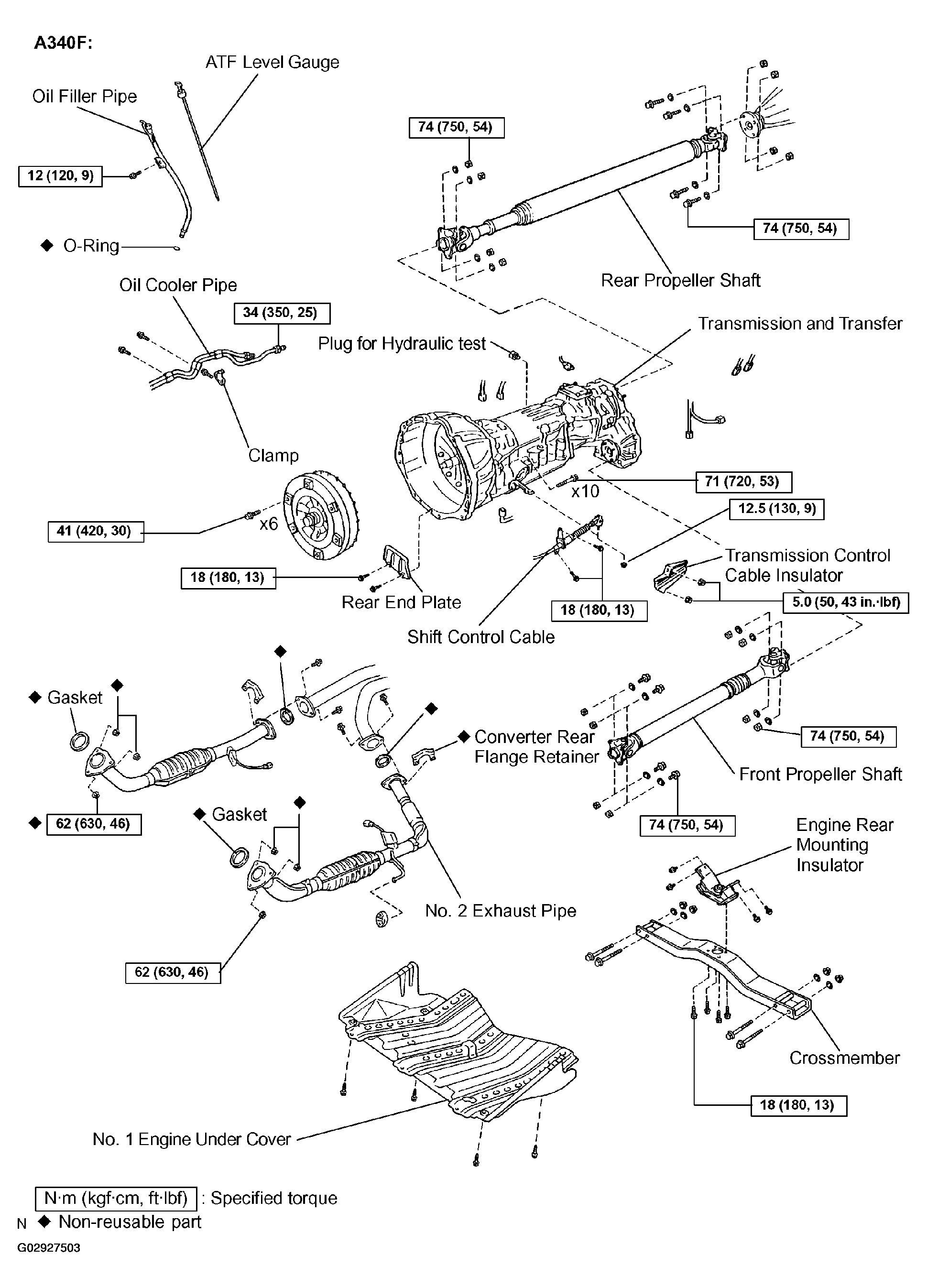

Fig 1: Locating Automatic Transmission Unit Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

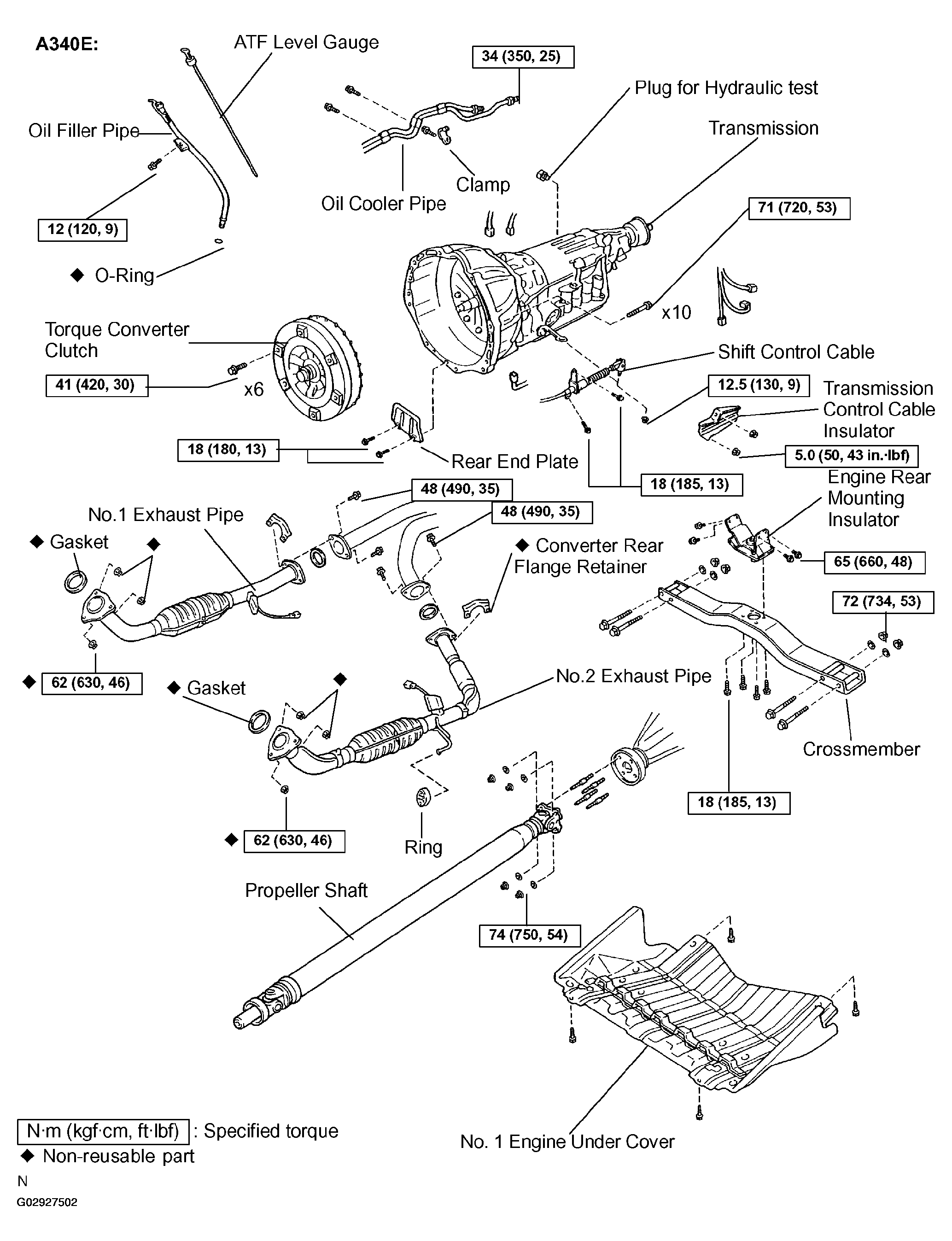

Fig 2: Locating Automatic Transmission Unit Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
