Power Window Control System - Diagnosis
›
Auto Up/Down Function Does Not Operate
›
Wiring Diagram
Auto Up/Down Function Does Not Operate: Wiring Diagram

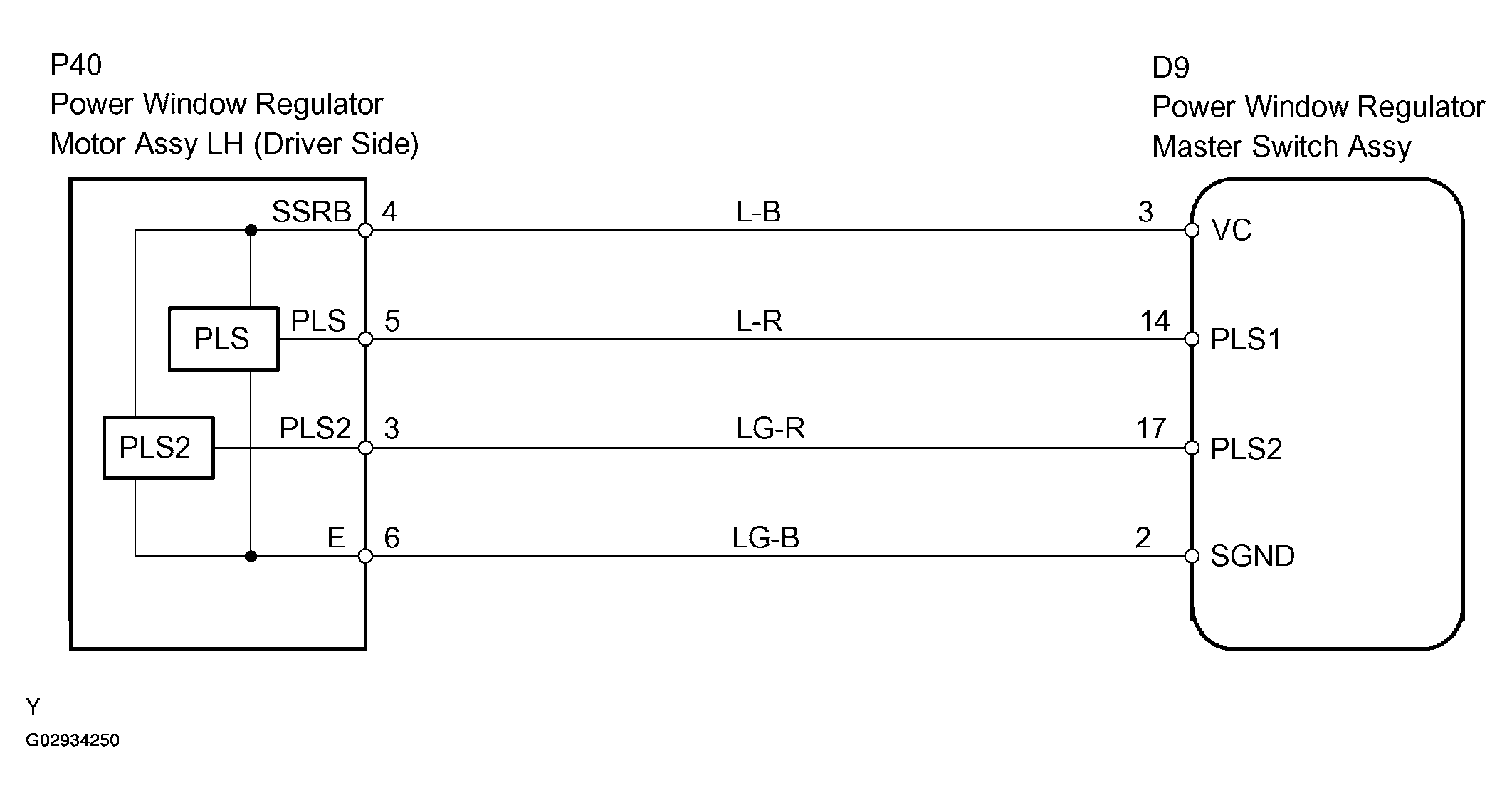

Fig 1: Auto Up/Down Function Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
