Cigarette Lighter: Replacement

  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER NO. 1 (See  INSTRUMENT PANEL/METER  )
  2. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER NO. 2 (See  INSTRUMENT PANEL/METER  )
  3. REMOVE SHIFT LEVER KNOB SUB-ASSY (See  INSTRUMENT PANEL/METER  )
  4. REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING ASSY (See  INSTRUMENT PANEL/METER  )
  5. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CENTER (See  INSTRUMENT PANEL/METER  )
  6. REMOVE CIGARETTE LIGHTER COVER
    1. Release the 2 claw fittings and remove the cigarette lighter cover.

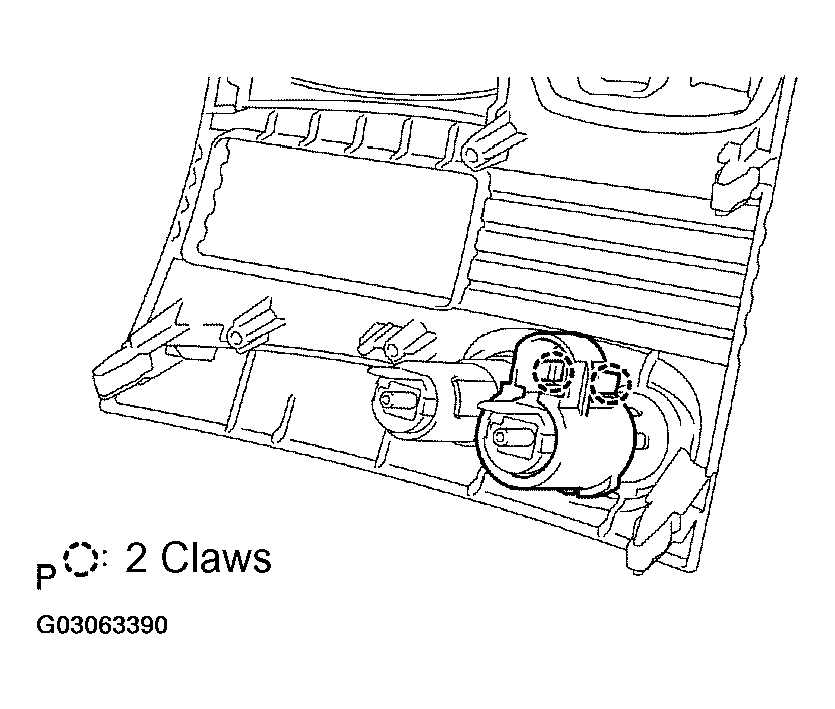

    Fig 1: Removing Cigarette Lighter Cover
    G03063390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE CIGARETTE LIGHTER ASSY
    1. Remove the cigarette lighter knob and element assy.
    2. Release the 2 claw fittings and remove the cigarette lighter assy.
    Fig 2: Removing Cigarette Lighter Assy
    G03063391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
