Instrument Panel/Meter: Components

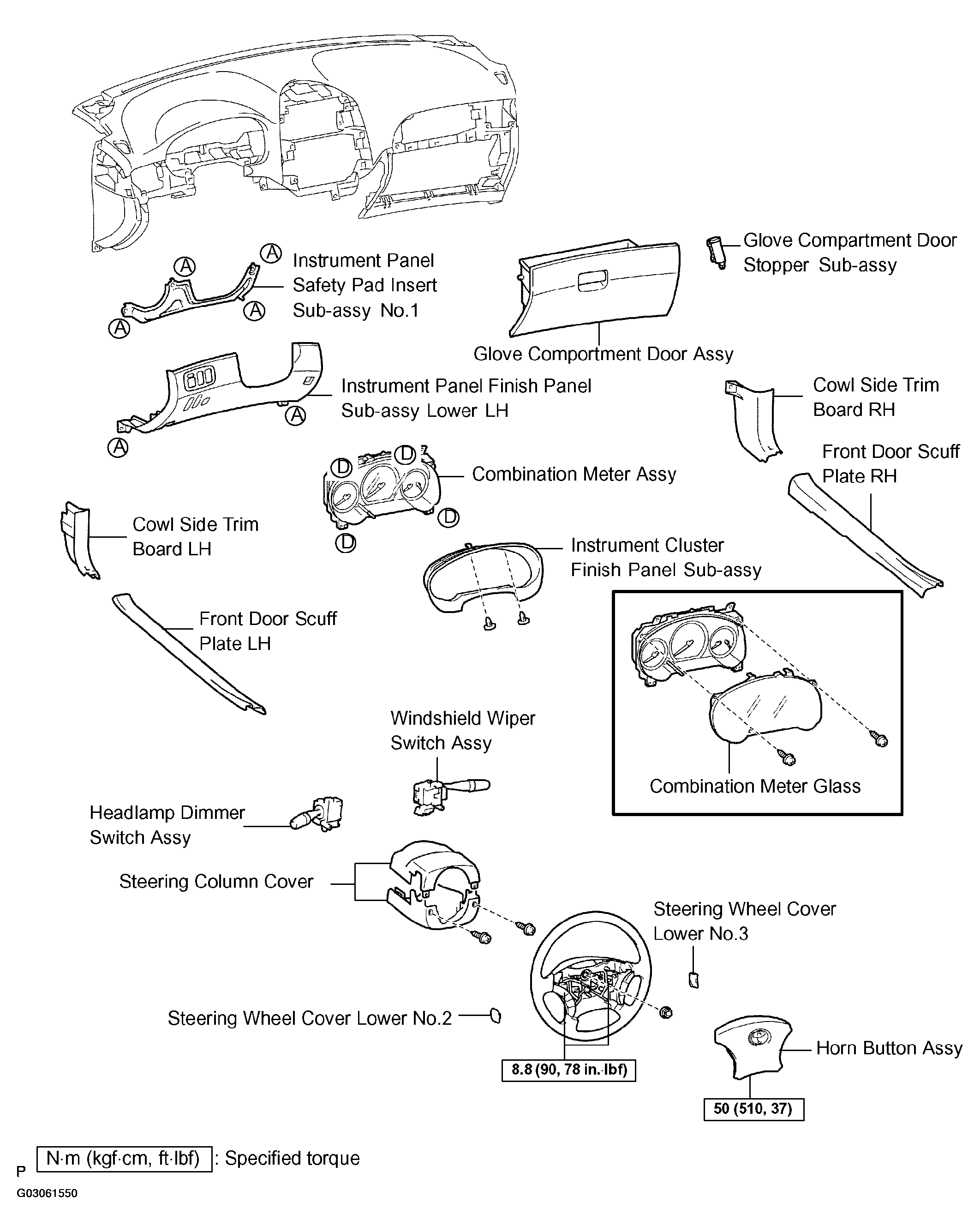

Fig 1: Exploded View Of Instrument Panel/Meter Components (1 Of 3)
G03061550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

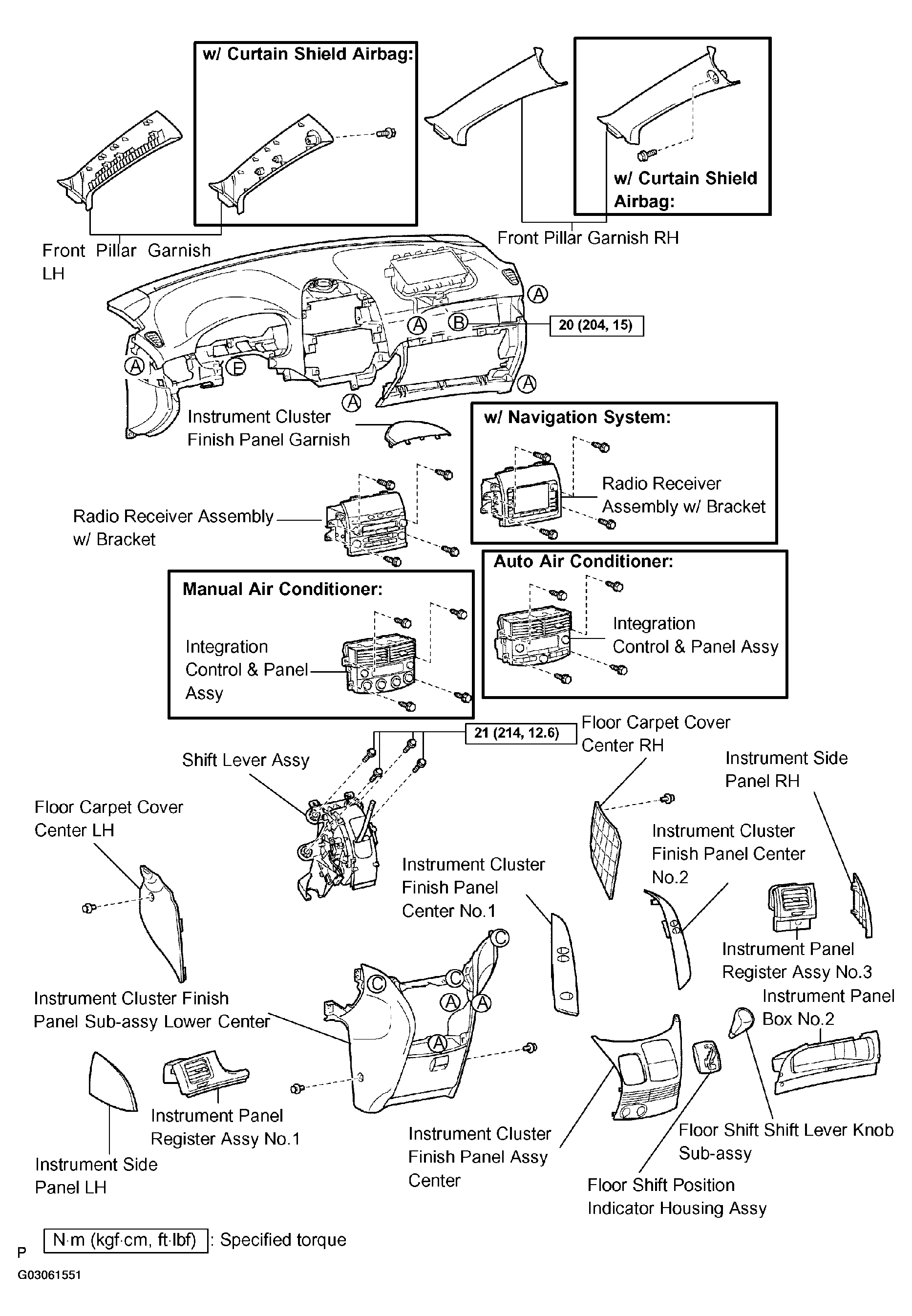

Fig 2: Exploded View Of Instrument Panel/Meter Components (2 Of 3)
G03061551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

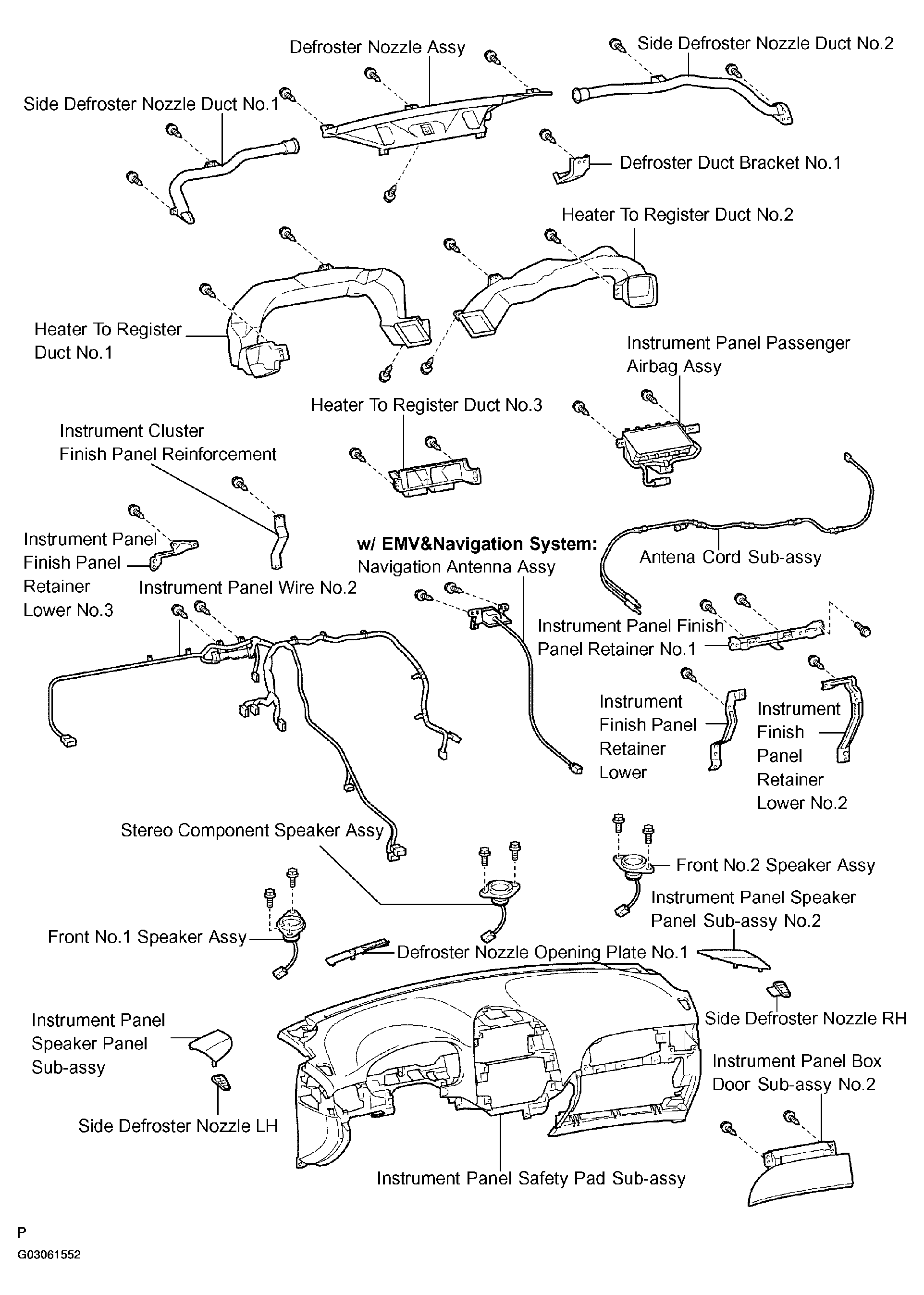

Fig 3: Exploded View Of Instrument Panel/Meter Components (3 Of 3)
G03061552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
