Circuit Description

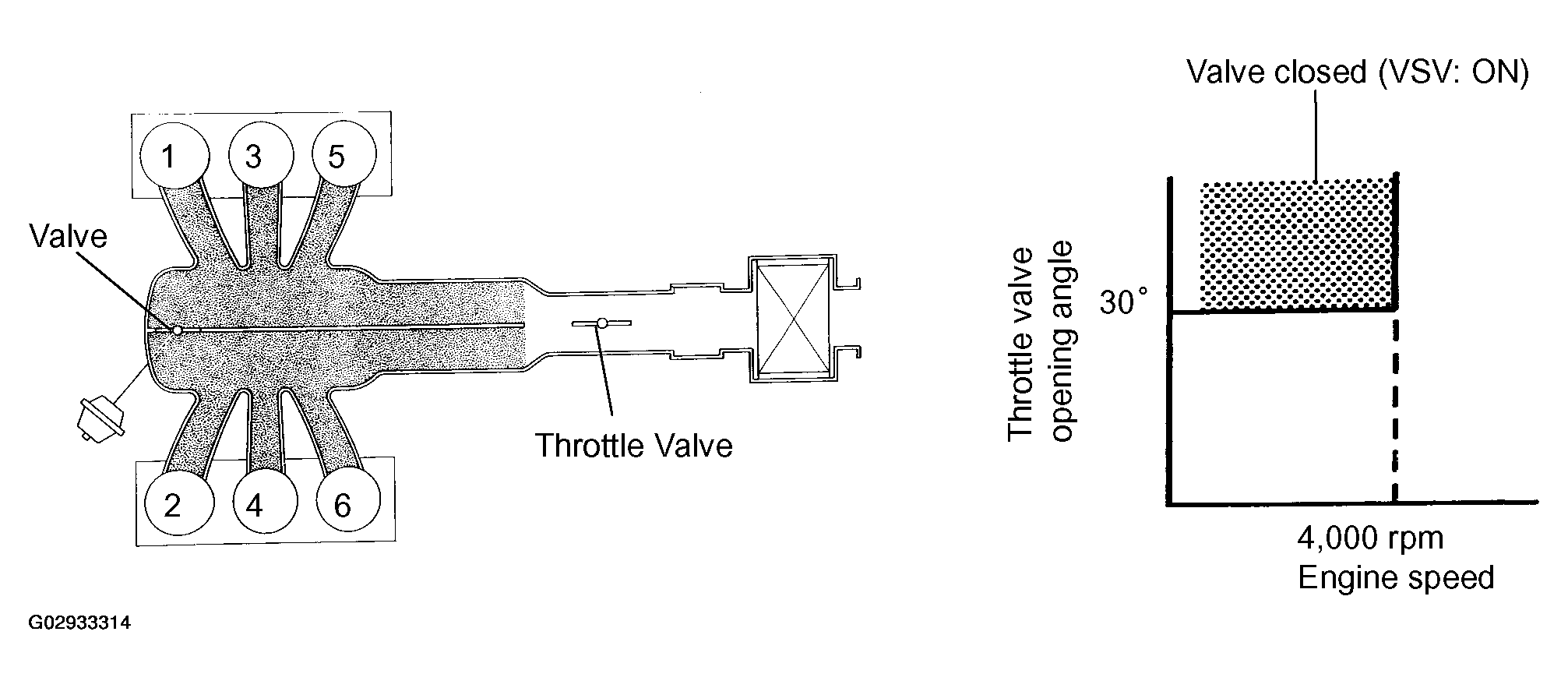

This circuit is opens and closes the Intake Air Control Valve in response to the engine load in order to increase the intake efficiency (ACIS: Acoustic Control Induction System).
When the engine speed is 4,000 rpm or less and the throttle valve opening angle is 30° or more, the ECM turns the VSV ON or OFF and operate the Intake Air Control Valve.
