Fuel Tank Assembly: Components

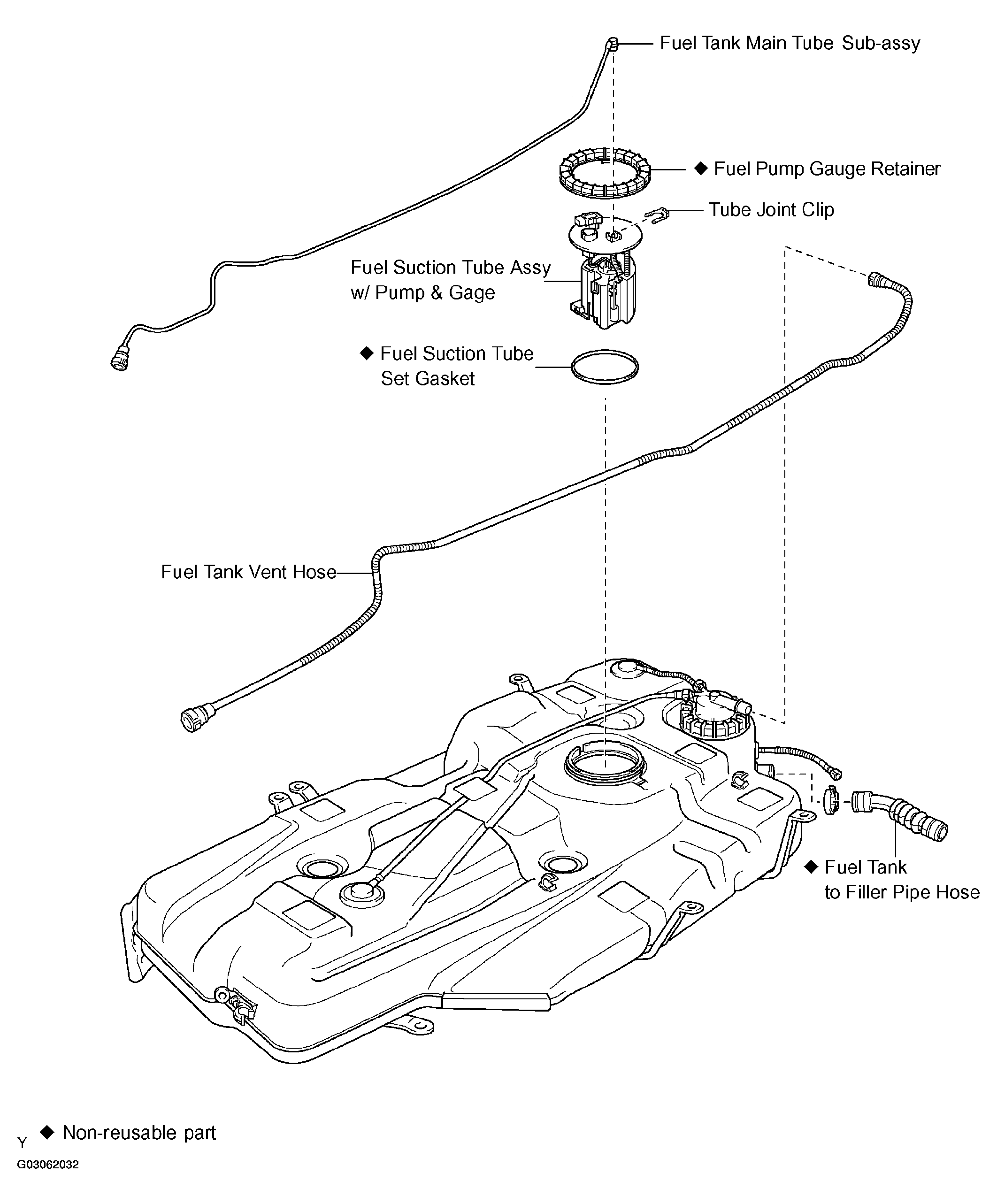

Fig 1: Exploded View Of Fuel Tank Assembly (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

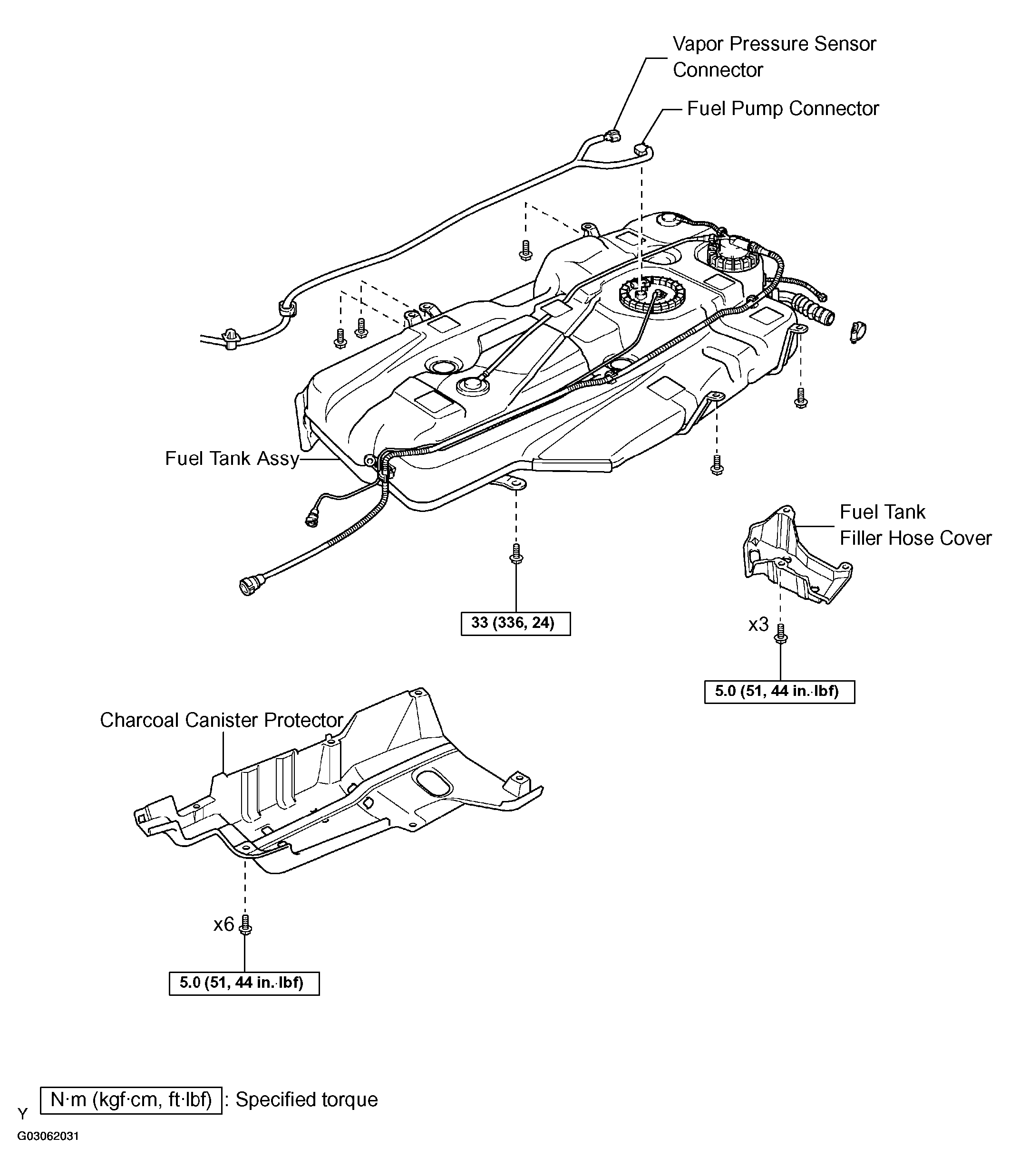

Fig 2: Exploded View Of Fuel Tank Assembly (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
