Automatic Transmission Assembly: Components

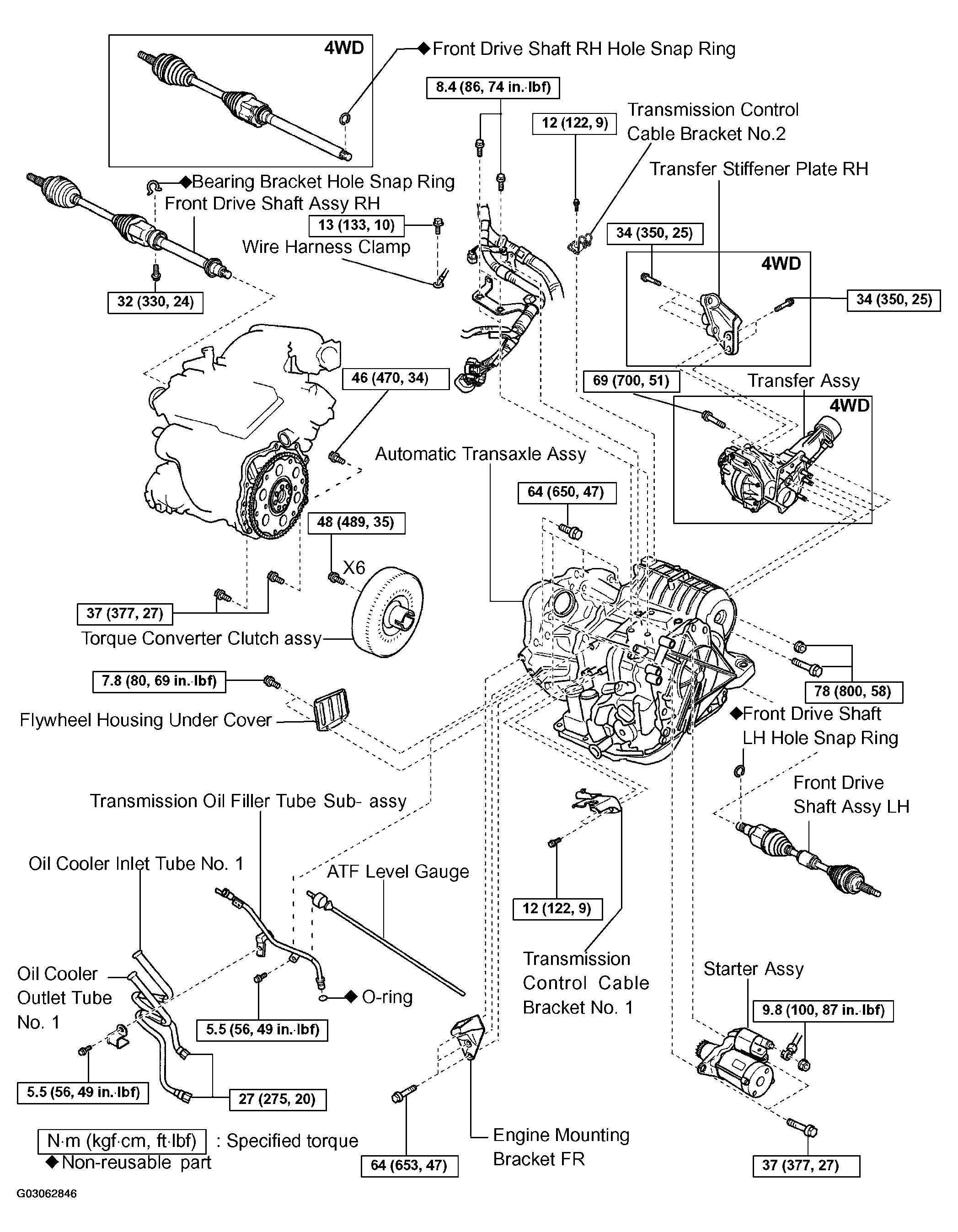

Fig 1: Locating Automatic Transaxle Assembly Components (U151E/U151F)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
