Automatic Transmission Transmission Revolution Sensor: Replacement

REMOVE BATTERY
REMOVE AIR CLEANER ASSY
REMOVE AIR CLEANER HOSE NO. 1
REMOVE AIR CLEANER INLET NO. 2
REMOVE AIR CLEANER BRACKET
REMOVE AIR CLEANER INLET NO. 1
REMOVE TRANSMISSION REVOLUTION SENSOR (NT SENSOR)
1. Disconnect the transmission revolution sensor connector.
2. Remove the bolt and transmission revolution sensor.

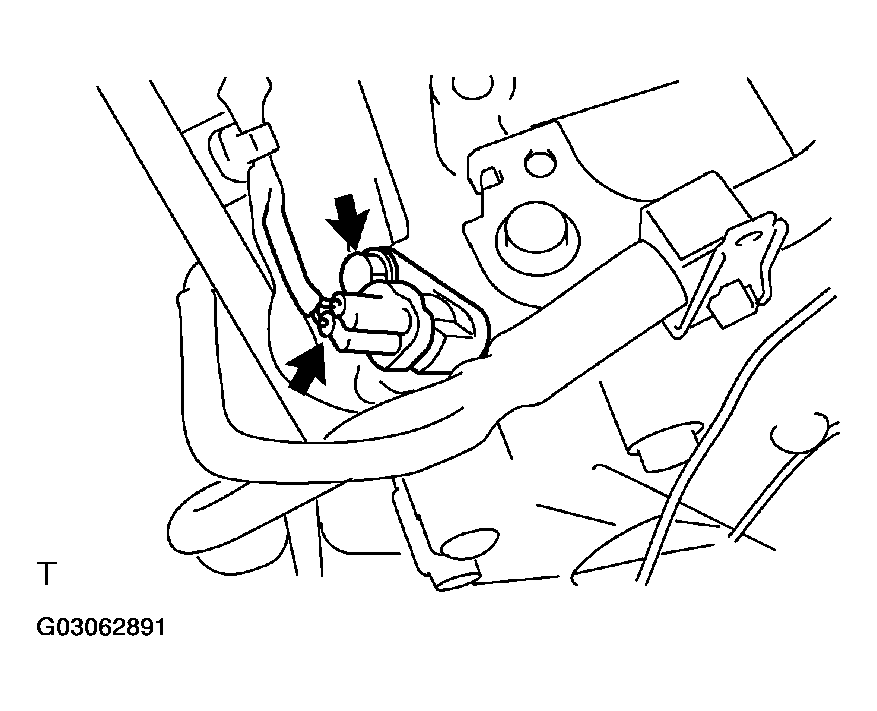

Fig 1: Removing Transmission Revolution Sensor (NT Sensor)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION REVOLUTION SENSOR (NC SENSOR)
1. Disconnect the transmission revolution sensor connector.
2. Remove the bolt and transmission revolution sensor.

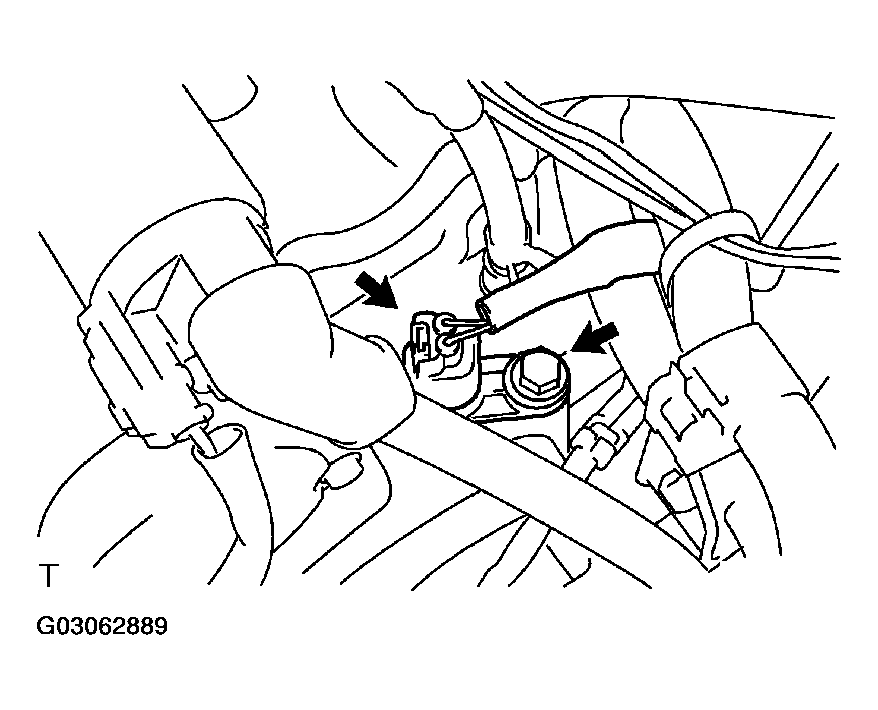

Fig 2: Removing Transmission Revolution Sensor (NC Sensor)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION REVOLUTION SENSOR (NC SENSOR)
1. Coat an O-ring with ATF.
2. Install the transmission revolution sensor with the bolt.
  Torque: 11 N.m (115 kgf.cm, 8 ft.lbf)

  NOTE: Make sure of the manufacturer's name.
3. Connect the transmission revolution sensor connector.
Fig 3: Installing Transmission Revolution Sensor (NC Sensor)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION REVOLUTION SENSOR (NT SENSOR)
1. Coat an O-ring with ATF.
2. Install the transmission revolution sensor with the bolt.
  Torque: 11 N.m (115 kgf.cm, 8 ft.lbf)

  NOTE: Make sure of the manufacturer's name.
3. Connect the transmission revolution sensor connector.
Fig 4: Installing Transmission Revolution Sensor (NT Sensor)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER INLET NO. 1
INSTALL AIR CLEANER BRACKET
INSTALL AIR CLEANER INLET NO. 2
INSTALL AIR CLEANER HOSE NO. 1
INSTALL AIR CLEANER ASSY
INSTALL BATTERY
CHECK ABS SPEED SENSOR SIGNAL
1. ABS WITH EBD SYSTEM (See page PRE-CHECK )
2. ABS WITH EBD & BA & TRAC VSC & SYSTEM (See PRE-CHECK )
