Manual Up/Down Function Does Not Operate On Driver Side: Wiring Diagram

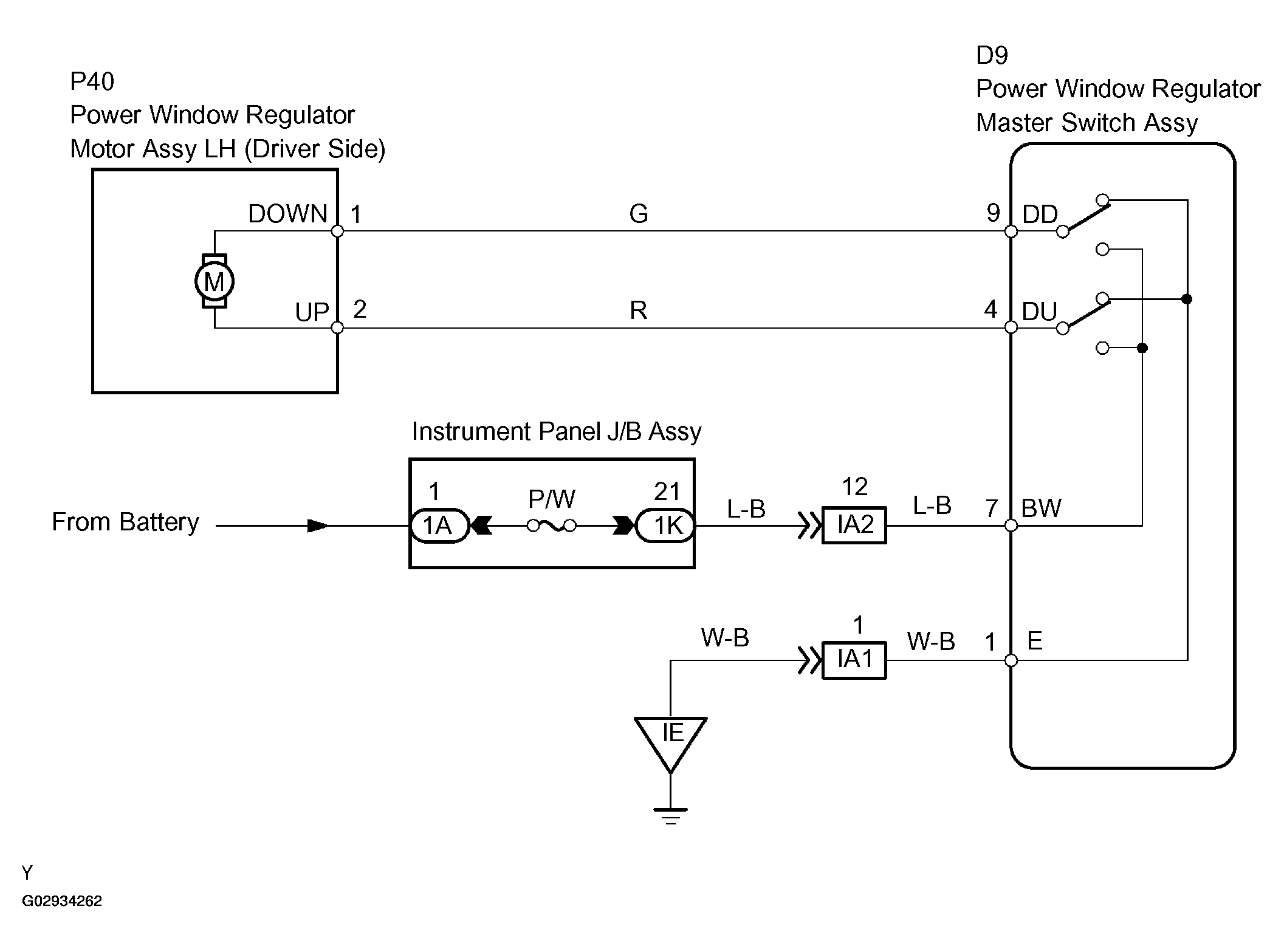

Fig 1: Power Window Control Drive Side (Manual Up/Down Function) Wiring Diagram
G02934262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
