Vehicle Lift And Support Locations

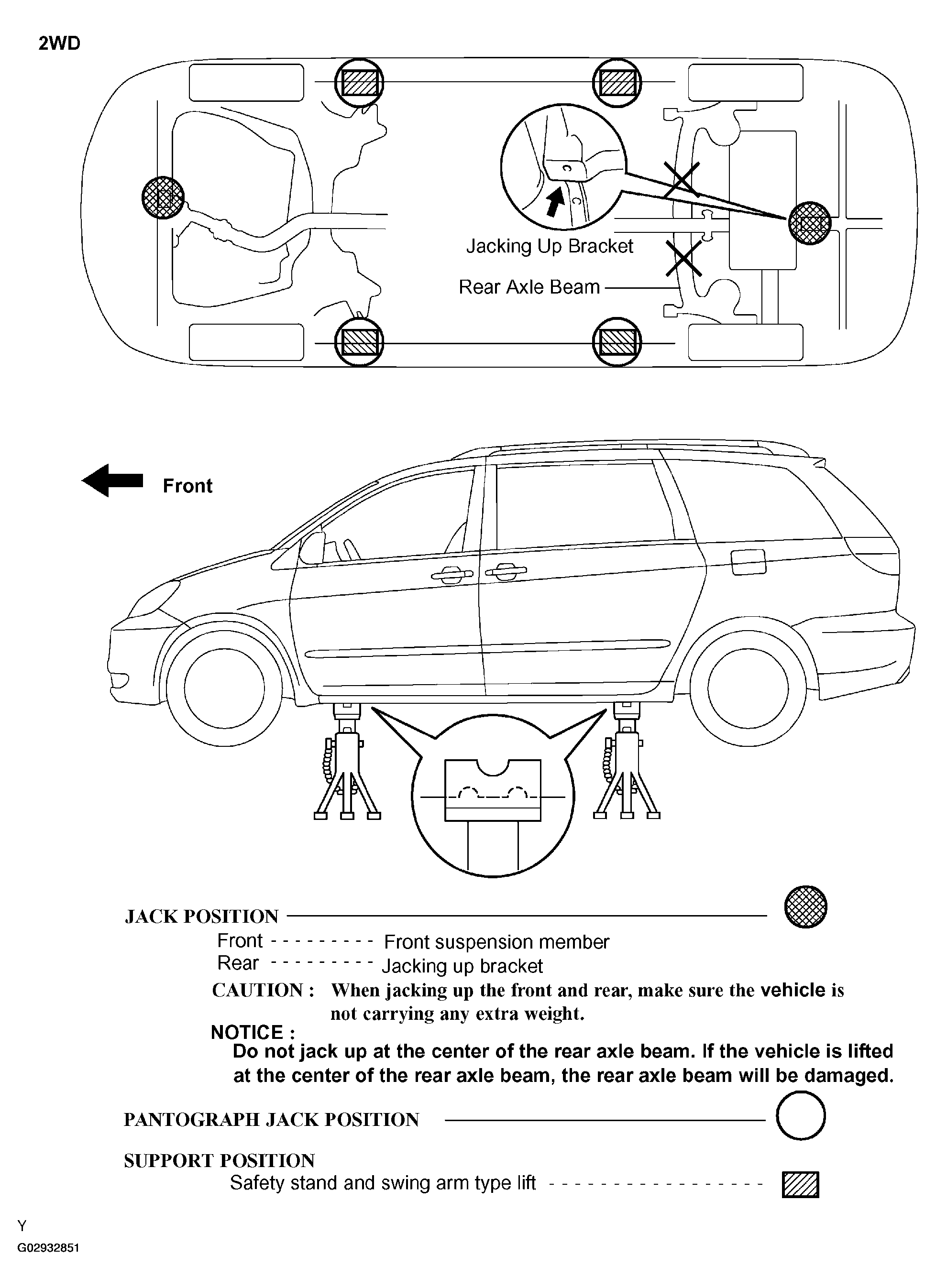

Fig 1: Identifying Vehicle Lift & Support Location (2WD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

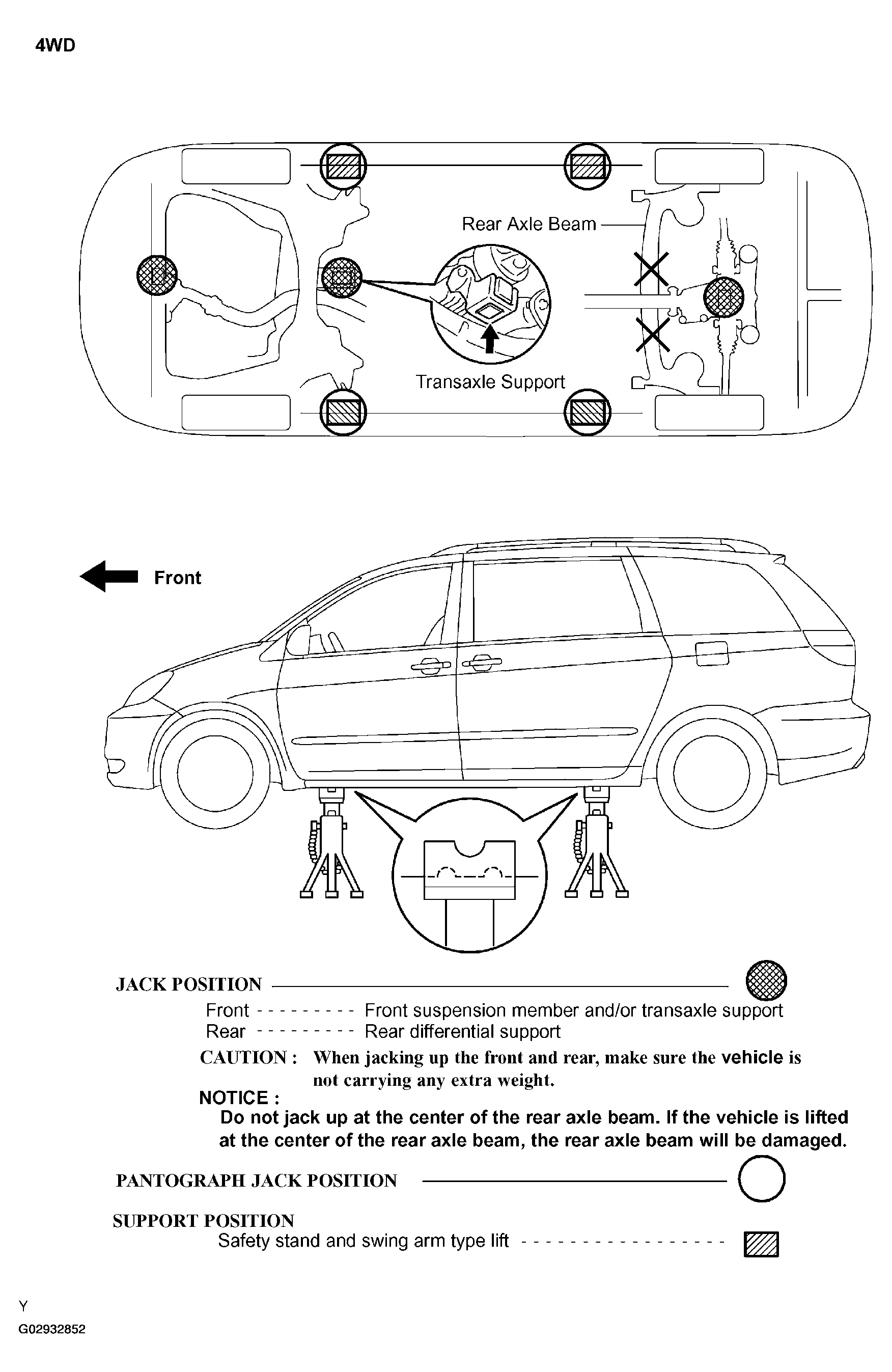

Fig 2: Identifying Vehicle Lift & Support Location (4WD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

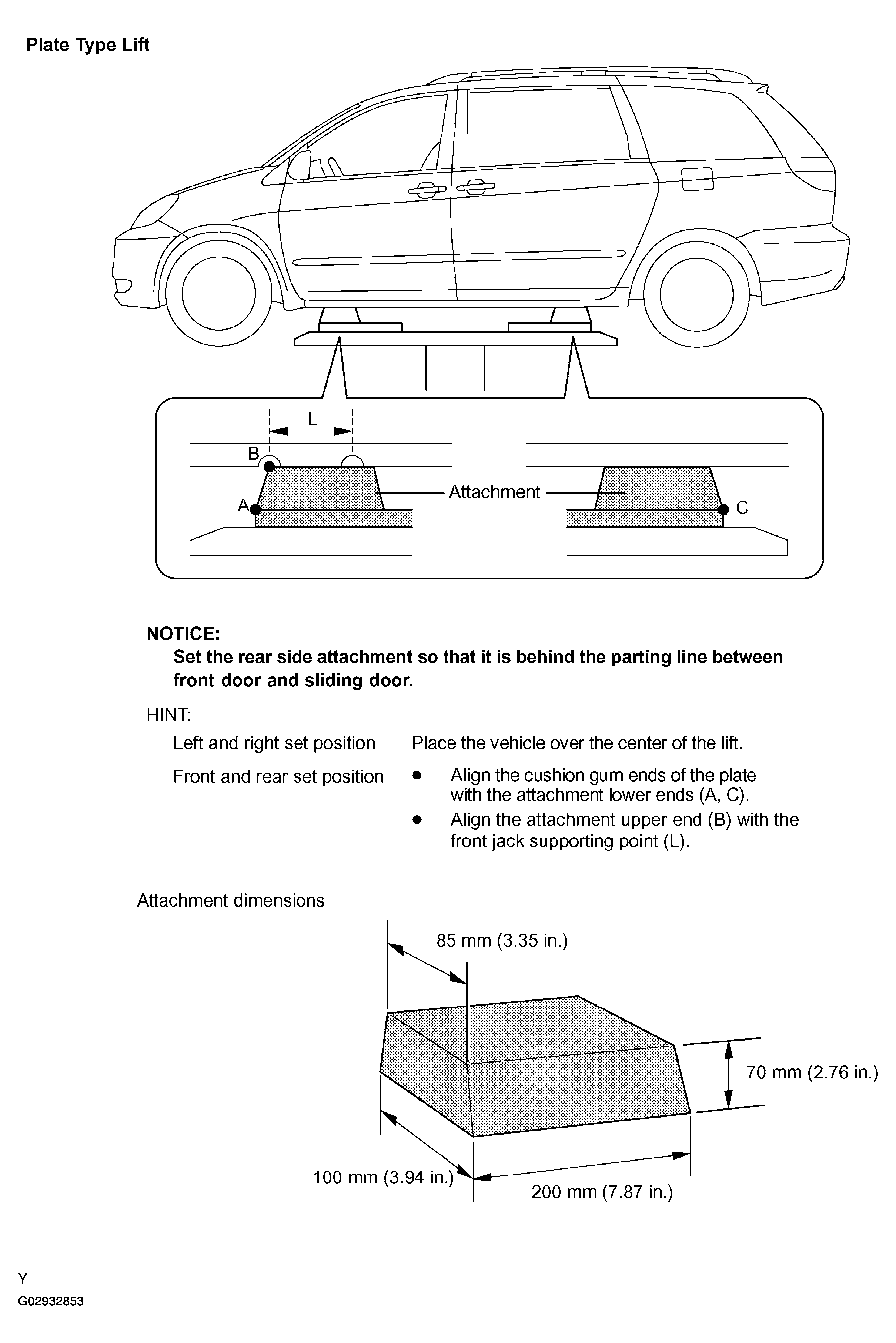

Fig 3: Identifying Vehicle Lift & Support Location (Plate Type Lift)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
