Automatic Transmission Shift Lever Assembly: Components

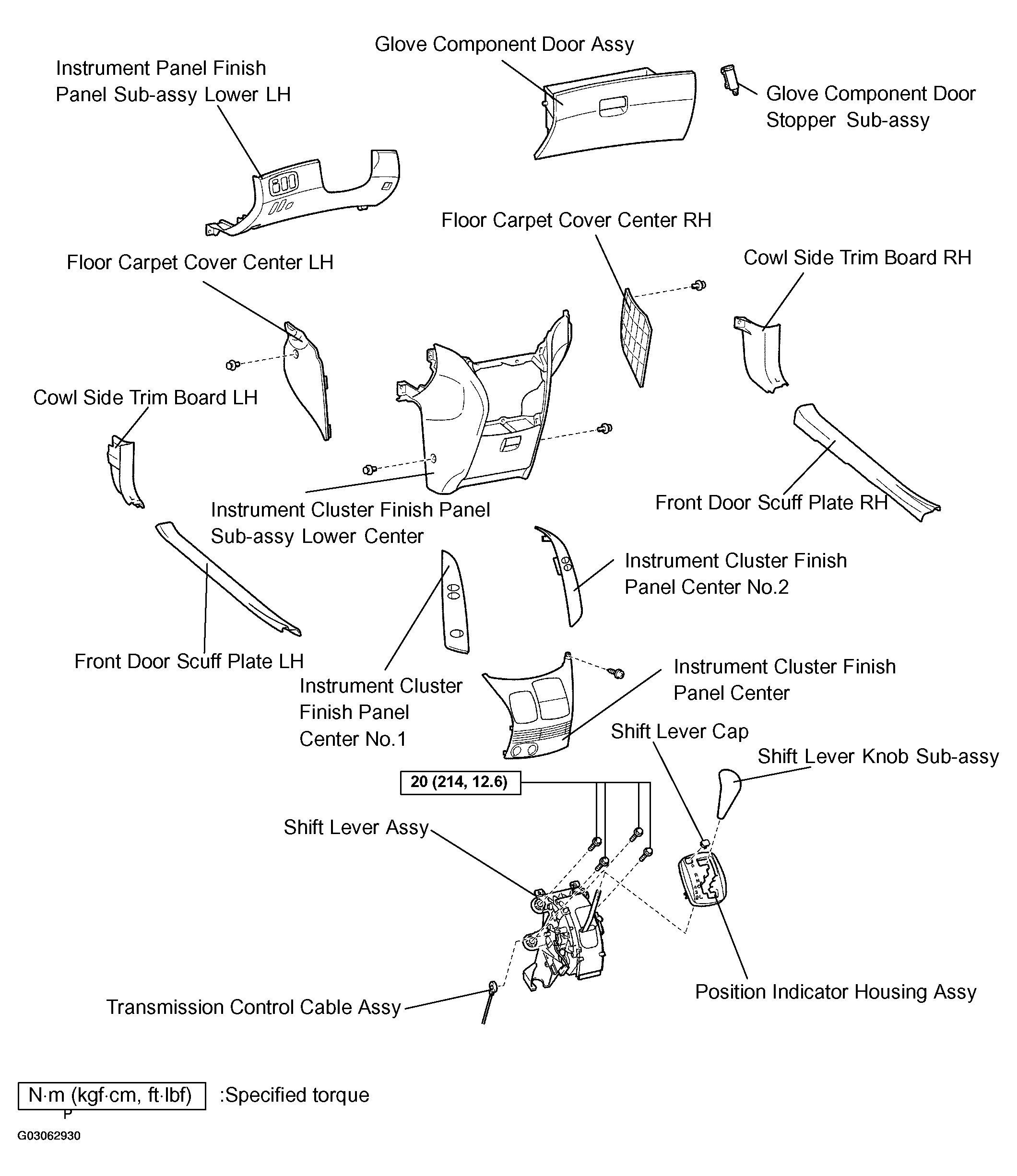

Fig 1: Exploded View Of Shift Lever Assembly Components (1 Of 2)
G03062930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

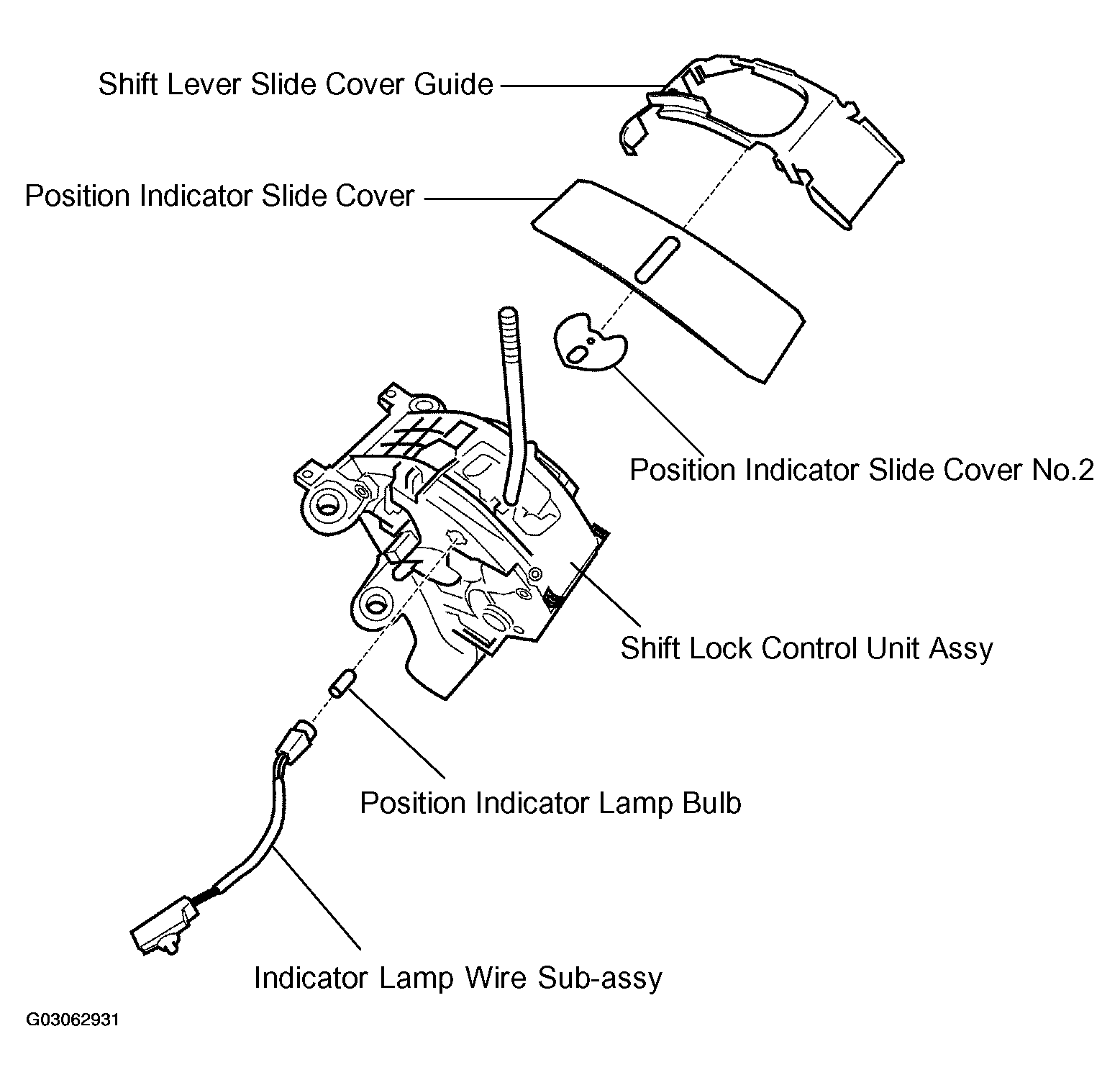

Fig 2: Exploded View Of Shift Lever Assembly Components (2 Of 2)
G03062931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
